Grundfos 96082955 - CRN 1-11 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,338.36
GRUNDFOSSKU: 96082955

Price:
Sale price$1,788.64 Regular price$3,127.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96082955 - CRN 1-11 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for high-pressure applications and is suitable for both water supply and process applications. The CRN 1-11 A-FGJ-A-V-HQQV features a compact design, making it easy to install in tight spaces while ensuring optimal flow rates and energy efficiency.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5700395176933
Applications Industrial applications
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Gross weight 56.1 lb
Impeller Stainless steel
Impellers 11
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 323.8 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 41.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 HP
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 1
Pump 1.5 HP
Pump housing Stainless steel
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version A
Pumped liquid Water
Rated flow 9.69 US gpm
Rated flow 2 9.69 US gpm
Rated head 244.4 ft
Rated head 2 244.4 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 11
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

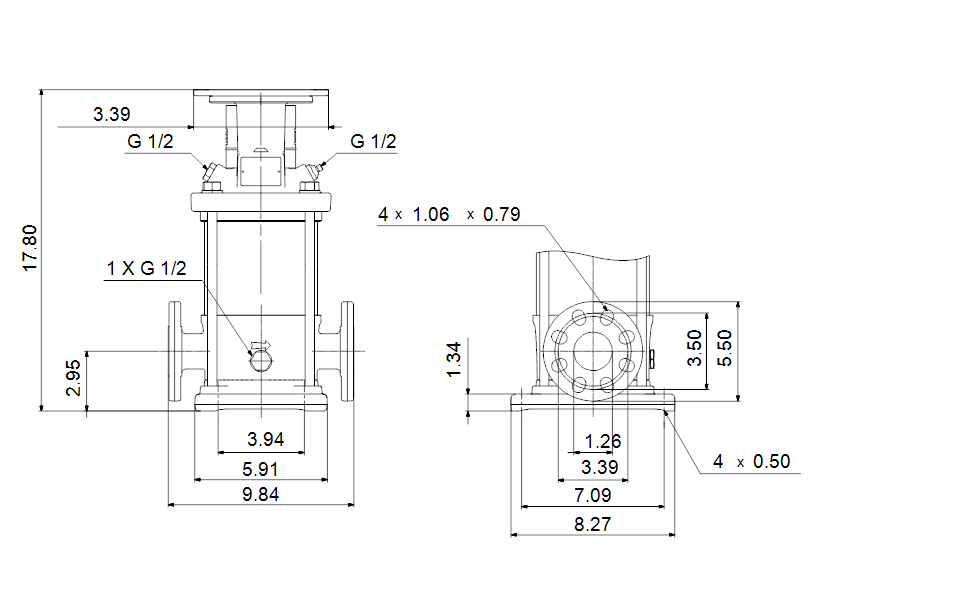

Dimensional Drawing
