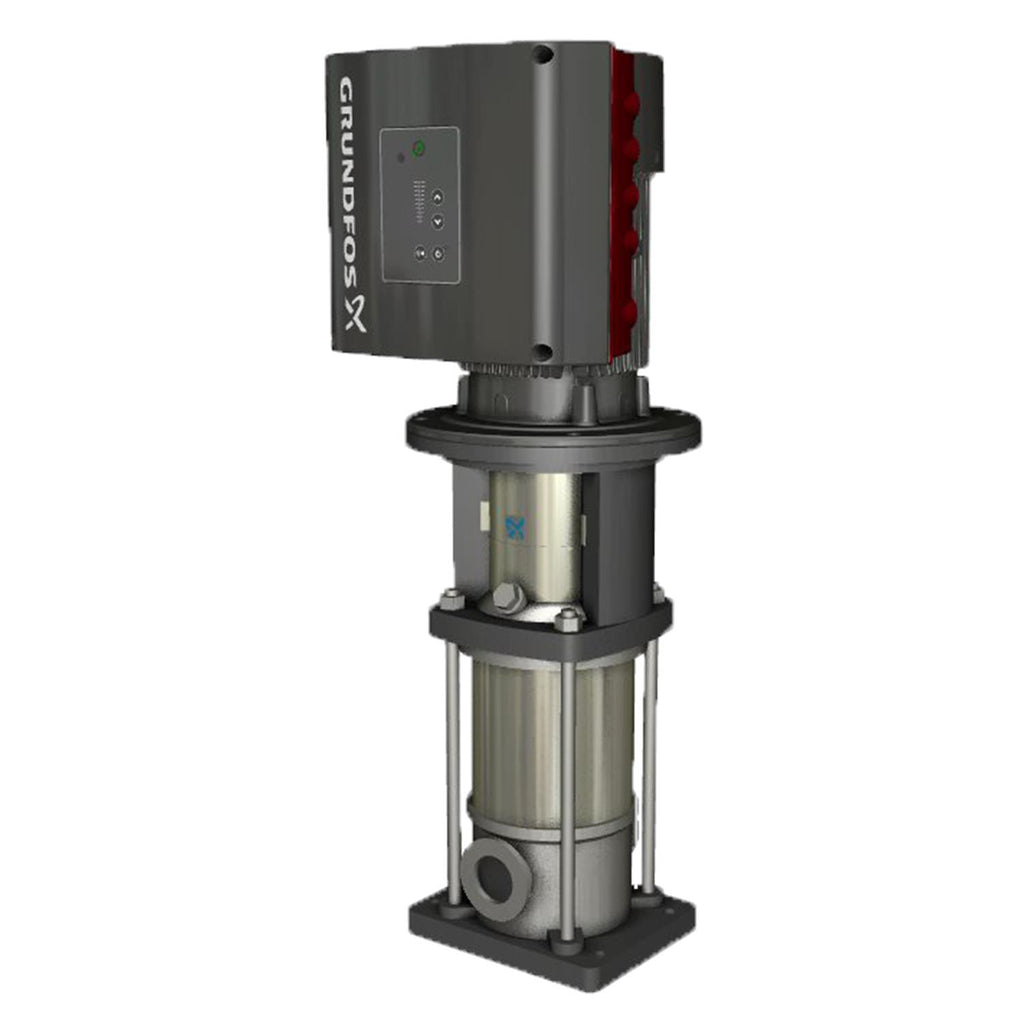

Grundfos 98924304 - CRIE 5-3 P-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98924304

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98924304 (CRIE 5-3 P-CA-A-E-HQQE) is a vertical, multistage centrifugal pump designed for industrial fluid transfer and pressure-boosting applications, suitable for technicians and maintenance teams who service high-pressure systems.

Key features

  • Manufactured by Grundfos for reliable industrial performance
  • Vertical multistage centrifugal design for compact, high-pressure service
  • Inline configuration offers space-saving installation and consistent pressure delivery

Applications

Typical uses include high-pressure water supply, boiler feed, pressure boosting, and general industrial fluid handling where vertical multistage centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98924304

EAN 5712603660998
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499011
Connect code CA
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT100
Frequency converter Built-in
Function Module FM200 - Standard
Gross weight 53.4 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 99.09 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at full load 1 0.852
Motor standard IEC
Motor type 80A
Net weight 47.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.99
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3350 rpm
Pump version P
Pumped liquid Water
Rated current 4.70-3.90 A
Rated flow 30.4 US gpm
Rated head 66.28 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard IEC
Type 80A
Type of connection FlexiClamp
Version P

Motor Curves

Dimensional Drawing

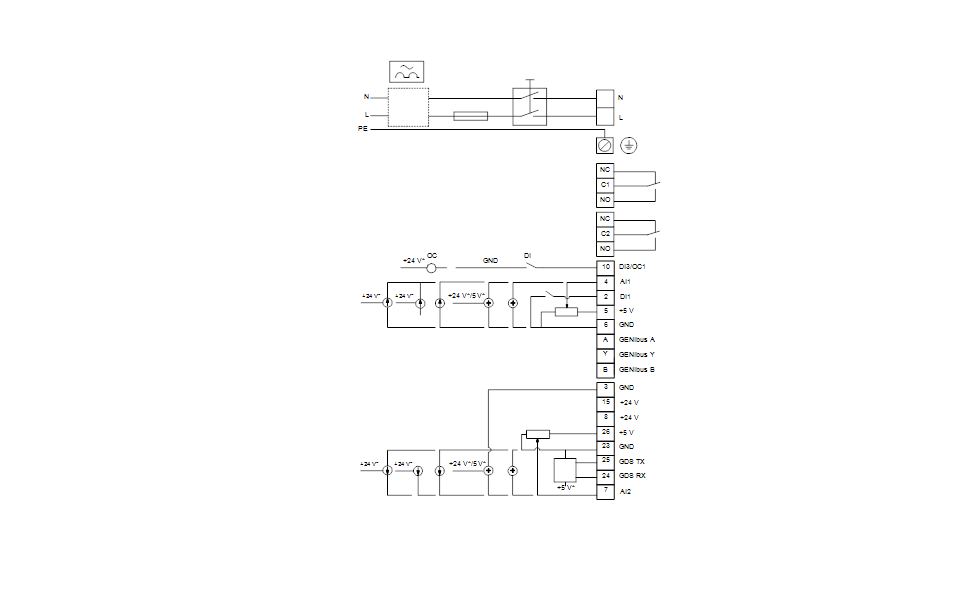

DWiring Diagram
