Grundfos 91127370 - CRI 5-9 P-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91127370

Price:
Sale price$5,190.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos 91127370 - CRI 5-9 P-P-A-V-HQQV is a vertical, multistage centrifugal pump designed for industrial fluid transfer and high-pressure boosting. It suits service technicians and facility maintenance teams replacing inline or vertical multistage units.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Designed as a vertical, in-line multistage centrifugal unit for high-pressure performance
  • Service-special configuration simplifies repair and parts replacement for faster downtime recovery

Applications

Typical uses include boiler feed, pressure boosting, industrial process circulation, and other high-pressure in-line multistage pumping duties in commercial and industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91127370

EAN 5700395450262
Approvals CE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 49.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 194 °F
Maximum head 299.2 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 34.5 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version P
Rated flow 30.4 US gpm
Rated head 222.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard NEMA
Type of connection PJE
Version P

Motor Curves

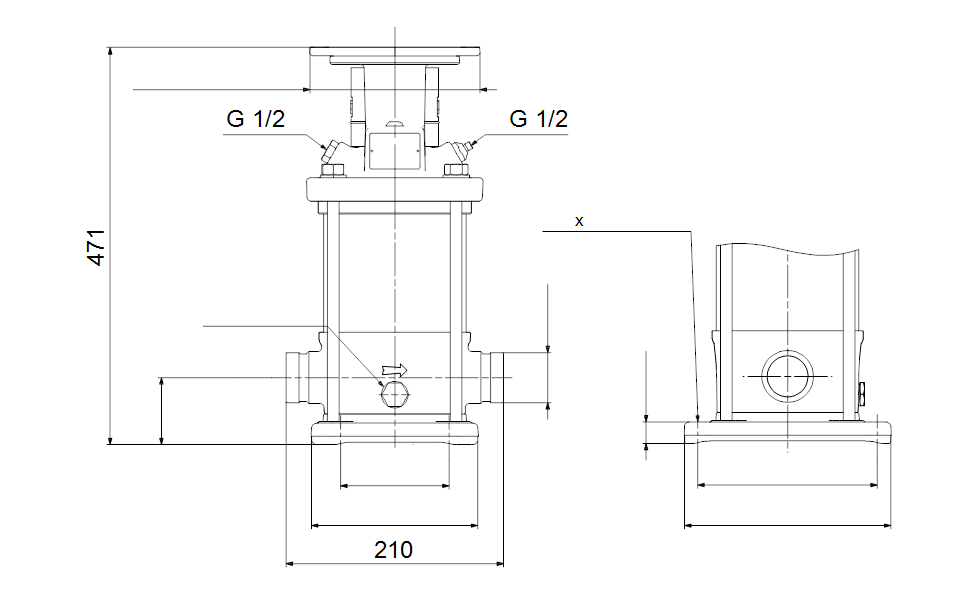

Dimensional Drawing
