Grundfos 92595887 - CRI 5-20 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GrundfosSKU: 92595887

Price:
Sale price$10,826.39
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRI 5-20 A-P-A-E-HQQE · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI7.5HP230/460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 92595887 (CRI 5-20 A-P-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 30.4US gpm at 486.9ft. Rated 230/460V, 3.0-Phase, 60 Hz.

Power
7.5HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
30.4US gpm
Max Head
486.9ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 5-20 A-P-A-E-HQQE
Series: CRI
Model Code: CRI 5-20 A-P-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 50
Technical Specifications
Model Number 92595887
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Power 7.5HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3530rpm
Pump Speed 3467rpm
Full Load Current 17,3/8,67A
Motor Type WEG
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 89,5%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 30.4US gpm
Nominal Head 486.9ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection DN 32
Outlet Connection DN 32
Pipe Pressure Rating PN 50
Pipe Standard PJE
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CURUS
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 5-20 A-P-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715116814285
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 213TC
Frequency converter NONE
Gross weight 312.0 lb
IE efficiency IE3 89
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 652.3 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.895
Motor standard NEMA
Motor type WEG
Net weight 200.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.89
Pressure rating for connection PN 50
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 17.3/8.67 A
Rated flow 30.4 US gpm
Rated head 486.9 ft
Rated power - P2 5.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 20
Standard NEMA
Starting current 7.6
Type WEG
Type of connection PJE
Version A

Motor Curves

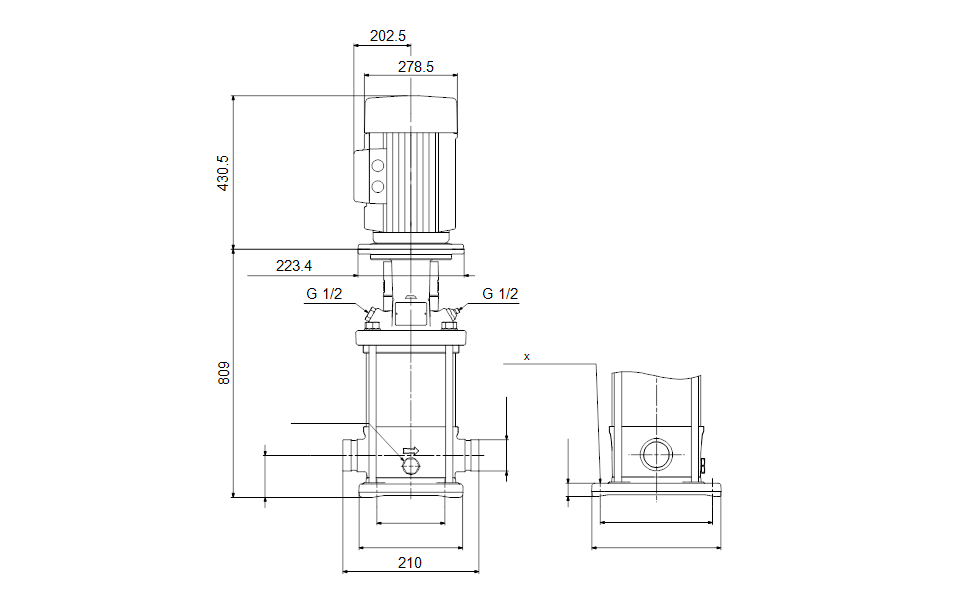

Dimensional Drawing

DWiring Diagram
