Grundfos 91128702 - CRI 5-16 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91128702

Price:
Sale price$6,354.17
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 91128702 - CRI 5-16 A-P-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial fluid handling and high-pressure in-line applications. It suits technicians and facilities teams replacing service or shop-stock units.

Key features

  • Manufactured by Grundfos for industrial and service applications
  • Vertical, multistage centrifugal configuration for high-pressure in-line performance
  • Compact design offers reliable pressure boosting and straightforward maintenance

Applications

Pressure boosting, high-pressure water systems, boiler feed, industrial process circulation, and in-line multistage pumping tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91128702

EAN 5700396484150
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Flange size for motor 182TC
Frequency converter NONE
Gross weight 64.7 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 520 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 46.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 30.4 US gpm
Rated head 384.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 16
Standard NEMA
Type of connection PJE
Version A

Motor Curves

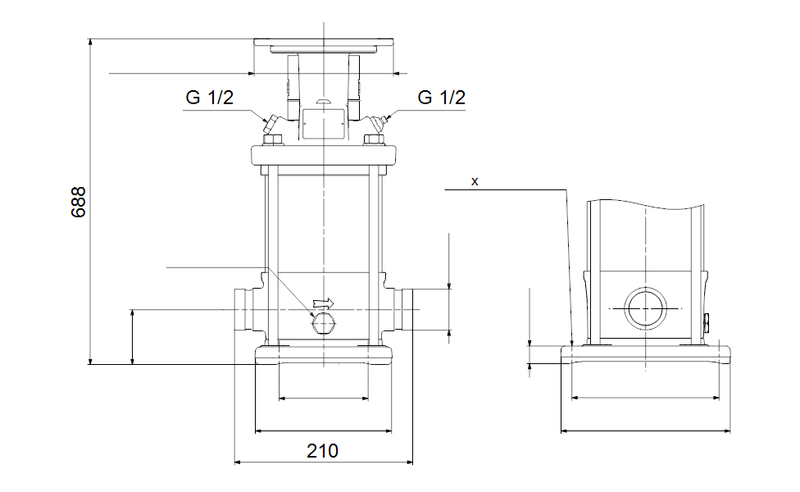

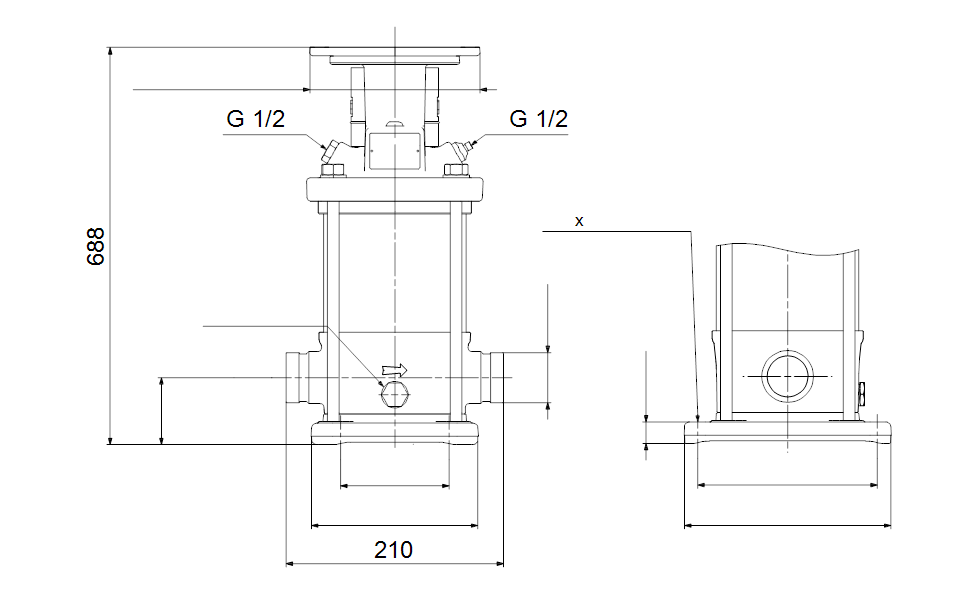

Dimensional Drawing
