Grundfos 91127841 - CRI 3-17 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91127841

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 91127841 is a vertical, multistage centrifugal pump assembly designed for industrial and commercial fluid transfer. It suits technicians and service professionals replacing or repairing in-line high-pressure systems.

Key features

  • Vertical multistage centrifugal design for compact, space-saving installations
  • Suitable for high-pressure and in-line applications as indicated by service and shop tags
  • Delivers steady pressure and flow for reliable system performance and serviceability

Applications

Typical uses include boiler feed, pressure boosting, water transfer, and other high-pressure multi-stage pumping tasks in commercial and light industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91127841

EAN 5700395821123
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Flange size for motor 182TC
Frequency converter NONE
Gross weight 56.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 533.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 41.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 15.4 US gpm
Rated head 397 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 17
Standard NEMA
Type of connection PJE
Version A

Motor Curves

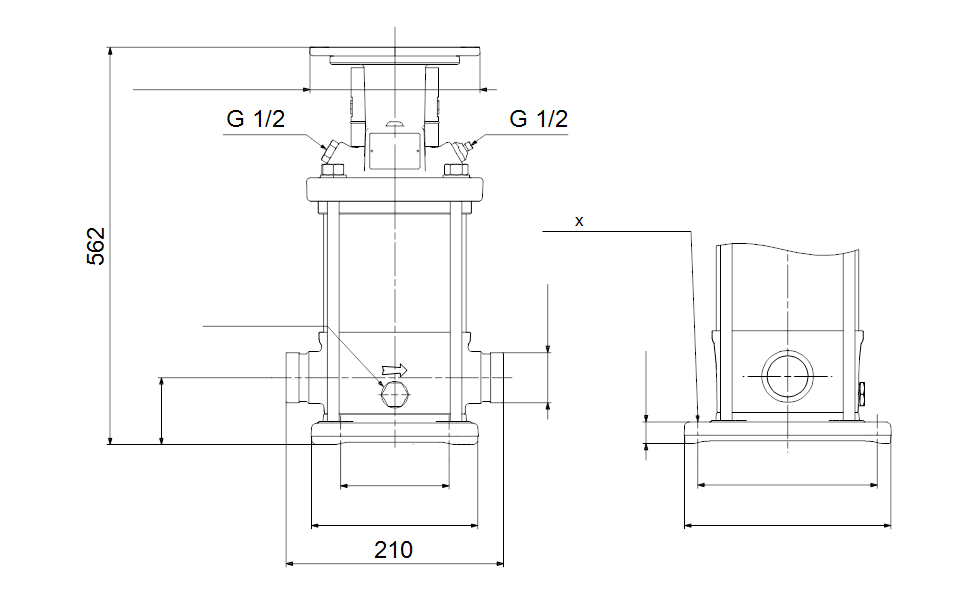

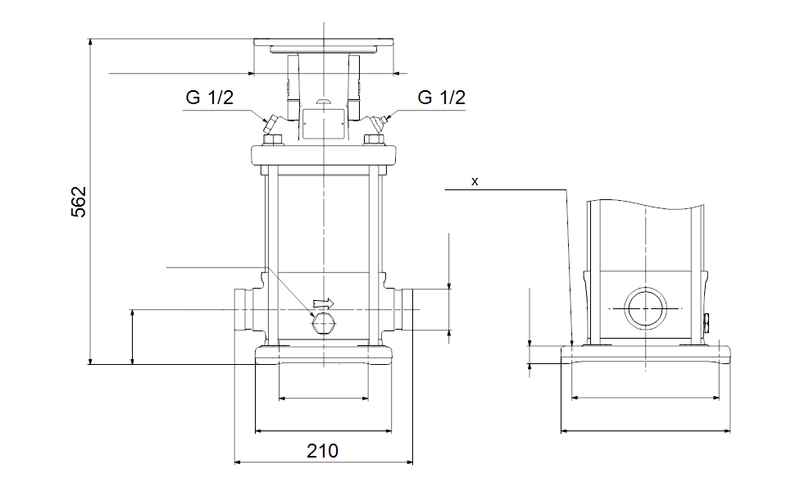

Dimensional Drawing
