Description
The Grundfos 96083400 (CRI 3-12 A-CA-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 15.4US gpm at 272.3ft. Rated 208-230/460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96083400 |
| Product Series | CRI |
| Series Description | Vertical Multistage Centrifugal Pump — Stainless Steel |
| Power | 2HP |
| Voltage | 208-230/460V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3490rpm |
| Pump Speed | 3452rpm |
| Full Load Current | 5.3-5/2,5A |
| Motor Type | BALDOR |
| Insulation Class | B |
| Protection Class (IP) | IP54 Dust/Splashing |
| Nominal Flow | 15.4US gpm |
| Nominal Head | 272.3ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | DN 32 |
| Outlet Connection | DN 32 |
| Pipe Pressure Rating | PN 25 |
| Pipe Standard | FLEXICLAMP |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CURUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 208-230/460V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700395185980
- Applications
- Industrial applications
- Approvals
- CURUS
- Approvals for drinking water
- NSF/ANSI 61
- Bearing 1
- SIC
- Built-in motor protection
- NONE
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- CA
- Connection
- FlexiClamp
- Connection 2
- DN 32
- Connection 3
- DN 32
- Connection 4
- PN 25
- Cooling
- TEFC
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- 54 Dust/Splashing
- Flange size for motor
- 56C
- Frequency
- 60 HZ
- Frequency converter
- NONE
- Full load SF current
- 5,8-5,6/2,8 A
- Gross weight
- 92.5 lb
- Impeller
- Stainless steel
- Impellers
- 12
- Insulation
- B
- Insulation class (IEC 85)
- B
- Liquid max temp
- 120°C
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Material code
- A
- Material Pricing Group
- 30
- Max pressure at stated temp
- 363 psi / 250 °F
- Maximum ambient temperature
- 104 °F
- Maximum head
- 373.4 ft
- Maximum operating pressure
- 362.59 psi
- Maximum permissible operating pressure
- 25bar
- Model
- A
- Motor
- 56C
- Motor protec
- NONE
- Motor standard
- NEMA
- Motor type
- BALDOR
- n rpm
- 3490rpm
- Net weight
- 78.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- P2 HP
- 2 HP
- P2 kW
- 1.5kW
- Phase
- 3
- Power (P2) required by pump
- 2 HP
- Pressure rating
- PN 25
- Pressure rating for connection
- PN 25
- Product family
- CRI 3
- Pump
- 2 HP
- Pump housing
- Stainless steel
- Pump inlet
- DN 32
- Pump outlet
- DN 32
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 5.3-5/2,5 A
- Rated flow
- 15.4 US gpm
- Rated flow 2
- 15.4 US gpm
- Rated head
- 272.3 ft
- Rated head 2
- 272.3 ft
- Rated power - P2
- 2 HP
- Rated speed
- 3490 rpm
- Rated voltage
- 3 x 208-230/460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Shaft seal
- HQQE
- Size of inlet connection
- DN 32
- Size of outlet connection
- DN 32
- Stages
- 12
- Standard
- NEMA
- Type
- BALDOR
- Type of connection
- FlexiClamp
- Version
- A

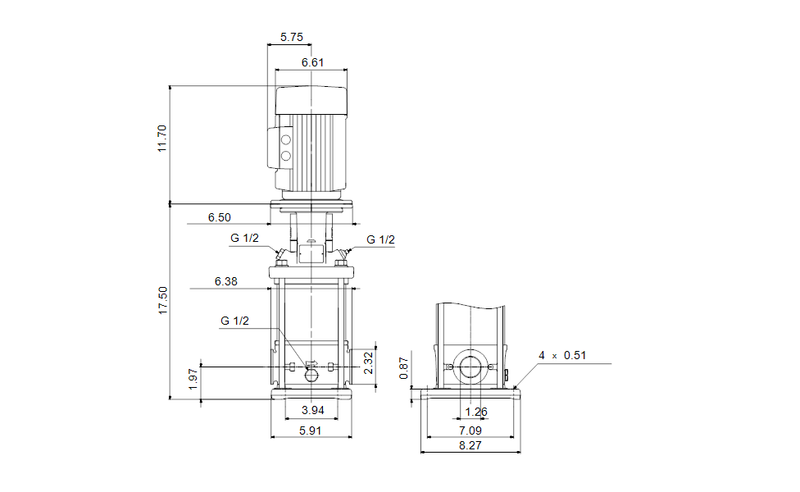

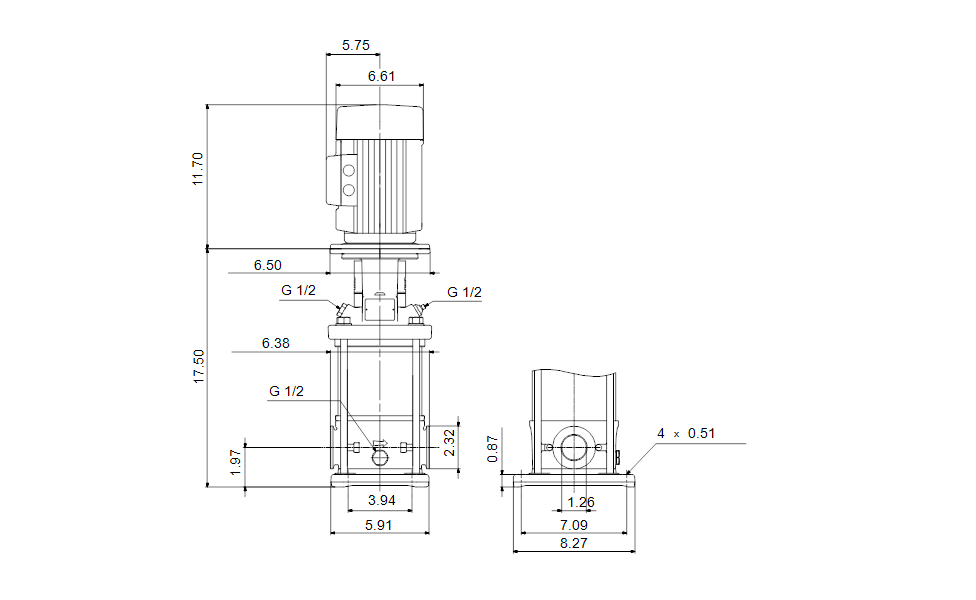

Dimensional Drawing
Wiring Diagram
