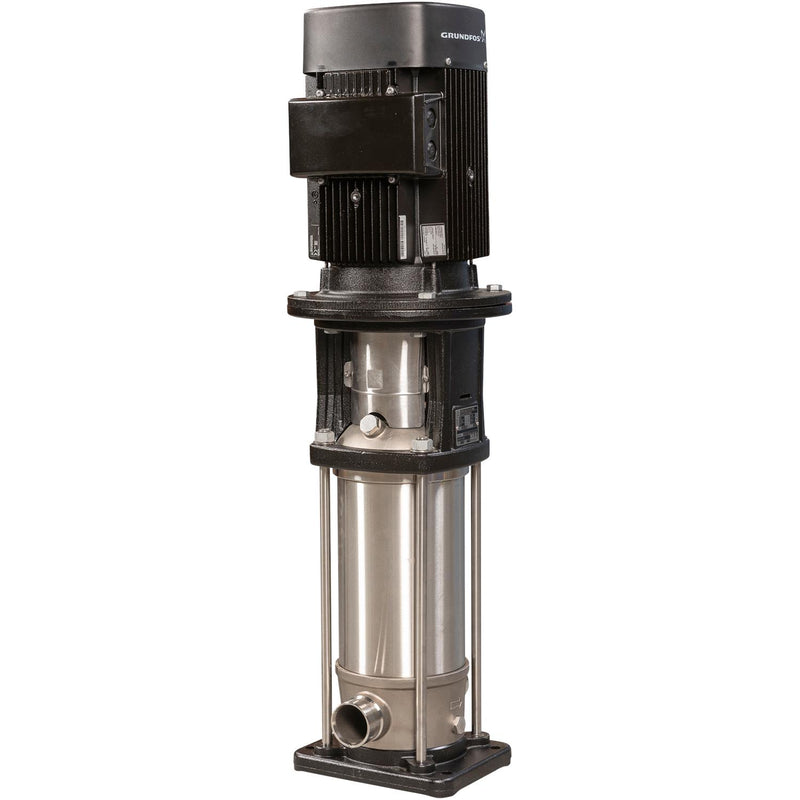

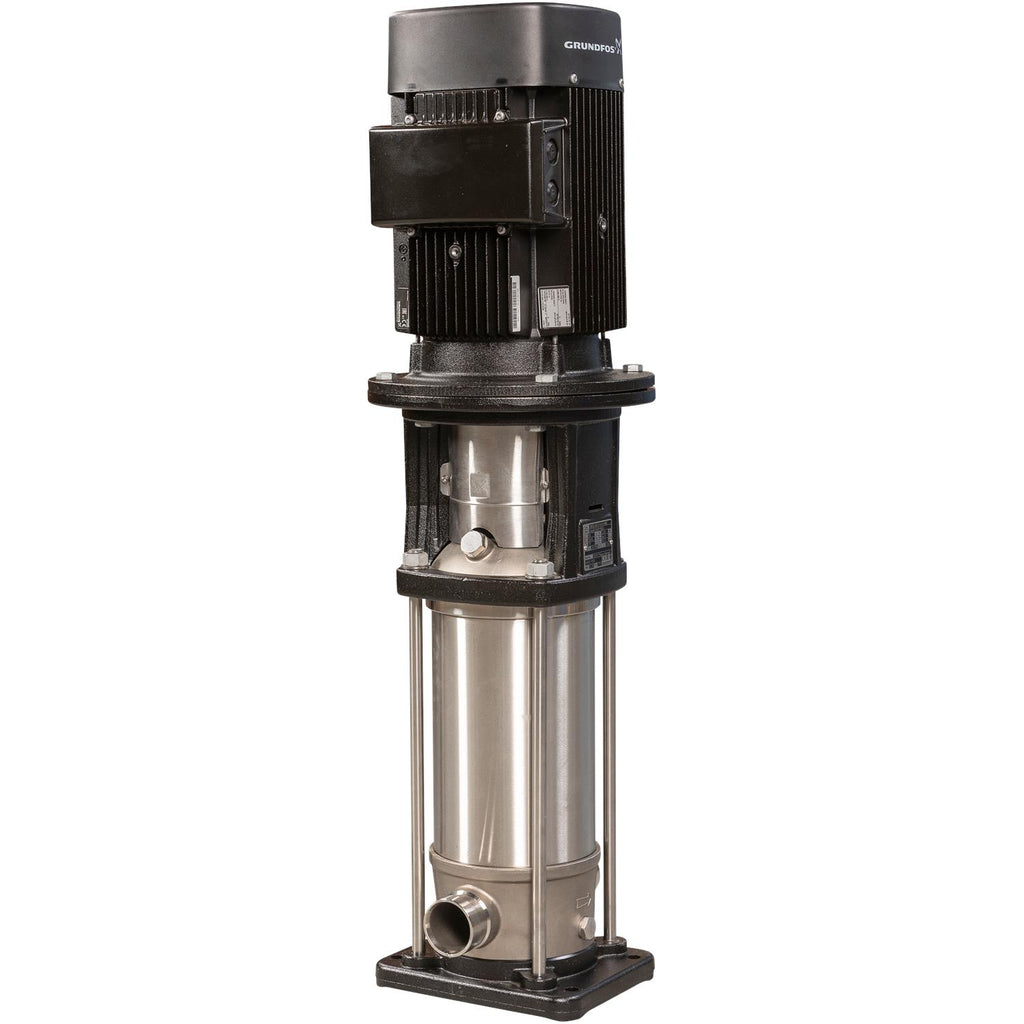

Grundfos 96500457 - CRI 20-12 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96500457

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 96500457 - CRI 20-12 A-P-A-V-HQQV is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling. It suits systems requiring high pressure, inline installation, and reliable multistage performance.

Key features

  • Manufactured by Grundfos for industrial applications and built to fit CRI multistage product lines
  • Vertical, in-line multistage centrifugal design for high-pressure delivery and compact footprint
  • Delivers stable flow and pressure control for extended runtime and reduced maintenance

Applications

Typical uses include high-pressure water supply, boiler feed, pressure boosting, irrigation, and industrial process circulation where a vertical multistage centrifugal pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96500457

EAN 5700396202204
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 408.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 584 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.4-92.3 %
Motor efficiency at 3/4 load 92.4-92.7 %
Motor efficiency at full load 1 91.9-91.9 %
Motor standard IEC
Motor type 160MD
Net weight 346.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.87
Pressure rating for connection PN 50
Pump 15 kW
Pump speed on which pump data are based 2923 rpm
Pump version A
Pumped liquid Water
Rated current 48
Rated flow 92.5 US gpm
Rated head 468.2 ft
Rated power - P2 15 kW
Rated speed 2930-2950 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard IEC
Starting current 660-780 %
Terminal box position 6
Type 160MD
Type of connection PJE
Version A

Motor Curves

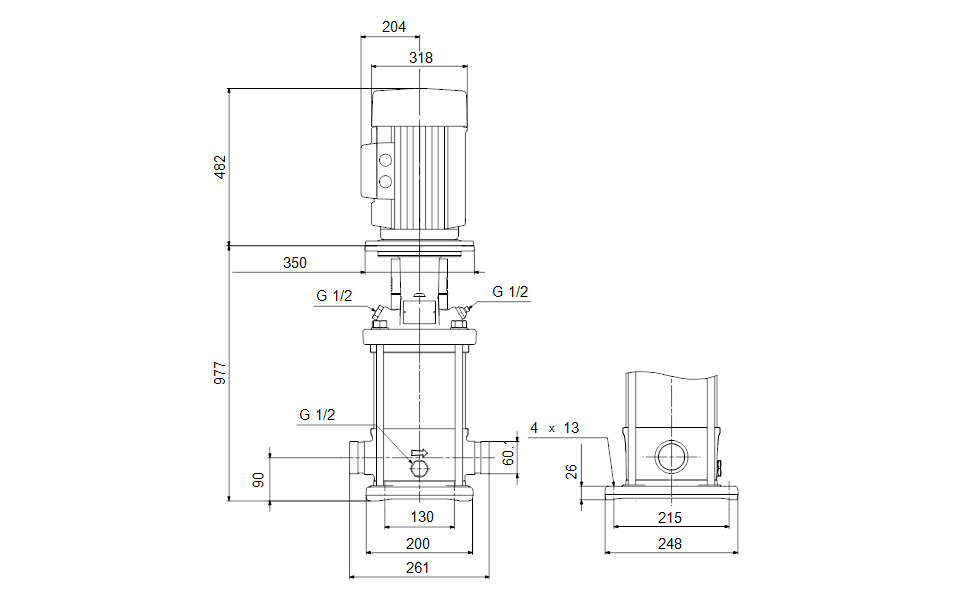

Dimensional Drawing

DWiring Diagram
