Grundfos 96745362 - CRI 1S-7 A-CX-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96745362

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CRI 1S-7 A-CX-A-E-HQQE is a vertical, inline multistage centrifugal pump designed for high-pressure liquid transfer and pressurization. Typical users include industrial maintenance and service technicians replacing or repairing high-pressure inline pumps.

Key features

  • Vertical multistage inline design with inlet and outlet on the same level for compact installations
  • Wetted parts in stainless steel for corrosion resistance and cleaner fluid handling
  • Tri-clamp pipe connections and rigid split coupling for straightforward serviceability

Applications

Suitable for high-pressure fluid transfer, boiler feed, process circulation, and other industrial inline multistage applications where stainless wetted components are preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96745362

EAN 5700838401561
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 40.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 195.5 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 29.1 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3485 rpm
Pump version A
Rated flow 4.84 US gpm
Rated head 131.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard NEMA
Type of connection TriClamp
Version A

Motor Curves

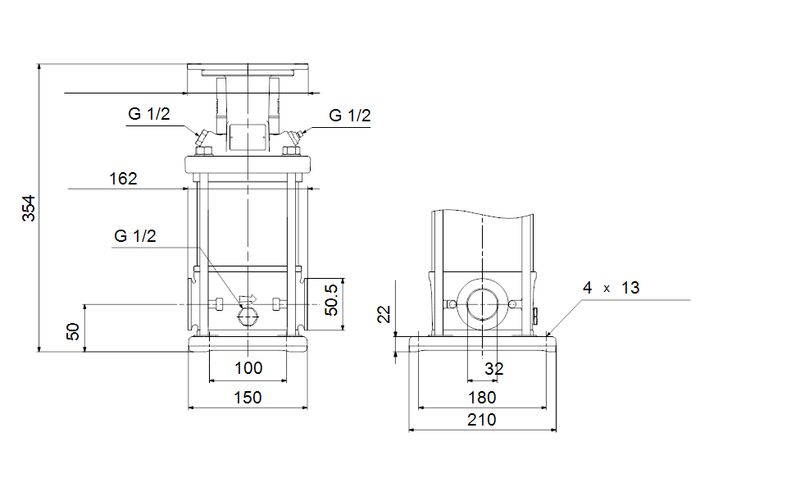

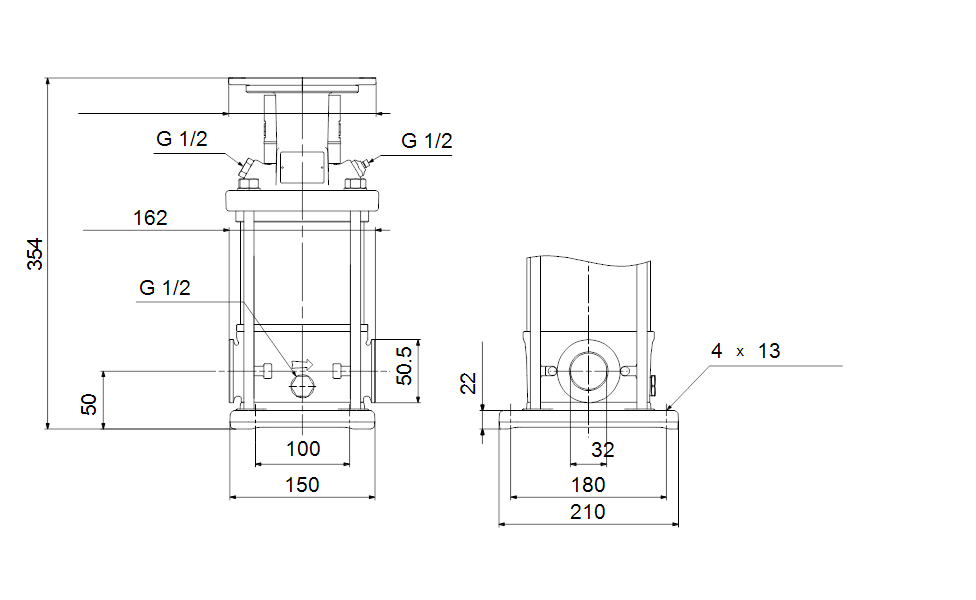

Dimensional Drawing
