Grundfos 99370029 - CRI 1S-33 A-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99370029

Price:
Sale price$9,044.44
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99370029 - CRI 1S-33 A-CA-A-E-HQQE is a vertical multistage centrifugal pump designed for inline, high-pressure applications and replacement service needs; it is typically used by maintenance technicians and facilities managers in industrial and commercial systems.

Key features

  • Multistage centrifugal design for sustained high-pressure performance
  • Vertical inline configuration saves floor space and simplifies piping
  • Engineered for service and replacement situations to restore system capacity

Applications

Common uses include boiler feed, pressure boosting, industrial process water, and other closed-loop or high-pressure circulation systems where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99370029

EAN 5713827992834
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 80.4 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 630.9 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.54
Model A
Motor FT100
Motor efficiency at 1/2 load 85.4-82.8 %
Motor efficiency at 3/4 load 84.6-84.0 %
Motor efficiency at full load 1 82.7-82.7 %
Motor standard IEC
Motor type 80CA
Net weight 74.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.83-0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 2853 rpm
Pump version A
Pumped liquid Water
Rated current 4.35/2.50 A
Rated flow 3.96 US gpm
Rated head 422.3 ft
Rated power - P2 1.1 kW
Rated speed 2840-2870 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 33
Standard IEC
Starting current 450-500 %
Type 80CA
Type of connection FlexiClamp
Version A

Motor Curves

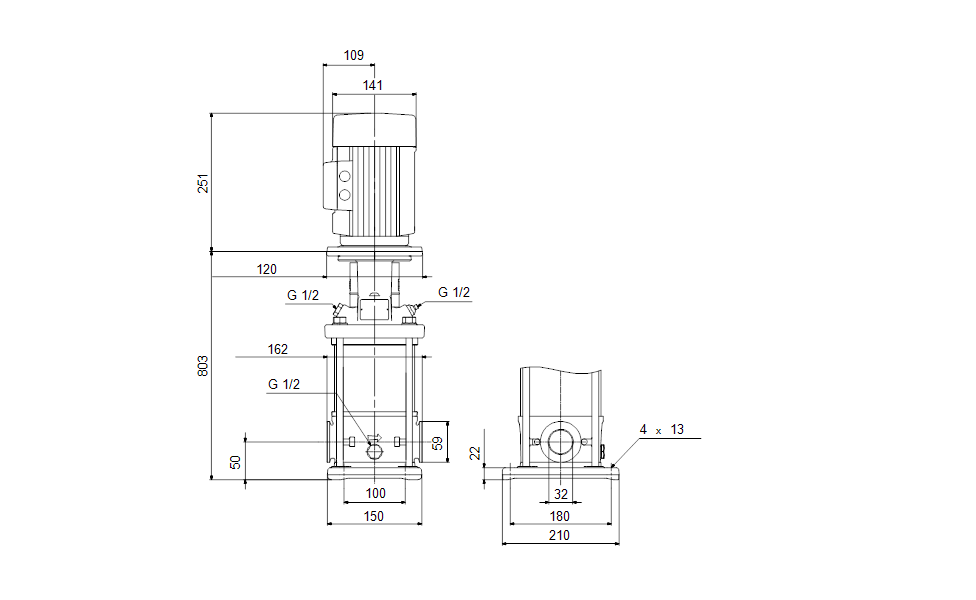

Dimensional Drawing

DWiring Diagram
