Name: Grundfos 96523654 - CRI 15-5 A-CA-A-E-HQQE | Pump Stop
Brand: GRUNDFOS
SKU: 96523654
Price: 11152.78 USD
Availability: InStock

Image shown may not be actual product

Grundfos 96523654 - CRI 15-5 A-CA-A-E-HQQE | Pump Stop

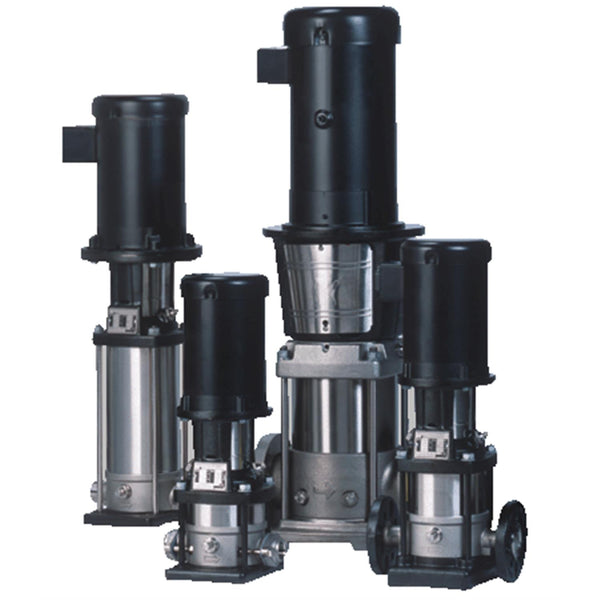

CRI 15-5 A-CA-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700396908984

Applications Industrial applications

Actual impeller diameter 4.13 in

Approvals CURUS

Approvals for drinking water NSF/ANSI 61

Bearing 1 SIC

Built-in motor protection PTC

Code for rubber E

Code for shaft seal HQQE

Connect code CA

Connection FlexiClamp

Connection 2 DN 50

Connection 3 DN 50

Connection 4 PN 25

Cooling TEFC

Curve tolerance ISO9906:2012 3B

Density 62.29 lb/ft³

Diameter 4.13 in

DOE Pump Energy Index CL 0.91

Enclosure class (IEC 34-5) 55 Dust/Jetting

Eta 1/1 90.0-90.2%

Flange size for motor 213TC

Frequency 60 HZ

Frequency converter NONE

Full load SF current 30,5-28,3/14,3 A

Gross weight 223.0 lb

IE Eff. Class NEMA Premium / IE3 60Hz

IE efficiency classNEMA Premium / IE3 60Hz

IE Efficiency class NEMA Premium / IE3 60Hz

Impeller Stainless steel

Impellers 5

Insulation F

Insulation class (IEC 85) F

Liquid max temp 120°C

Liquid temperature range -4 .. 248 °F

Low NPSH N

Material code A

Material Pricing Group 30

Max pressure at stated temp 232 psi / 250 °F

Maximum ambient temperature 140 °F

Maximum head 331.4 ft

Maximum operating pressure 232.06 psi

Maximum permissible operating pressure 16bar

Model A

Motor 213TC

Motor efficiency at 1/2 load 91.4-89.7 %

Motor efficiency at 3/4 load 90.9-90.7 %

Motor efficiency at full load 1 90.0-90.2 %

Motor protec PTC

Motor standard NEMA

Motor type 132FA

n rpm 3480-3500rpm

Net weight 205.0 lb

Number of poles 2

Number of reduced-diameter impellers 0

P2 HP 10 HP

P2 kW 7.5kW

Phase 3

Power (P2) required by pump 10 HP

Power factor 1 0.87

Pressure rating PN 25

Pressure rating for connection PN 25

Product family CRI 15

Pump 10 HP

Pump housing Stainless steel

Pump inlet DN 50

Pump outlet DN 50

Pump version A

Pumped liquid Water

Rated current 26,5-24,6/12,4 A

Rated flow 90.3 US gpm

Rated flow 2 90.3 US gpm

Rated head 254.6 ft

Rated head 2 254.6 ft

Rated power - P2 10 HP

Rated speed 3480-3500 rpm

Rated voltage 3 x 208-230YY/460Y V

Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price

Rubber E

Selected liquid temperature 68 °F

Service factor 1.15

Shaft seal HQQE

Size of inlet connection DN 50

Size of outlet connection DN 50

Stages 5

Standard NEMA

Starting current 680-900 %

Type 132FA

Type of connection FlexiClamp

Version A

Motor Curves

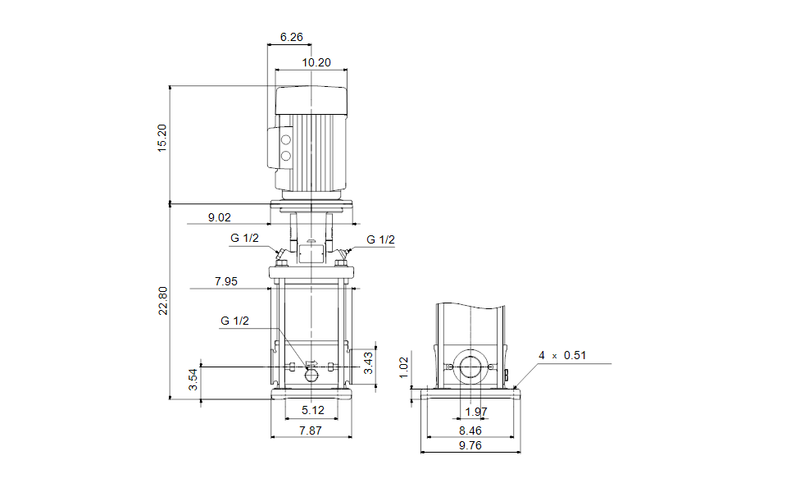

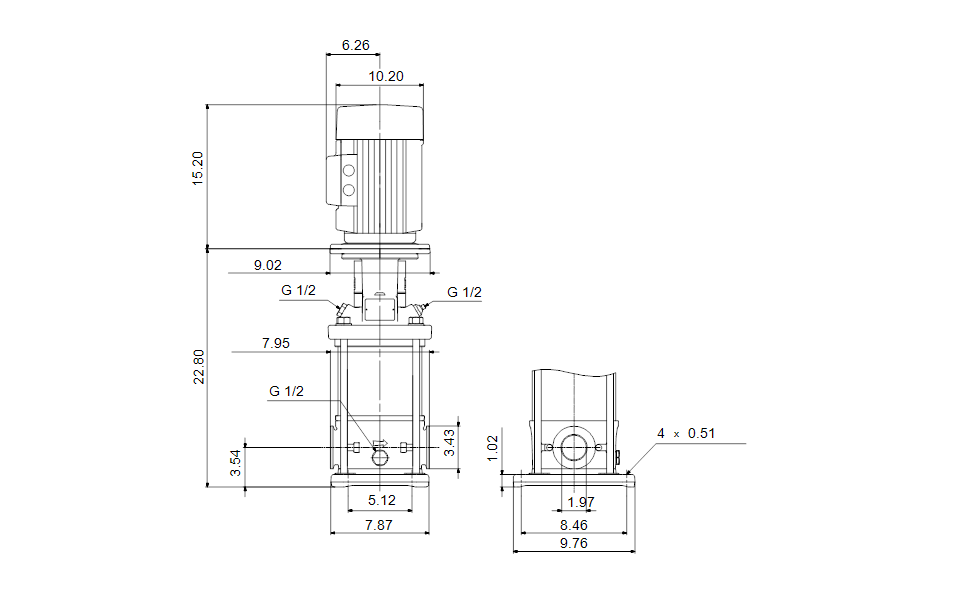

Dimensional Drawing

DWiring Diagram

CR, CRI, CRN, CRT (I & O instructions)

CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)

CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)

CR, CRI, CRN 1, 1S, 3 & 5 (Dismantling & Reassembly) (Service Manual)

CR Reading the Pump Nameplate

GRUNDFOS CR/CRE, Vertical Multistage Variable Speed System (Leaflet)

GRUNDFOS Grundfos 98821580 - SA-SPM6 Control Box .5HP115V (Bundle) | Pump Stop

$188.00

GRUNDFOS Grundfos 98821631 - SA-SPM6 Control Box.5HP230V (Bundle) | Pump Stop

$188.00

GRUNDFOS Grundfos 98821632 - SA-SPM MS402 0.75HP230V CSIR-Bundle Pack | Pump Stop

$196.00

GRUNDFOS Grundfos 99752806 - MOTOR 4" 0.5HP 1x115V 60Hz 3W 304SS BULK | Pump Stop

$822.00

GRUNDFOS Grundfos 99752807 - MOTOR 4" 0.5HP 1x230V 60Hz 3W 304SS BULK | Pump Stop

$822.00

GRUNDFOS Grundfos 99752808 - MOTOR 4" 0.75HP 1x230V 60Hz 3W 304SS BUL | Pump Stop

$987.00

GRUNDFOS Grundfos 99225670 - MS6000QFT40 3x208-230/60 5hp w/cab pac | Pump Stop

$2,928.00

GRUNDFOS Grundfos 99225684 - MS6000QFT40 3x400/50 460/60 5hpw/c pac | Pump Stop

$2,928.00

GRUNDFOS Grundfos 99533617 - MS6000QFT60 3x400/50 460/60 5hp w/p | Pump Stop

$3,804.00

GRUNDFOS Grundfos 99867121 - 230S50-2-AB 3NPT 4"1X230 60HZ | Pump Stop

$5,845.00

GRUNDFOS Grundfos 20250004 - 800S1000-4 | Pump Stop

$10,319.00

GRUNDFOS Grundfos 98924642 - 77S100-17 | Pump Stop

$9,838.00

AMT AMT BUNA SEAL & GASKET REBUILD KIT - 2760-304-95 | Pump Stop

$43.00

AMT AMT BUNA GASKET/O-RING SUBGROUP KIT - 3690-300-90 | Pump Stop

$21.00

AMT AMT 6" x 20" Suction Hose | Pump Stop

$888.00

Save $179.40

GRUNDFOS Grundfos 96230662 - Coupling liner D 168,3 x 50mm. 1.4410 | Pump Stop

$717.60 $897.00

Save $642.80

GRUNDFOS Grundfos 99046164 - Kit, Supp. Bracket cpl.f.15/20HP LA-XLCR | Pump Stop

$2,571.20 $3,214.00

Save $642.80

GRUNDFOS Grundfos 99046165 - Kit, Supp. Bracket cpl.f.20-40HP LA-XLCR | Pump Stop

$2,571.20 $3,214.00

Save $5.65

GRUNDFOS Grundfos 98670195 - Hose kit, 0.17x0.25" 100 ft PE | Pump Stop

$107.35 $113.00

Save $2.00

GRUNDFOS Grundfos 98670196 - Hose kit, 0.17x0.25" 20 ft PE | Pump Stop

$38.00 $40.00

Save $1.75

GRUNDFOS Grundfos 98670197 - Hose kit, 0.125x0.25" 20 ft PE | Pump Stop

$33.25 $35.00

Save $5,846.00

GRUNDFOS Grundfos 10731952 - BM 3A-52N NBR | Pump Stop

$8,769.00 $14,615.00

Save $82,454.00

GRUNDFOS Grundfos 19933613 - BM 95-13R NBR | Pump Stop

$123,681.00 $206,135.00

Save $74,772.80

GRUNDFOS Grundfos 19933611 - BM 95-11R NBR | Pump Stop

$112,159.20 $186,932.00

Save $2,346.00

Baldor ZDVSNM3665T - 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0642M, TENV, F1 - AC VS Master Motors

Baldor Baldor ZDVSNM3665T - 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0642M, TENV, F1 | Pump Stop

$3,519.00 $5,865.00

Save $2,179.20

Baldor ZDVSNM3661T - 3HP, 1760RPM, 3PH, 60HZ, 182TC, 0636M, TENV, F1 - AC VS Master Motors

Baldor Baldor ZDVSNM3661T - 3HP, 1760RPM, 3PH, 60HZ, 182TC, 0636M, TENV, F1 | Pump Stop

$3,268.80 $5,448.00

Save $2,031.20

Baldor ZDVSNM3587T - 2HP, 1755RPM, 3PH, 60HZ, 143TC, 0534M, TENV, F1 - AC VS Master Motors

Baldor Baldor ZDVSNM3587T - 2HP, 1755RPM, 3PH, 60HZ, 143TC, 0534M, TENV, F1 | Pump Stop

$3,046.80 $5,078.00

Save $637.00

Barmesa Barmesa 2BSV-304DS Submersible Stainless Vortex Sewage Pump 3.0 HP 460V 3PH 33' Cord Manual | Pump Stop

$1,911.00 $2,548.00

Save $1,830.50

Barmesa Barmesa BMV12-140-2003 Vertical Multi-Stage Centrifugal Pump 20 HP 3PH | Pump Stop

$5,491.50 $7,322.00

Save $4,694.50

Barmesa Barmesa BSP200MU Self-Priming Frame Mounted Pump 10" x 10" | Pump Stop

$14,083.50 $18,778.00

BARNES BARNES TS-29413 - STUD, 5/8-11, 2.500", SS | Pump Stop

$60.00

BARNES BARNES TS-29399 - SLEEVE, SS, 1.50"ID, 3.18"L | Pump Stop

$2,920.00

BARNES BARNES TS-29324 - SLEEVE, SS, 1.75"ID, 3.32"L | Pump Stop

$3,018.00

BURKS BURKS Q48-26 - ANODE, ZINC, 3/4X6 | Pump Stop

$96.00

BURKS BURKS H63DX00 - T3400G9-2-1/2 | Pump Stop

$18,087.00

BURKS BURKS H63D2017 - T3400G9A-3F | Pump Stop

$19,761.00

Save $524.86

GRUNDFOS Grundfos 99883241 - WEG 56C | Pump Stop

$616.14 $1,141.00

Save $348.68

GRUNDFOS Grundfos 99883332 - WEG 56C 1x115/230 2P 0,5HP F1 TEFC | Pump Stop

$409.32 $758.00

Save $1,937.06

GRUNDFOS Grundfos 99887777 - WEG 254/6TC 3x575 2P 20HP W6 ODP | Pump Stop

$2,273.94 $4,211.00

Save $29.79

GRUNDFOS Grundfos 96742103 - GASKET PKG #2 FOR BASIN COVER 8 Bolt | Pump Stop

$35.21 $65.00

GRUNDFOS Grundfos 96847183 - UNILIFT AP50.50.11.A1V | Pump Stop

$2,109.00

GRUNDFOS Grundfos 96847181 - UNILIFT AP50.50.08.A1V | Pump Stop

$1,699.00

Save $1,954.54

GRUNDFOS Grundfos 99329815 - CME 10-1 A-S-G-E-AQQE U-A-A-N | Pump Stop

$2,294.46 $4,249.00

Save $850.08

GRUNDFOS Grundfos 98125766 - CM 1-6 A-S-I-E-AQQE B-A-A-N | Pump Stop

$997.92 $1,848.00

Save $454.94

GRUNDFOS Grundfos 97568449 - CM 5-2 A-S-A-E-AQQE E-A-A-N | Pump Stop

$534.06 $989.00

Save $883.67

GRUNDFOS Grundfos 99513496 - VFI/-0.6-12m/1/F/M5.00-X/EG6/SG/30F/AC-1 | Pump Stop

$1,044.33 $1,928.00

Save $883.67

GRUNDFOS Grundfos 99513522 - VFI/-0.6-12m/1/F/M5.00-X/VG6/SG/30F/AC-1 | Pump Stop

$1,044.33 $1,928.00

Save $95.33

GRUNDFOS Grundfos 99546549 - VFS/---1-20l/5/Q/S------/EG4/CB/03N/SW-1 | Pump Stop

$112.67 $208.00

Save $4,262.88

GRUNDFOS Grundfos 99968295 - CR 10-9 K-GJ-A-E-HQQE | Pump Stop

$4,618.12 $8,881.00

Save $3,980.64

GRUNDFOS Grundfos 99968294 - CR 10-8 K-GJ-A-E-HQQE | Pump Stop

$4,312.36 $8,293.00

Save $2,367.36

GRUNDFOS Grundfos 99968265 - CR 3-15 K-FGJ-A-E-HQQE | Pump Stop

$2,564.64 $4,932.00

Save $627.60

GRUNDFOS Grundfos 96416225 - Kit, Chamber stack CR 45-2-1 | Pump Stop

$2,510.40 $3,138.00

Save $1,291.60

GRUNDFOS Grundfos 96416231 - Kit, Chamber stack CR 45-5-1 | Pump Stop

$5,166.40 $6,458.00

Save $1,131.60

GRUNDFOS Grundfos 96416242 - Kit, Chamber stack CRN 45-2-1 | Pump Stop

$4,526.40 $5,658.00

Save $1,214.40

GRUNDFOS Grundfos 99915837 - CR 1-6 A-FGJ-A-E-HQQE | Pump Stop

$1,315.60 $2,530.00

Save $1,816.32

GRUNDFOS Grundfos 99916321 - CR 3-12 A-B-A-E-HQQE | Pump Stop

$1,967.68 $3,784.00

Save $1,399.68

GRUNDFOS Grundfos 99915811 - CR 1-9 A-B-A-E-HQQE | Pump Stop

$1,516.32 $2,916.00

GRUNDFOS Grundfos 99076207 - CRNE 10-6 N-FGJ-A-E-HQQE | Pump Stop

$10,873.00

Save $8,917.44

GRUNDFOS Grundfos 98696758 - CRE64-2-2 X-G-A-E-HQQE 3x460 60Hz | Pump Stop

$9,660.56 $18,578.00

Save $8,917.44

GRUNDFOS Grundfos 98696759 - CRE64-2-1 X-G-A-E-HQQE 3x460 60Hz | Pump Stop

$9,660.56 $18,578.00

Save $3,718.56

GRUNDFOS Grundfos 99918031 - CRN 32-1 A-G-A-E-HQQE | Pump Stop

$4,028.44 $7,747.00

Save $2,674.56

GRUNDFOS Grundfos 99917395 - CRN 10-2 A-FGJ-A-E-HQQE | Pump Stop

$2,897.44 $5,572.00

Save $1,763.52

GRUNDFOS Grundfos 99916546 - CRN 3-6 A-FGJ-A-E-HQQE | Pump Stop

$1,910.48 $3,674.00

Save $7,061.00

GRUNDFOS Grundfos 99961196 - WEG 324/6TSC 3x230/460 2P 50HP W6 TE HYB | Pump Stop

$8,289.00 $15,350.00

Save $4,663.68

GRUNDFOS Grundfos 99971471 - CR95-1-1 X-G-A-V-HQQV 230D/460Y 60 HZ | Pump Stop

$5,052.32 $9,716.00

Save $6,511.20

GRUNDFOS Grundfos 99972073 - CRN95-1-1 X-G-A-V-HQQV 230D/460Y 60 HZ | Pump Stop

$7,053.80 $13,565.00

Save $4,070.00

GRUNDFOS Grundfos 97775161 - Sine Wave 525-690 13A 130B2341 | Pump Stop

$4,070.00 $8,140.00

Save $7,507.00

GRUNDFOS Grundfos 97775162 - Sine Wave 525-690 28A 130B2342 | Pump Stop

$7,507.00 $15,014.00

Save $11,212.50

GRUNDFOS Grundfos 97775163 - Sine Wave 525-690 45A 130B2343 | Pump Stop

$11,212.50 $22,425.00

AMT AMT CASING XCI VERT CIRCULATOR MBV -01 - 5710-001-00 | Pump Stop

$281.00

AMT AMT CASING XCI VERT CIRCULATOR MBV -01 - 5700-001-00 | Pump Stop

$261.00

AMT AMT CASING XCI MACH VERT CIRCULATOR MBV -01 | Pump Stop

$245.00

Pump Stop, LLC Yamada 851515 - NDP-20BAN | Pump Stop

Pump Stop, LLC Yamada 851514 - NDP-20BAC | Pump Stop

Pump Stop, LLC Yamada 854576 - NDP-32BAT | Pump Stop

Save $268.40

GRUNDFOS Grundfos 99045076 - Kit, Level sensor Sub 9psi 65ft SS cage | Pump Stop

$1,073.60 $1,342.00

Save $63.75

GRUNDFOS Grundfos 99381158 - Alarm, Spartan 1x120 | Pump Stop

$361.25 $425.00

Save $190.95

GRUNDFOS Grundfos 99381162 - Panel, Spartan Sim 1x120, 13 | Pump Stop

$1,082.05 $1,273.00

PROSSER PROSSER 9-840873 - HANDLE, CONTROL, STL, 4.75" | Pump Stop

$128.00

PROSSER PROSSER 9-840759-4 - WASHER, GLAND, CABLE, .870 | Pump Stop

$51.00

PROSSER PROSSER 9-840710-65 - CABLE, W/GLAND, 12/4, 75FT | Pump Stop

$2,054.00

CROWN CROWN TS-34296 - PLUG, IMPELLER, 1.552"D | Pump Stop

$497.00

CROWN CROWN TS-29790-A - HUB, IMPELLER, 316, 1.00"OD | Pump Stop

$1,824.00

CROWN CROWN TS-29790 - HUB, IMPELLER, 304, 1.00"OD | Pump Stop

$624.00

GRUNDFOS Grundfos 99159454 - DDA 60-10 AR-PVC/E/C-F-31A7A7BG | Pump Stop

$6,753.00

Save $2,664.00

GRUNDFOS Grundfos 99291621 - DDA 60-10 AR-PVC/E/C-F-32A7A7BG | Pump Stop

$3,996.00 $6,660.00

Save $2,664.00

GRUNDFOS Grundfos 99291623 - DDA 60-10 AR-PVC/V/C-F-32A7A7BG | Pump Stop

$3,996.00 $6,660.00

GRUNDFOS Grundfos 97721537 - DDC 6-10 | Pump Stop

$2,825.00

GRUNDFOS Grundfos 97721538 - DDC 6-10 | Pump Stop

$3,133.33

GRUNDFOS Grundfos 97721539 - DDC 6-10 | Pump Stop

$2,897.22

Save $2,558.80

GRUNDFOS Grundfos 99287378 - DDE 200-4 B-PV/E/C-F-32A7A7BG | Pump Stop

$3,838.20 $6,397.00

Save $1,790.40

GRUNDFOS Grundfos 99291837 - DDE 60-10 B-PVC/E/C-F-32A7A7BG | Pump Stop

$2,685.60 $4,476.00

Save $1,790.40

GRUNDFOS Grundfos 99291838 - DDE 60-10 B-PVC/V/C-F-32A7A7BG | Pump Stop

$2,685.60 $4,476.00

GRUNDFOS Grundfos 96717383 - DDI 222 60-10 | Pump Stop

GRUNDFOS Grundfos 96717435 - DDI 222 60-10 | Pump Stop

GRUNDFOS Grundfos 91836569 - DDI 222 60-10 | Pump Stop

Save $5,956.86

GRUNDFOS Grundfos 99589882 - DME 940-4 AR-SS/T/SS-S-31A4A4B | Pump Stop

$9,317.14 $15,274.00

Save $5,906.16

GRUNDFOS Grundfos 98158535 - DME 940-4 AR-SS/T/SS-F-31A4A4B | Pump Stop

$9,237.84 $15,144.00

Save $4,968.21

GRUNDFOS Grundfos 98372478 - DME 375-10 AR-SS/T/SS-F-31A4A4B | Pump Stop

$7,770.79 $12,739.00

Save $1,797.80

GRUNDFOS Grundfos 99855113 - DMH 270-10 B-SS/V/SS-X-F1A3A3XAG | Pump Stop

$7,191.20 $8,989.00

Save $749.40

GRUNDFOS Grundfos 99855117 - DMH 37-10 B-PV/T/T-X-F1A9A9XAG | Pump Stop

$2,997.60 $3,747.00

Save $612.60

GRUNDFOS Grundfos 99893036 - DMH 13-10 B-PVC/V/C-X-F1A9A9XAG | Pump Stop

$2,450.40 $3,063.00

Save $714.00

GRUNDFOS Grundfos 99954733 - DMH 13-10 B-PVC/T/T-X-F1A9A9XAG | Pump Stop

$2,856.00 $3,570.00

GRUNDFOS Grundfos 99752806 - MOTOR 4" 0.5HP 1x115V 60Hz 3W 304SS BULK | Pump Stop

$822.00

GRUNDFOS Grundfos 99752807 - MOTOR 4" 0.5HP 1x230V 60Hz 3W 304SS BULK | Pump Stop

$822.00

GRUNDFOS Grundfos 99752808 - MOTOR 4" 0.75HP 1x230V 60Hz 3W 304SS BUL | Pump Stop

$987.00

GRUNDFOS Grundfos 99159454 - DDA 60-10 AR-PVC/E/C-F-31A7A7BG | Pump Stop

$6,753.00

Save $123.09

GRUNDFOS Grundfos 99762455 - Elec.Mixer 15gal, SS H/X, 450-88 | Pump Stop

$995.91 $1,119.00

Save $135.96

GRUNDFOS Grundfos 99762456 - Elec.Mixer 15gal, PP H/X, 450-88 | Pump Stop

$1,100.04 $1,236.00

DEMING DEMING W112-6S - FLANGE, 6S, 1.125" | Pump Stop

$179.00

DEMING DEMING W087-6S - FLANGE, 6S, .875" | Pump Stop

$102.00

DEMING DEMING W005-6E - SLEEVE, 6E | Pump Stop

$185.00

Save $123.09

GRUNDFOS Grundfos 99762455 - Elec.Mixer 15gal, SS H/X, 450-88 | Pump Stop

$995.91 $1,119.00

Save $135.96

GRUNDFOS Grundfos 99762456 - Elec.Mixer 15gal, PP H/X, 450-88 | Pump Stop

$1,100.04 $1,236.00

Save $191.07

GRUNDFOS Grundfos 99762457 - Elec.Mixer 15gal, PP-S H/X, 450-88 | Pump Stop

$1,545.93 $1,737.00

GRUNDFOS Grundfos 96022796 - MS402E Lead 12/3 25' | Pump Stop

$967.00

GRUNDFOS Grundfos 96022797 - Redi-Flo4 Motor Lead 12/3 50' | Pump Stop

$1,535.00

GRUNDFOS Grundfos 96022799 - MS402E Lead 12/3 100' | Pump Stop

$2,676.00

Flomatic Valves Flomatic Valves S3W06 - Butterfly Valves Sylax 3 Wafer Style with Lever Handle | Pump Stop

$192.00

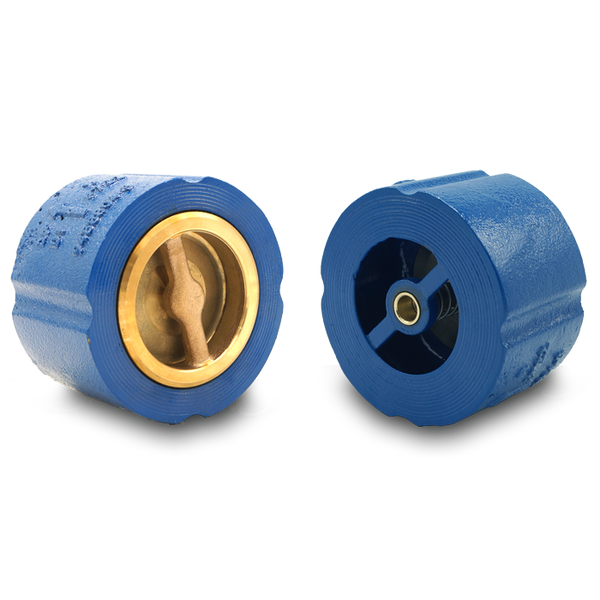

Flomatic Valves Flomatic 2435RG | Pump Stop

$492.11

Flomatic Valves Flomatic Valves C150001ET - Pressure Reducing Valves C150ET | Pump Stop

$275.00

Flomatic Valves Flomatic Valves S3W06 - Butterfly Valves Sylax 3 Wafer Style with Lever Handle | Pump Stop

$192.00

Flomatic Valves Flomatic 2435RG | Pump Stop

$492.11

Flomatic Valves Flomatic Valves C150001ET - Pressure Reducing Valves C150ET | Pump Stop

$275.00

GRAINGER GRAINGER 115945 - 2HP, 3600, 230/460/3 | Pump Stop

$349.00

Save $92.80

GRUNDFOS Grundfos 96511844 - Kit, Shaft Seal HQQE | Pump Stop

$371.20 $464.00

Save $46.00

GRUNDFOS Grundfos 96509609 - Kit, O-ring EPDM | Pump Stop

$184.00 $230.00

Save $53.80

GRUNDFOS Grundfos 99580611 - Kit, venting valve SD-XL, PVDF/V/C | Pump Stop

$215.20 $269.00

Save $6,037.96

GRUNDFOS Grundfos 99887831 - WEG 284TSC | Pump Stop

$7,088.04 $13,126.00

Save $193.00

GRUNDFOS Grundfos 91123941 - LIQUID LEVEL SWITCH KIT 3" MANIFOLD | Pump Stop

$772.00 $965.00

Save $181.90

GRUNDFOS Grundfos 99613063 - TANK 6.4GAL 150# ASME DD 390602 | Pump Stop

$1,637.10 $1,819.00

Save $202.20

GRUNDFOS Grundfos 99613065 - TANK 8.6GAL 150# ASME DD 390603 | Pump Stop

$1,819.80 $2,022.00

Save $228.50

GRUNDFOS Grundfos 99613066 - TANK 16.6GAL 150# ASME DD 401681 | Pump Stop

$2,056.50 $2,285.00

Save $3,092.04

GRUNDFOS Grundfos 92560410 - NBS 060-110/10.75 AASG7SAESDQQEOY6 | Pump Stop

$18,993.96 $22,086.00

Save $2,961.28

GRUNDFOS Grundfos 92560409 - NBS 060-110/10.75 AASG7SAESDQQEOY6 | Pump Stop

$18,190.72 $21,152.00

Save $2,913.68

GRUNDFOS Grundfos 92560406 - NBS 060-110/10.20 AASG7SAESDQQENY6 | Pump Stop

$17,898.32 $20,812.00

Save $8,772.66

GRUNDFOS Grundfos 99961197 - WEG 364/5TSC 3x230/460 2P 60HP W6 TE CIB | Pump Stop

$10,298.34 $19,071.00

Save $310.96

GRUNDFOS Grundfos 91134900 - ML71AA 230/460-2 1/3HP 56C | Pump Stop

$365.04 $676.00

Save $332.12

GRUNDFOS Grundfos 91134901 - ML71AB 230/460-2 1/2HP 56C | Pump Stop

$389.88 $722.00

Save $2,760.92

GRUNDFOS Grundfos 99586675 - MGE132SF 3R430-1 7.5kW B14 IEC PGK | Pump Stop

$3,241.08 $6,002.00

Save $2,010.66

GRUNDFOS Grundfos 99586773 - MGE112MC R430-1 4.6kW B14 IEC PGK | Pump Stop

$2,360.34 $4,371.00

Save $2,421.90

GRUNDFOS Grundfos 99586774 - MGE132SE 3R430-1 6.0kW B14 IEC PKG | Pump Stop

$2,843.10 $5,265.00

Save $524.86

GRUNDFOS Grundfos 99883241 - WEG 56C | Pump Stop

$616.14 $1,141.00

Save $348.68

GRUNDFOS Grundfos 99883332 - WEG 56C 1x115/230 2P 0,5HP F1 TEFC | Pump Stop

$409.32 $758.00

Save $1,937.06

GRUNDFOS Grundfos 99887777 - WEG 254/6TC 3x575 2P 20HP W6 ODP | Pump Stop

$2,273.94 $4,211.00

Save $2,012.00

GRUNDFOS Grundfos 99947812 - CMBE 1-44 I-X-C-E-D-E 1x115V 60Hz RPL | Pump Stop

$2,607.00 $4,619.00

Save $3,390.00

GRUNDFOS Grundfos 99947844 - CMBE10-54 I-U-C-E-D-G 1x200-240 60 RPL | Pump Stop

$4,390.00 $7,780.00

Save $2,382.00

GRUNDFOS Grundfos 98810924 - CMBE 3-51 I-X-C-B-D-E | Pump Stop

$3,085.00 $5,467.00

Save $1,954.54

GRUNDFOS Grundfos 99329815 - CME 10-1 A-S-G-E-AQQE U-A-A-N | Pump Stop

$2,294.46 $4,249.00

Save $850.08

GRUNDFOS Grundfos 98125766 - CM 1-6 A-S-I-E-AQQE B-A-A-N | Pump Stop

$997.92 $1,848.00

Save $1,102.15

GRUNDFOS Grundfos 98993319 - MTC 4-5/3 A-WB-A-AQQV | Pump Stop

$1,242.85 $2,345.00

Save $1,019.34

GRUNDFOS Grundfos 99852646 - Sensor, Turbidity, plug type | Pump Stop

$6,261.66 $7,281.00

Save $2,894.08

GRUNDFOS Grundfos 99852649 - Sensor, Turbidity, Organics, plug type | Pump Stop

$17,777.92 $20,672.00

Save $107.66

GRUNDFOS Grundfos 99852650 - Acc. Sensor hub for CU382 | Pump Stop

$661.34 $769.00

GRUNDFOS Grundfos 99913081 - 24VAC Relay - Single Pack | Pump Stop

$511.00

GRUNDFOS Grundfos 99913082 - 24VAC Relay - 10 Pack | Pump Stop

$4,763.00

GRUNDFOS Grundfos 99913093 - 120VAC Relay - Single Pack | Pump Stop

$511.00

Save $181.90

GRUNDFOS Grundfos 99613063 - TANK 6.4GAL 150# ASME DD 390602 | Pump Stop

$1,637.10 $1,819.00

Save $202.20

GRUNDFOS Grundfos 99613065 - TANK 8.6GAL 150# ASME DD 390603 | Pump Stop

$1,819.80 $2,022.00

Save $228.50

GRUNDFOS Grundfos 99613066 - TANK 16.6GAL 150# ASME DD 401681 | Pump Stop

$2,056.50 $2,285.00

Save $62.72

GRUNDFOS Grundfos 96806135 - Flange Kit GF15/26 x 3/4" Sweat Vlv DiE | Pump Stop

$65.28 $128.00

Save $8.33

GRUNDFOS Grundfos 91130069 - Gasket 1/2"-1" ISO Valve, service | Pump Stop

$8.67 $17.00

Save $73.99

GRUNDFOS Grundfos 99956228 - Union Kit G150 x 3/4" FNPT Iso Vlv DiE | Pump Stop

$77.01 $151.00

PROSSER PROSSER 9-840873 - HANDLE, CONTROL, STL, 4.75" | Pump Stop

$128.00

PROSSER PROSSER 9-840759-4 - WASHER, GLAND, CABLE, .870 | Pump Stop

$51.00

PROSSER PROSSER 9-840710-65 - CABLE, W/GLAND, 12/4, 75FT | Pump Stop

$2,054.00

Save $92.80

GRUNDFOS Grundfos 96511844 - Kit, Shaft Seal HQQE | Pump Stop

$371.20 $464.00

Save $46.00

GRUNDFOS Grundfos 96509609 - Kit, O-ring EPDM | Pump Stop

$184.00 $230.00

Save $53.80

GRUNDFOS Grundfos 99580611 - Kit, venting valve SD-XL, PVDF/V/C | Pump Stop

$215.20 $269.00

Save $3,945.00

GRUNDFOS Grundfos 96804572 - TP100-160/2 A-G-A-RUUE 3X230/460 60HZ | Pump Stop

$3,945.00 $7,890.00

Save $5,082.00

GRUNDFOS Grundfos 99884124 - TPE3 D 80-110 S-A-G-A-BQQE-GBB | Pump Stop

$11,857.00 $16,939.00

Save $5,214.00

GRUNDFOS Grundfos 99884119 - TPE3 80-180 S-A-G-I-BQQE-IBB | Pump Stop

$12,165.00 $17,379.00

GRUNDFOS Grundfos 97620158 - Manual Assembly bench SP "Vertical" | Pump Stop

$34,170.83

GRUNDFOS Grundfos 97620191 - Manual Assembly bench SP "Horizontal" | Pump Stop

$20,270.83

GRUNDFOS Grundfos 97620195 - Adaptor for 10" Pump | Pump Stop

$3,781.94

GRUNDFOS Grundfos 96022796 - MS402E Lead 12/3 25' | Pump Stop

$967.00

GRUNDFOS Grundfos 96022797 - Redi-Flo4 Motor Lead 12/3 50' | Pump Stop

$1,535.00

GRUNDFOS Grundfos 96022799 - MS402E Lead 12/3 100' | Pump Stop

$2,676.00

Save $1,102.15

GRUNDFOS Grundfos 98993319 - MTC 4-5/3 A-WB-A-AQQV | Pump Stop

$1,242.85 $2,345.00

Save $1,116.25

GRUNDFOS Grundfos 98993314 - MTC 4-7/2 A-WB-A-AQQV | Pump Stop

$1,258.75 $2,375.00

Save $3,262.27

GRUNDFOS Grundfos 99528823 - MTRE 1-17/17 A-WB-A-HUUV | Pump Stop

$3,678.73 $6,941.00

GRUNDFOS Grundfos 96436754 - CU 301 | Pump Stop

$967.00

GRUNDFOS Grundfos 98424484 - CRF 15-1 A-B-A-E-HQQE | Pump Stop

$6,954.00

GRUNDFOS Grundfos 98419330 - CRF 10-1 A-BN-A-E-HQQE | Pump Stop

$5,435.00

GRUNDFOS Grundfos 96959028 - IO50, US | Pump Stop

$184.00

Save $259.40

GRUNDFOS Grundfos 99057330 - Kit,maint DMH288-SS/V/SS | Pump Stop

$1,037.60 $1,297.00

GRUNDFOS Grundfos 97778284 - SQ Cabel, ETFE 12AWG,100ft Model C | Pump Stop

$1,796.00

GRUNDFOS Grundfos 99039039 - BALDOR 447TSD | Pump Stop

$38,753.00

GRUNDFOS Grundfos 99867121 - 230S50-2-AB 3NPT 4"1X230 60HZ | Pump Stop

$5,845.00

GRUNDFOS Grundfos 98821580 - SA-SPM6 Control Box .5HP115V (Bundle) | Pump Stop

$188.00

GRUNDFOS Grundfos 98821631 - SA-SPM6 Control Box.5HP230V (Bundle) | Pump Stop

$188.00

Save $883.67

GRUNDFOS Grundfos 99513496 - VFI/-0.6-12m/1/F/M5.00-X/EG6/SG/30F/AC-1 | Pump Stop

$1,044.33 $1,928.00

Save $883.67

GRUNDFOS Grundfos 99513522 - VFI/-0.6-12m/1/F/M5.00-X/VG6/SG/30F/AC-1 | Pump Stop

$1,044.33 $1,928.00

Save $1,193.96

GRUNDFOS Grundfos 98854639 - VFI/--8-160m/1/C/M5.00-X/EG6/SG/39F/AC-1 | Pump Stop

$1,411.04 $2,605.00

Save $95.33

GRUNDFOS Grundfos 99546549 - VFS/---1-20l/5/Q/S------/EG4/CB/03N/SW-1 | Pump Stop

$112.67 $208.00

Save $99.46

GRUNDFOS Grundfos 99546563 - VFS/---2-40l/5/Q/S------/EG4/CB/04N/SW-1 | Pump Stop

$117.54 $217.00

Save $110.00

GRUNDFOS Grundfos 99546564 - VFS/--5-100l/5/Q/S------/EG4/CB/04N/SW-1 | Pump Stop

$130.00 $240.00

GRUNDFOS Grundfos 98341687 - OVR PV 40-1000 P, Surge Protection | Pump Stop

$514.00

GRUNDFOS Grundfos 98341686 - OTDCP16, Circuit Breaker, 16Amp | Pump Stop

$175.00

Save $39.14

GRUNDFOS Grundfos 96001643 - FLOAT SWITCH TF10 SQ-D, 10' | Pump Stop

$63.86 $103.00

Save $37.24

GRUNDFOS Grundfos 96001644 - CHECK VALVE,SWING 1.5 COMP (1) | Pump Stop

$60.76 $98.00

Save $66.12

GRUNDFOS Grundfos 96001645 - CHECK VALVE,SWING 2" COMP (1) | Pump Stop

$107.88 $174.00

Save $3,945.00

GRUNDFOS Grundfos 96804572 - TP100-160/2 A-G-A-RUUE 3X230/460 60HZ | Pump Stop

$3,945.00 $7,890.00

Save $6,248.50

GRUNDFOS Grundfos 96411853 - TP 100-160/2 A-G-Z-BUBE-JX2 | Pump Stop

$6,248.50 $12,497.00

Save $6,732.50

GRUNDFOS Grundfos 96411852 - TP 100-160/2 A-G-Z-BUBE-JX2 | Pump Stop

$6,732.50 $13,465.00

Save $5,082.00

GRUNDFOS Grundfos 99884124 - TPE3 D 80-110 S-A-G-A-BQQE-GBB | Pump Stop

$11,857.00 $16,939.00

Save $5,214.00

GRUNDFOS Grundfos 99884119 - TPE3 80-180 S-A-G-I-BQQE-IBB | Pump Stop

$12,165.00 $17,379.00

Save $4,859.00

GRUNDFOS Grundfos 99884118 - TPE3 80-150 S-A-G-I-BQQE-HBB | Pump Stop

$11,338.00 $16,197.00

U.S. SEAL MFG. U.S. SEAL MFG. VGMW-14HL - Value Guard Metric for Tsurumi W-14HL / 025-290-19 - 14 MM | Pump Stop

$161.15

U.S. SEAL MFG. U.S. SEAL MFG. VGMHT-4550NTC - Tungsten Version of VGMHT-4550N - 45/50MM | Pump Stop

$1,925.95

U.S. SEAL MFG. U.S. SEAL MFG. VGMHT-4550N - Value Guard Metric for Tsurumi HT-4550N / 025-000-04 - 45/50MM | Pump Stop

$1,130.05

U.S. SEAL MFG. U.S. SEAL MFG. VGMW-14HL - Value Guard Metric for Tsurumi W-14HL / 025-290-19 - 14 MM | Pump Stop

$161.15

U.S. SEAL MFG. U.S. SEAL MFG. VGMHT-4550NTC - Tungsten Version of VGMHT-4550N - 45/50MM | Pump Stop

$1,925.95

U.S. SEAL MFG. U.S. SEAL MFG. VGMHT-4550N - Value Guard Metric for Tsurumi HT-4550N / 025-000-04 - 45/50MM | Pump Stop

$1,130.05

GRUNDFOS Grundfos 98705922 - Adapter kit,SL,4"ANSI,cl 125,Hydro/Myer | Pump Stop

$995.00

GRUNDFOS Grundfos 98708351 - Adapter kit,SL,6"ANSI,cl 125,Hydro/Myer | Pump Stop

$1,839.00

GRUNDFOS Grundfos 98708358 - Adapter kit,SL,3"ANSI,cl 125,Hydro/Myer | Pump Stop

$844.00

Save $29.79

GRUNDFOS Grundfos 96742103 - GASKET PKG #2 FOR BASIN COVER 8 Bolt | Pump Stop

$35.21 $65.00

GRUNDFOS Grundfos 96847183 - UNILIFT AP50.50.11.A1V | Pump Stop

$2,109.00

GRUNDFOS Grundfos 96847181 - UNILIFT AP50.50.08.A1V | Pump Stop

$1,699.00

GRUNDFOS Grundfos 98705922 - Adapter kit,SL,4"ANSI,cl 125,Hydro/Myer | Pump Stop

$995.00

GRUNDFOS Grundfos 98708351 - Adapter kit,SL,6"ANSI,cl 125,Hydro/Myer | Pump Stop

$1,839.00

GRUNDFOS Grundfos 98708358 - Adapter kit,SL,3"ANSI,cl 125,Hydro/Myer | Pump Stop

$844.00

WEINMAN WEINMAN W9SC50 - FLANGE, 9SC50 | Pump Stop

$564.00

WEINMAN WEINMAN W9SC35 - FLANGE, 9SC35 | Pump Stop

$268.00

WEINMAN WEINMAN W5SC35 - FLANGE, 5SC35 | Pump Stop

$65.00

AMT 1/2" NPT VENTED PLUG MACH BY AMT | Pump Stop

$6.00

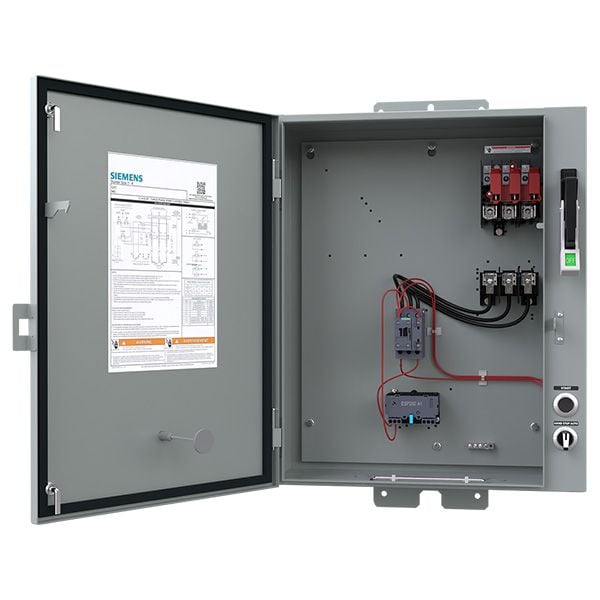

WorldWide Electric 3RE48 NEMA Rated Pump Controller, Size 1, Fusible Disconnect, 5.5-22A, 115V - 3RE4801-0GK36-4DA0 | Pump Stop

$1,414.91

WorldWide Electric 3RE48 NEMA Rated Pump Controller, Size 1, Fusible Disconnect, 5.5-22A, 230V - 3RE4801-0GH56-4DA0 | Pump Stop

$1,394.04

Yamada Yamada 805085 - SPOOL ASSY 40/50/80 | Pump Stop

$57.00

Yamada Yamada K25-MN-UL - DISCONTINUED SEE K25-MH-UL | Pump Stop

$235.00

Yamada Yamada 803675 - SLEEVE ASSY 40/50/80 w/ o-ring | Pump Stop

$58.00

Yamada Yamada 851842 - DP-10BAC | Pump Stop

$680.00

Yamada Yamada 854341 - DP-40BAN-HD | Pump Stop

$1,645.00

Yamada Yamada 851847 - DP-10BAH | Pump Stop

$680.00

Grundfos 96523654 - CRI 15-5 A-CA-A-E-HQQE | Pump Stop

Description

Dimensional Drawing

DWiring Diagram

Recently viewed

Similar Products

You'll Also Love...
