Grundfos 99267288 - CRI 15-2 A-FGJ-A-E-OQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99267288

Price:
Sale price$14,404.17
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

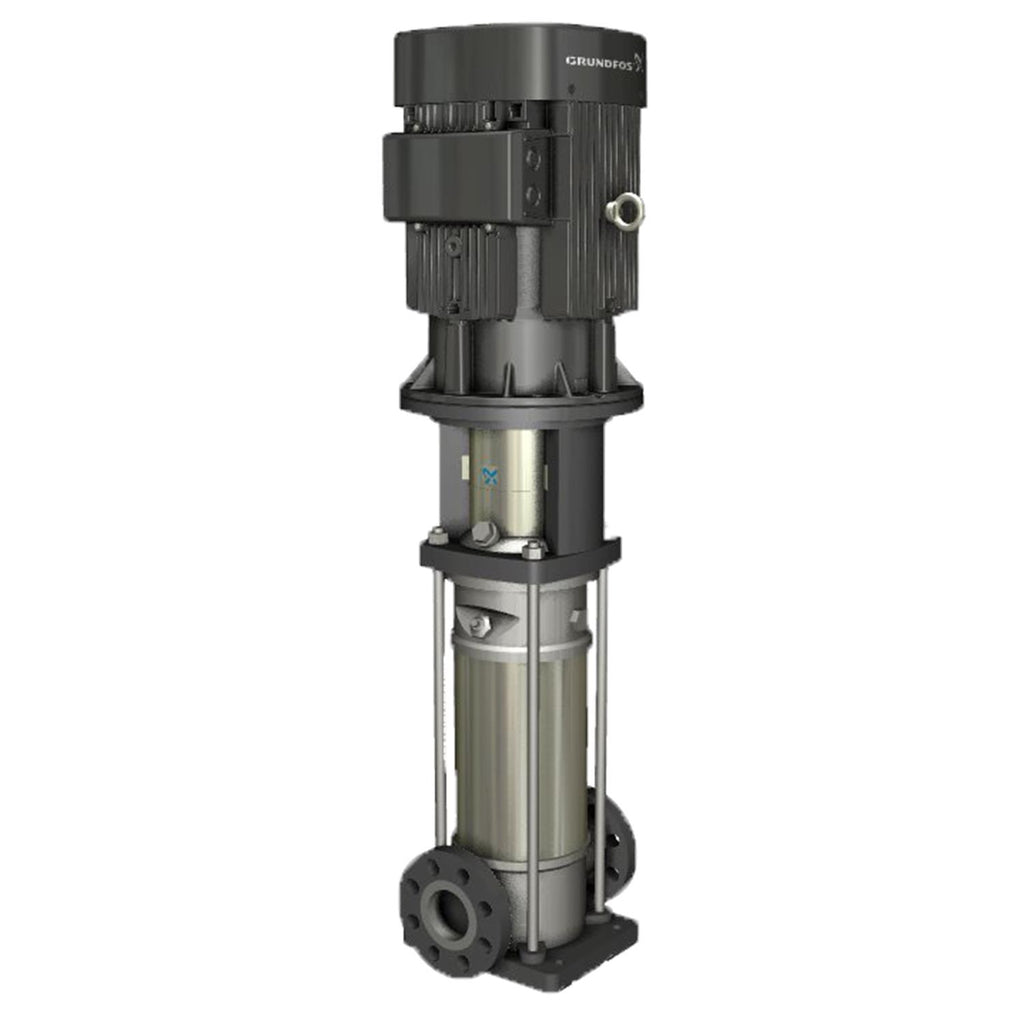

CRI 15-2 A-FGJ-A-E-OQQE · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI5HP230/460V3.0-Phase60 HzNEMA Premium / IE3 60HzStainless steel

The Grundfos 99267288 (CRI 15-2 A-FGJ-A-E-OQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 90.3US gpm at 103.7ft. Rated 230/460V, 3.0-Phase, 60 Hz.

Power
5HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
90.3US gpm
Max Head
103.7ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 15-2 A-FGJ-A-E-OQQE
Series: CRI
Model Code: CRI 15-2 A-FGJ-A-E-OQQE
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: OQQE
Flange Rating: PN 25
Technical Specifications
Model Number 99267288
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Power 5HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Pump Speed 3461rpm
Full Load Current 11.8/5.9A
Motor Type BALDOR
Motor Protection PTO
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency IE3 88.5%
Insulation Class B
Nominal Flow 90.3US gpm
Nominal Head 103.7ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal OQQE
Approvals / Certifications CURUS
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 15-2 A-FGJ-A-E-OQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5713826271039
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection PTO
Code for rubber E
Code for shaft seal OQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 179.0 lb
IE efficiency IE3 88.5%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 135.5 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.885
Motor standard NEMA
Motor type BALDOR
Net weight 163.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 11.8/5.9 A
Rated flow 90.3 US gpm
Rated head 103.7 ft
Rated power - P2 3.7 kW
Rated speed 3450 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

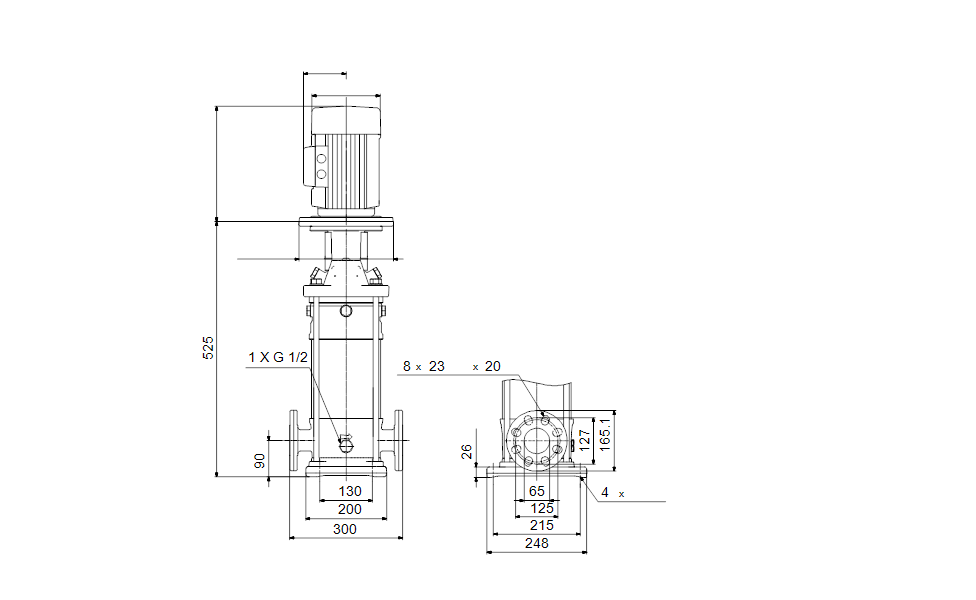

Dimensional Drawing

DWiring Diagram
