Grundfos 92610580 - CRI 15-2 A-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92610580

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92610580 - CRI 15-2 A-CA-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial high-pressure inline applications, used by maintenance teams and service technicians.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure operation
  • Service Special and CR Service Special tagging indicates suitability for repair and shop replacement
  • Built for inline installations to deliver reliable pressure boosting and transfer performance

Applications

Boiler feed, pressure boosting, closed-loop systems, industrial water transfer, and other high-pressure inline or vertical multistage uses.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92610580

EAN 5715117034576
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter NONE
Gross weight 97.0 lb
IE efficiency 0.64
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 33.79 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.52
Motor efficiency at 3/4 load 0.59
Motor efficiency at full load 1 0.64
Motor standard NEMA
Motor type WEG
Net weight 79.4 lb
Number of poles 4
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.63
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 1739 rpm
Pump version A
Pumped liquid Water
Rated current 45024
Rated flow 45.3 US gpm
Rated head 25.26 ft
Rated power - P2 0.37 kW
Rated speed 1730 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Starting current 570-570 %
Type WEG
Type of connection FlexiClamp
Version A

Motor Curves

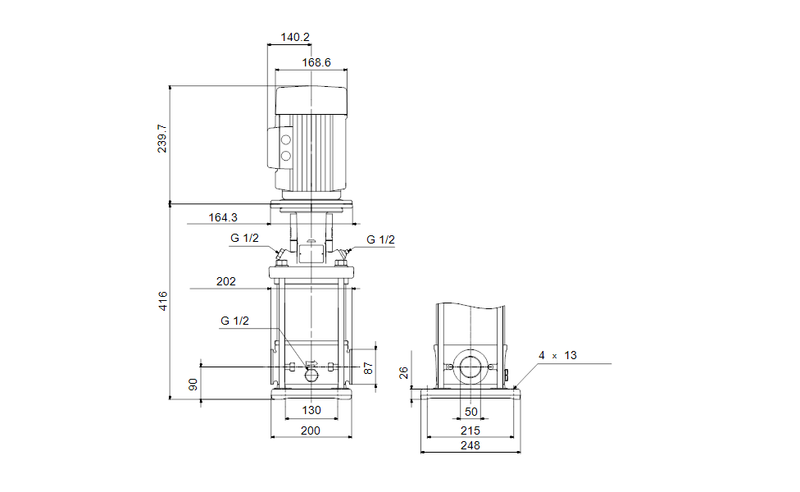

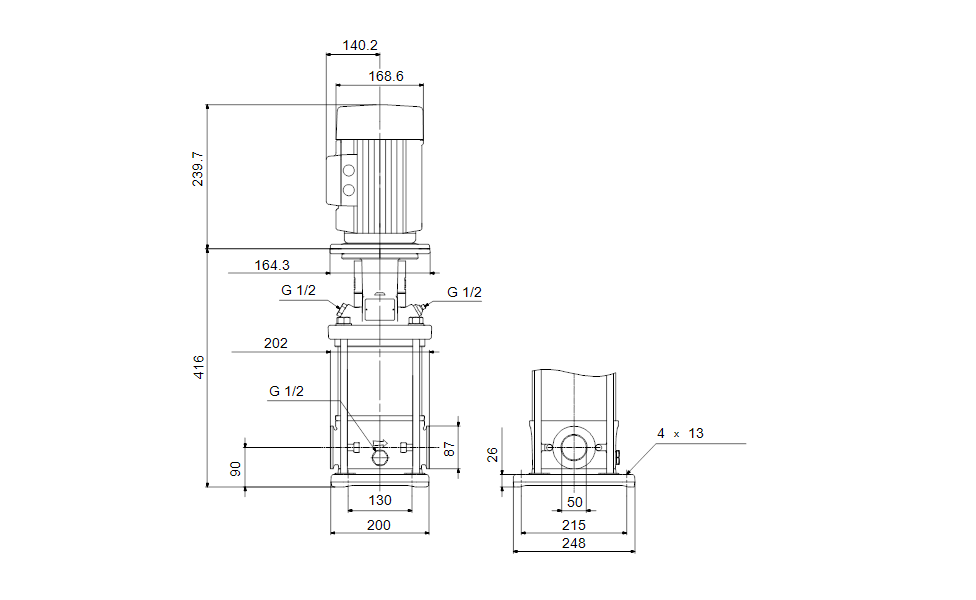

Dimensional Drawing

DWiring Diagram
