Grundfos 96523035 - CRI 10-3 A-CA-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 96523035

Price:
Sale price$8,019.31
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

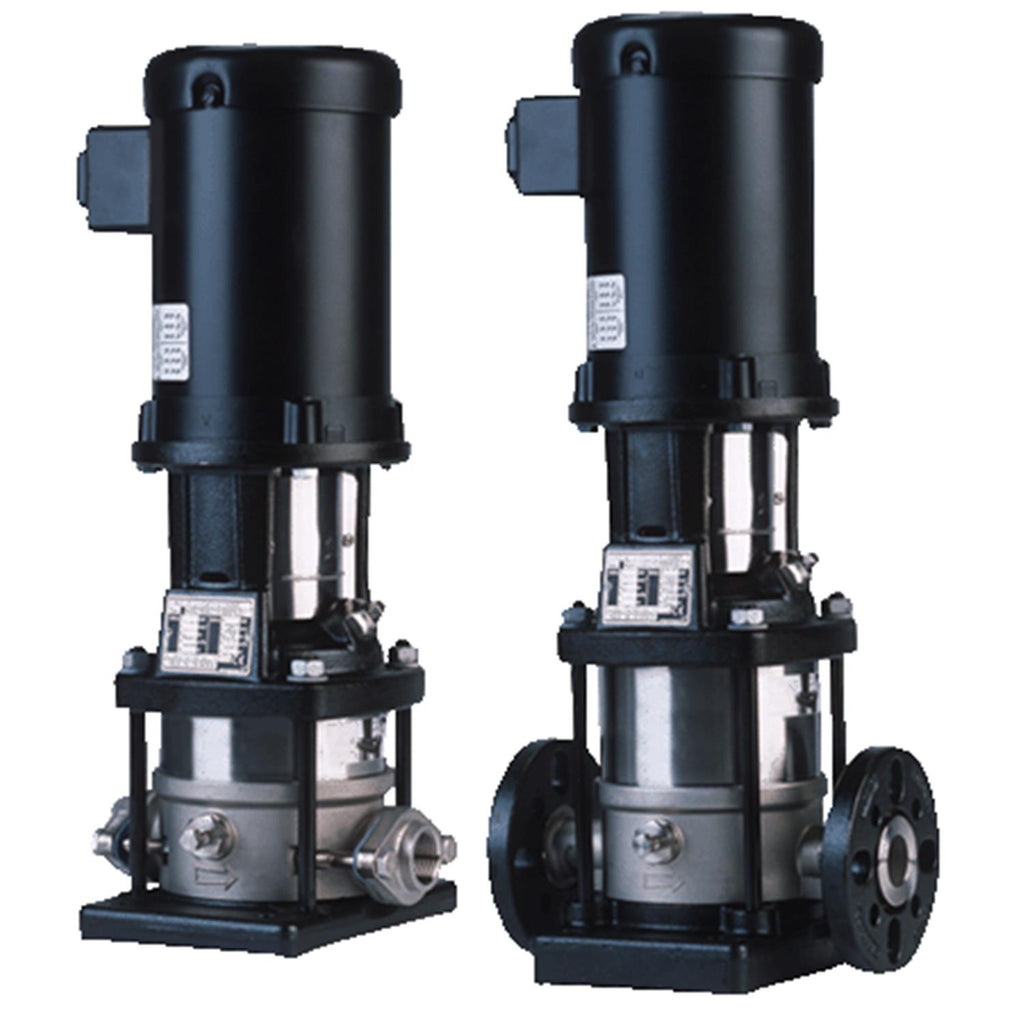

CRI 10-3 A-CA-A-E-HQQE · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI3HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96523035 (CRI 10-3 A-CA-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 53.3US gpm at 114.2ft. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
3HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Max Flow
53.3US gpm
Max Head
114.2ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 10-3 A-CA-A-E-HQQE
Series: CRI
Model Code: CRI 10-3 A-CA-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 96523035
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Power 3HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3500-3520rpm
Pump Speed 3461rpm
Full Load Current 8,50-8,20/4,10A
Motor Type 90HA
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 86.5-86.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 53.3US gpm
Nominal Head 114.2ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard FLEXICLAMP
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CE, EAC, UKCA, SEPRO, RCM
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 10-3 A-CA-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396898360
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection FlexiClamp
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 86.5-86.5%
Flange size for motor 182TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 9,60-9,20/4,60 A
Gross weight 137.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 145 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor protec NONE
Motor standard NEMA
Motor type 90HA
n rpm 3500-3520rpm
Net weight 121.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 3 HP
P2 kW 2.2kW
Phase 3
Power (P2) required by pump 3 HP
Power factor 1 0.85-0.82
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRI 10
Pump 3 HP
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated current 8,50-8,20/4,10 A
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 114.2 ft
Rated head 2 114.2 ft
Rated power - P2 3 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Starting current 850-970 %
Type 90HA
Type of connection FlexiClamp
Version A

Motor Curves

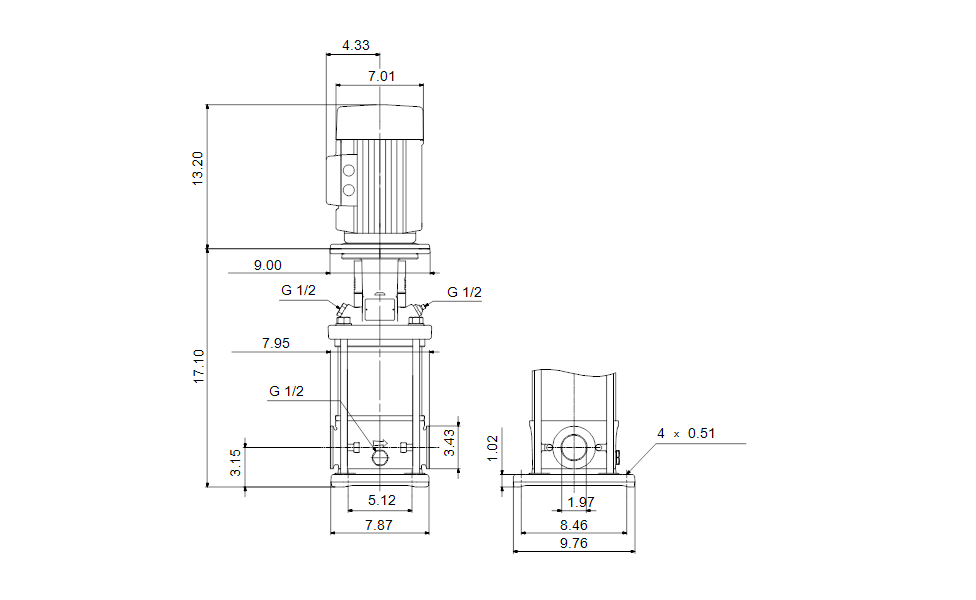

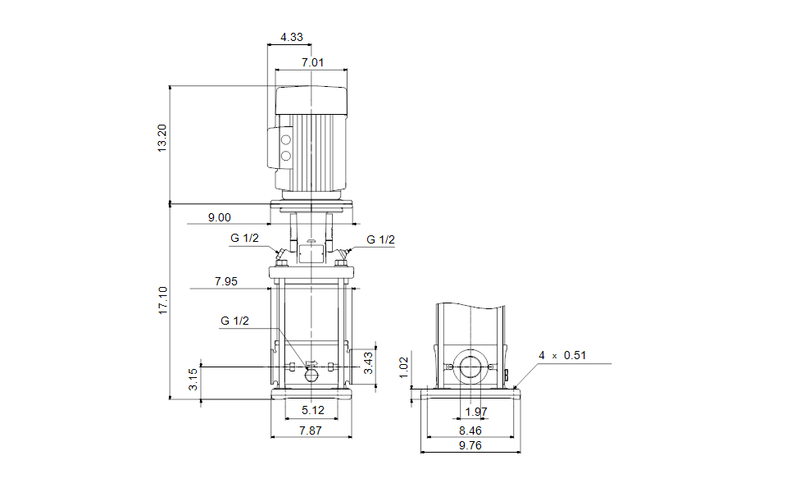

Dimensional Drawing

DWiring Diagram
