Description
The Grundfos 96126847 (CRI 10-17) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design. Nominal performance: 53.3US gpm at 638.2ft. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96126847 |
| Product Series | CRI |
| Series Description | Vertical Multistage Centrifugal Pump — Stainless Steel |
| Frequency | 60 Hz |
| Pump Speed | 3444rpm |
| Nominal Flow | 53.3US gpm |
| Nominal Head | 638.2ft |
| Max Fluid Temperature | 194°F |
| Pipe Standard | PJE (Victaulic) |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQV |
| Approvals / Certifications | NEMA |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature 194°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700396998466
- Applications
- Industrial applications
- Approvals
- NEMA
- Code for rubber
- V
- Code for shaft seal
- HQQV
- Connect code
- P
- Connection
- PJE (Victaulic)
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Flange size for motor
- 254TC
- Gross weight
- 229.0 lb
- Impeller
- Stainless steel
- Impellers
- 17
- Liquid temperature range
- -4 .. 194 °F
- Low NPSH
- N
- Material code
- I
- Material Pricing Group
- 6
- Max pressure at stated temp
- 363 psi / 194 °F
- Maximum head
- 82.02 ft
- Model
- A
- Motor
- 254TC
- Net weight
- 115.0 lb
- Product family
- CRI 10
- Pump speed on which pump data are based
- 3444 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated flow
- 53.3 US gpm
- Rated head
- 638.2 ft
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- V
- Selected liquid temperature
- 68 °F
- Stages
- 18
- Type of connection
- PJE (Victaulic)
- Version
- A

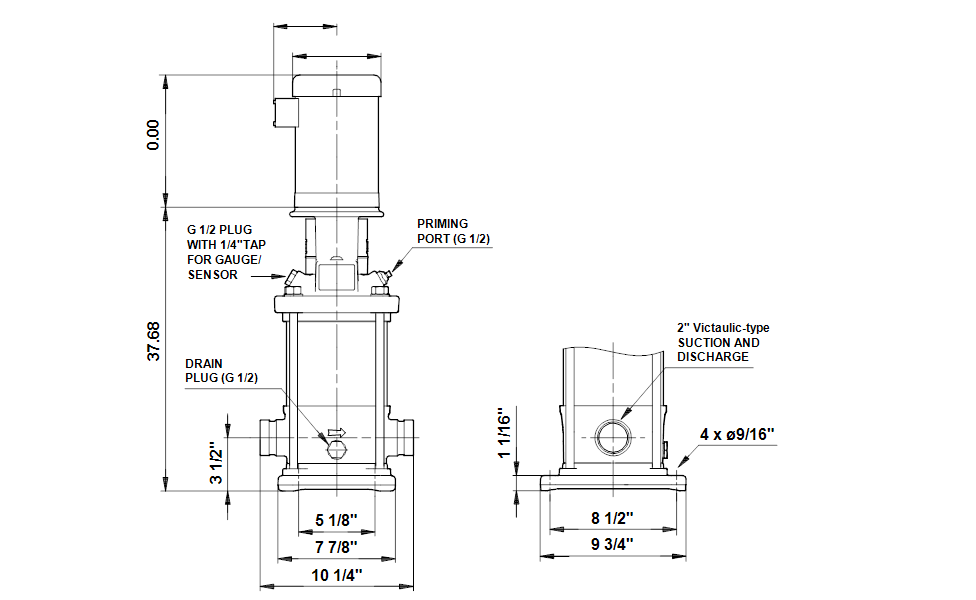

Dimensional Drawing
CR, CRI, CRN, CRT (I & O instructions)
CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)
CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)
CR, CRI, CRN 10, 15 & 20 (Dismantling & Reassembly) (Service manual)
GRUNDFOS CR/CRE, Vertical Multistage Variable Speed System (Leaflet)
