Grundfos 96126833 - CRI 10-17 | Multistage | SelfPriming | Centrifugal | Vertical

GRUNDFOSSKU: 96126833

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRI 10-17 · Vertical Multistage Centrifugal Pump — Stainless Steel
CRI

The Grundfos 96126833 (CRI 10-17) is a Vertical Multistage Centrifugal Pump — Stainless Steel. All materials in contact with liquid in stainless steel EN 1.4301 (304). Compact inline design.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CRI 10-17
Series: CRI
Model Code: CRI 10-17
Technical Specifications
Model Number 96126833
Product Series CRI
Series Description Vertical Multistage Centrifugal Pump — Stainless Steel
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRI pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRI Series
✓ Product Data Sheet — CRI 10-17
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396998152
Applications Industrial applications
Approvals NEMA
Code for rubber V
Code for shaft seal HQQV
Connect code CA
Connection FlexiClamp
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Gross weight 234.0 lb
Impeller Stainless steel
Impellers 17
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code I
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 82.02 ft
Model A
Motor 254TC
Net weight 119.0 lb
Product family CRI 10
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated flow 53.3 US gpm
Rated head 638.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Stages 18
Type of connection FlexiClamp
Version A

Motor Curves

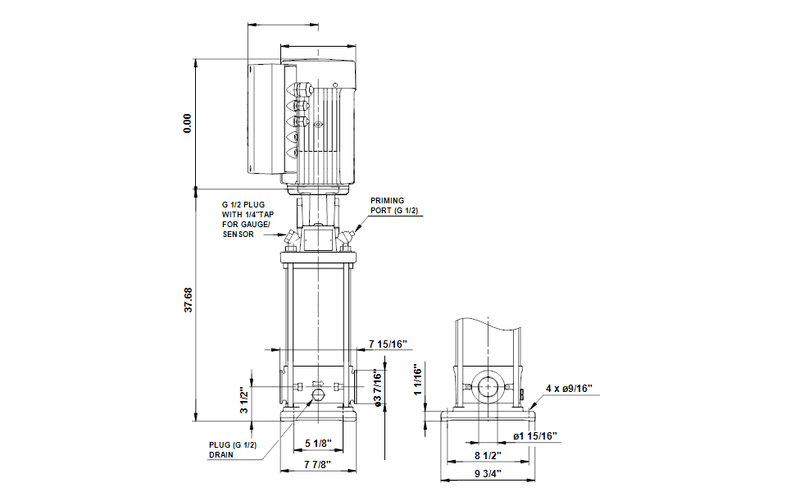

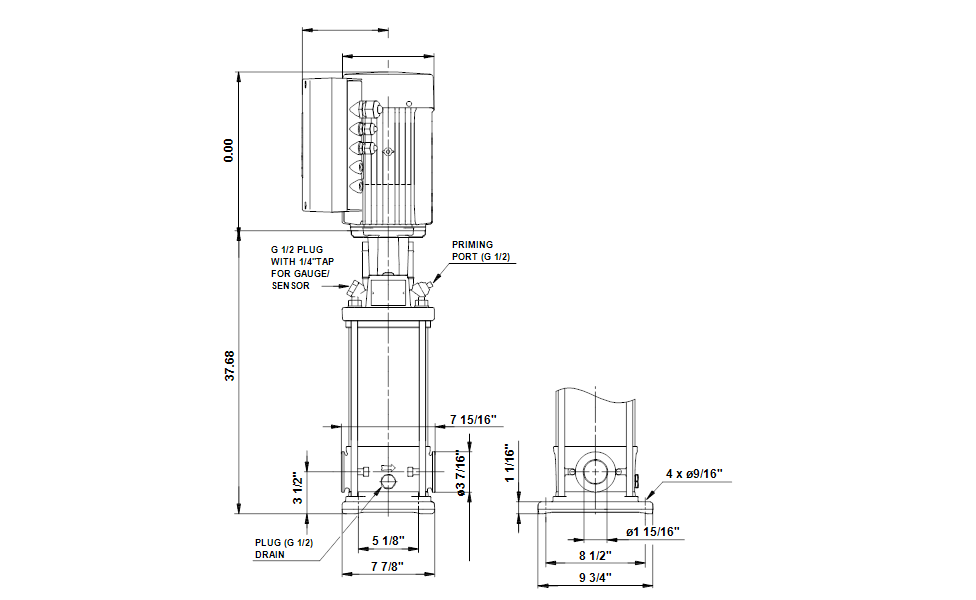

Dimensional Drawing
