Grundfos 96126791 - CRI 10-17 | Multistage | SelfPriming | Centrifugal | Vertical

GRUNDFOSSKU: 96126791

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRI 10-17 Vertical, non-self-priming, multistage, in-line, centrifugal pump for installation in pipe systemsand mounting on a foundation. The pump has the following characteristics: Impellers, intermediate chambers and outersleeve are made ofStainless steel, EN 1. 4301.
Pump head cover and base are made ofStainless steel, EN 1. 4408.
The shaft seal has assembly lengthaccording to EN 12756.
Power transmission is via cast iron splitcoupling.
Pipework connection is via FlexiClampflanges/couplings.

EAN 5700396991405
Applications Industrial applications
Approvals for drinking water ANSI/NSF61
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection FlexiClamp
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 254TC
Gross weight 234.0 lb
Impeller Stainless steel
Impellers 17
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code I
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 82.02 ft
Model A
Motor 254TC
Net weight 119.0 lb
Product family CRI 10
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated flow 53.3 US gpm
Rated head 638.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Stages 18
Type of connection FlexiClamp
Version A

Motor Curves

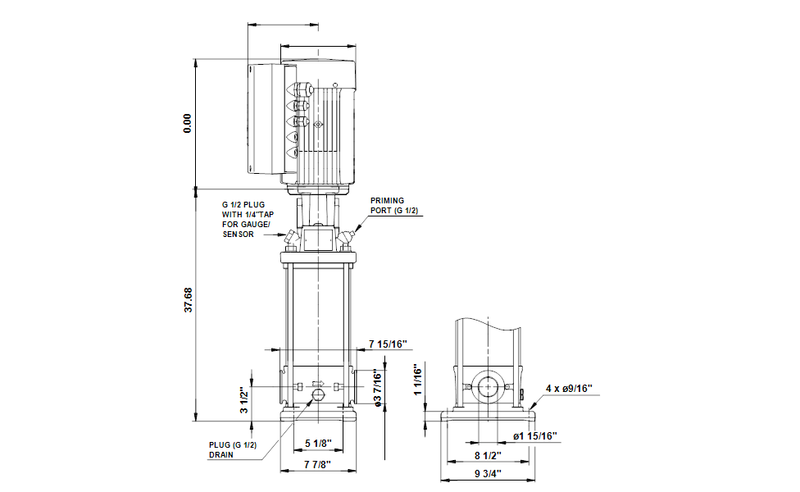

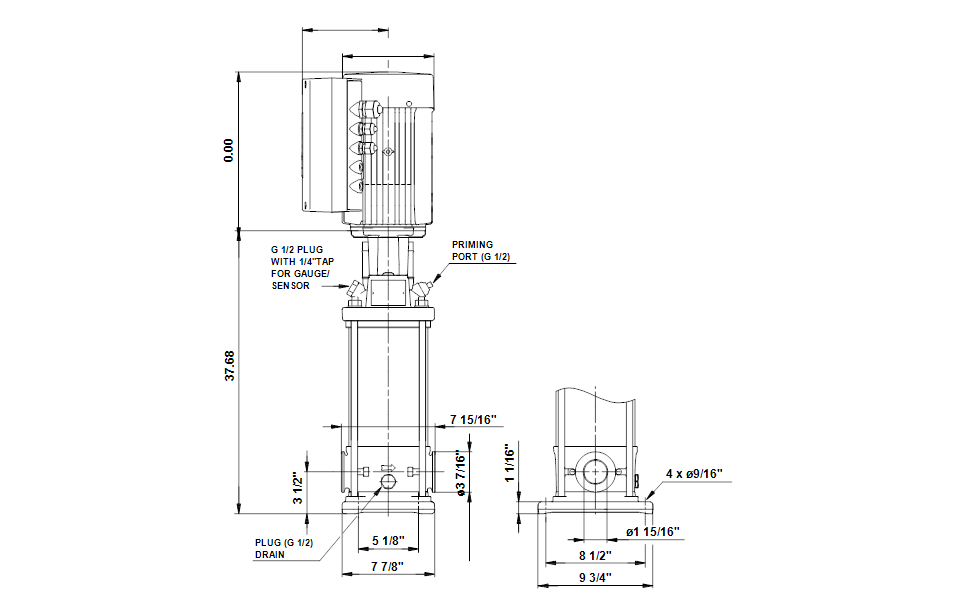

Dimensional Drawing
