Grundfos 99277067 - CRI 10-16 FK-FGJ-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99277067

Price:
Sale price$23,512.50
or Call for most up to date lead times. (781) 281-8905

Description

CRI 10-16 FK-FGJ-A-F-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5713826442965
Actual impeller diameter 3.66 in
Approvals CE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 3.66 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 254.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum head 741.5 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor standard NEMA
Net weight 139.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3450 rpm
Pump version FK
Rated flow 53.3 US gpm
Rated head 593.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 16
Standard NEMA
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

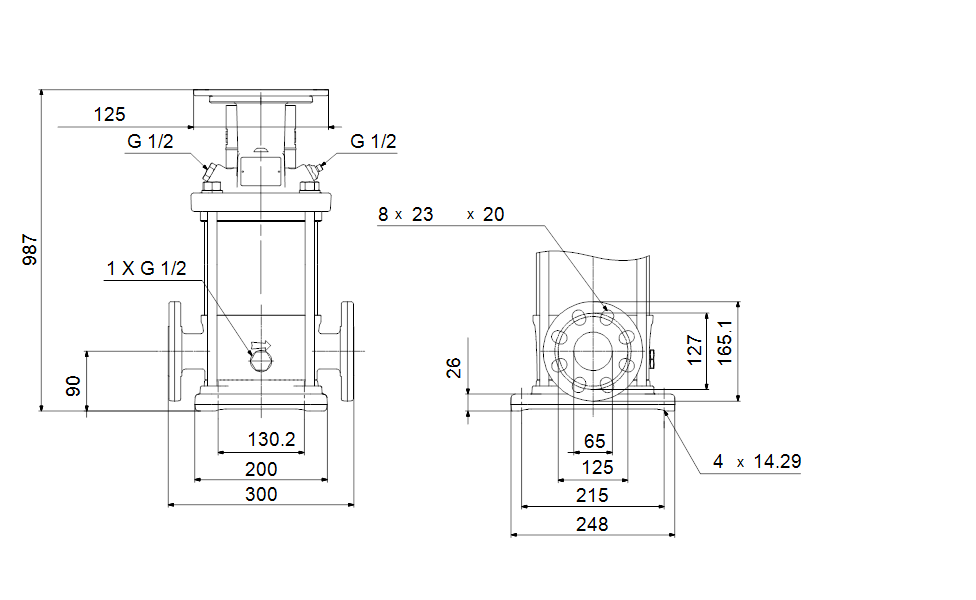

Dimensional Drawing
