Grundfos 96523221 - CRI 10-12 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96523221

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

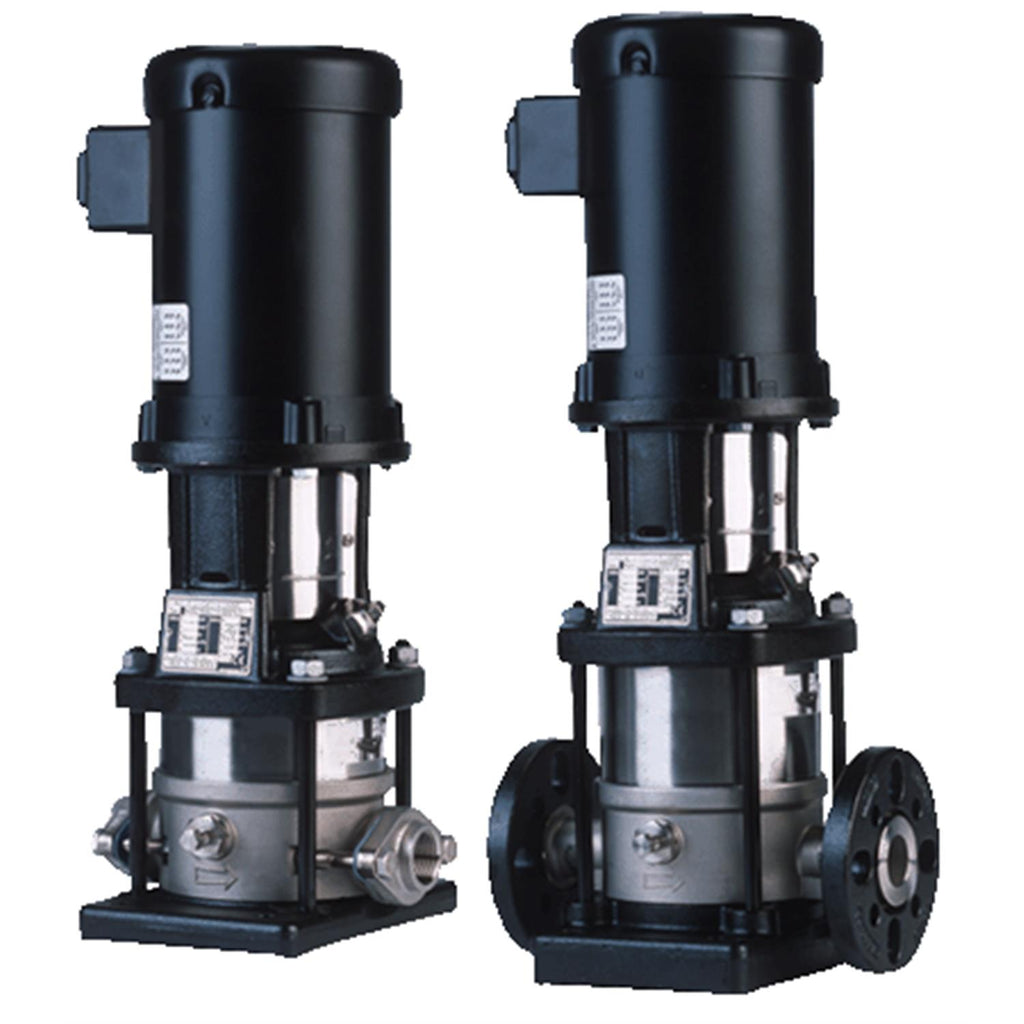

CRI 10-12 A-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700396900391
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 50
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 90.0-90.2%
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 30,5-28,3/14,3 A
Gross weight 234.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 12
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 577.5 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 91.4-89.7 %
Motor efficiency at 3/4 load 90.9-90.7 %
Motor efficiency at full load 1 90.0-90.2 %
Motor protec PTC
Motor standard NEMA
Motor type 132FA
n rpm 3480-3500rpm
Net weight 214.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 10 HP
P2 kW 7.5kW
Phase 3
Power (P2) required by pump 10 HP
Power factor 1 0.87
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRI 10
Pump 10 HP
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated current 26,5-24,6/12,4 A
Rated flow 53.3 US gpm
Rated flow 2 53.3 US gpm
Rated head 446.5 ft
Rated head 2 446.5 ft
Rated power - P2 10 HP
Rated speed 3480-3500 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Starting current 680-900 %
Type 132FA
Type of connection PJE
Version A

Motor Curves

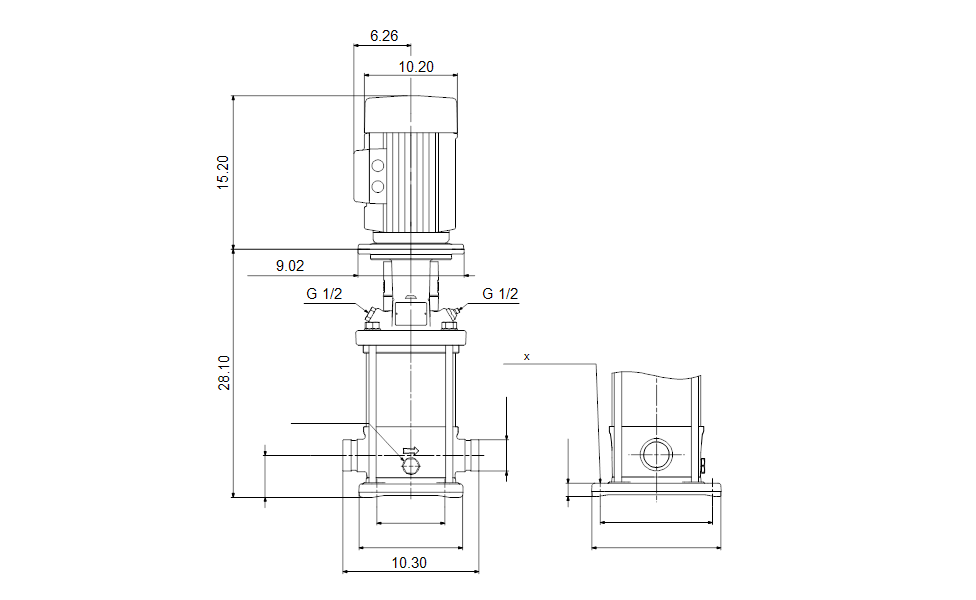

Dimensional Drawing
