Grundfos 92584729 - CRI 1-4 F-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92584729

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92584729 - CRI 1-4 F-FGJ-A-E-HQQE is a vertical multistage centrifugal pump suited for industrial and commercial systems where compact, in-line high-pressure pumping is required. Grundfos builds this model for service technicians and facility managers replacing pumps in multi-stage assemblies.

Key features

  • Designed for industrial applications and service replacements
  • Vertical, in-line multistage centrifugal configuration for high-pressure duties
  • Provides reliable, efficient pressure boosting and quiet operation for continuous use

Applications

Common uses include boiler feed, pressure boosting, HVAC, water supply, and process systems requiring multi-stage high-pressure pumping. Keep claims general and confirm fitment.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92584729

EAN 5715116648613
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 81.1 lb
IE efficiency IE3 74%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 302 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 302 °F
Maximum ambient temperature 104 °F
Maximum head 117.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.68
Motor efficiency at 3/4 load 0.72
Motor efficiency at full load 1 0.74
Motor standard NEMA
Motor type WEG
Net weight 70.1 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.8
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3485 rpm
Pump version F
Pumped liquid Water
Rated current 1.57/0.78 A
Rated flow 9.69 US gpm
Rated head 89.24 ft
Rated power - P2 0.37 kW
Rated speed 3435 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 4
Standard NEMA
Starting current 7.7
Type WEG
Type of connection DIN / ANSI / JIS
Version F

Motor Curves

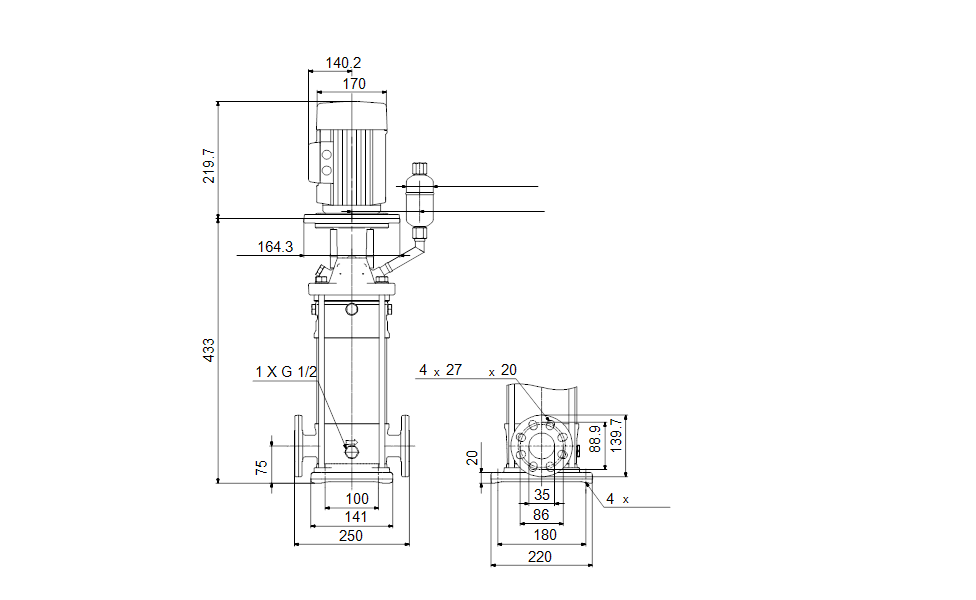

Dimensional Drawing

DWiring Diagram
