Grundfos 99252741 - CRI 1-2 A-CA-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99252741

Price:
Sale price$3,152.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRI 1-2 A-CA-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713826034511
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 53.2 lb
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 59.39 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.7
Motor standard NEMA
Motor type BALDOR
Net weight 42.2 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.25 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.25 kW
Pump speed on which pump data are based 3425 rpm
Pump version A
Pumped liquid Water
Rated current 1.4/0.7 A
Rated flow 9.69 US gpm
Rated head 45.28 ft
Rated power - P2 0.25 kW
Rated speed 3450 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.35
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard NEMA
Type BALDOR
Type of connection FlexiClamp
Version A

Motor Curves

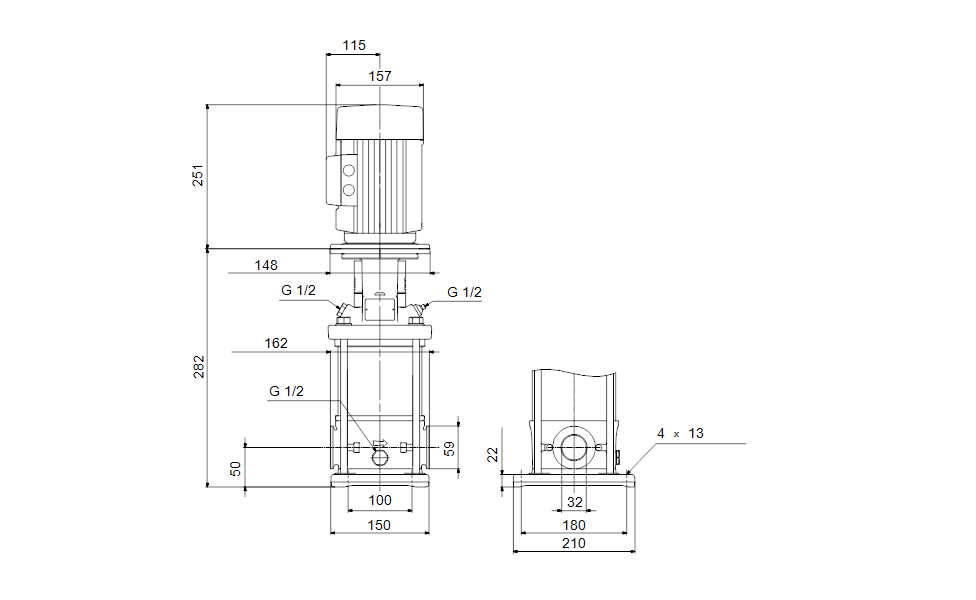

Dimensional Drawing

DWiring Diagram
