Grundfos 99266497 - CRE 95-1 N-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99266497

Price:
Sale price$17,075.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CRE 95-1 N-G-A-E-HQQE is a vertical multistage centrifugal pump suited for industrial and commercial fluid transfer where compact, high-pressure performance is required. It’s used by maintenance teams and system integrators seeking reliable inline pumping solutions.

Key features

  • Vertical multistage centrifugal design for space-saving installations
  • Common in high-pressure, inline and vertical multistage applications
  • Engineered for industrial durability and consistent flow performance

Applications

Typical uses include boiler feed, pressure boosting, HVAC circulation, water treatment, and industrial process systems where a compact, high-pressure pump is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99266497

EAN 5713826255916
Applications Industrial applications
Actual impeller diameter 5.63 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection YES
Code for rubber E
Code for shaft seal HQQE
Config. file no 99441818
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.63 in
DOE Pump Energy Index VL 0.45
Enclosure class (IEC 34-5) IP55
Flange size for motor 256TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 787.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 149.3 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type 160AB
Net weight 511.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89
Pressure rating for connection 150 lb
Pressure sensor Y
Product family CRE 95
Pump 15 kW
Pump speed on which pump data are based 3540 rpm
Pump version N
Pumped liquid Water
Rated current 26 A
Rated flow 500 US gpm
Rated head 105.6 ft
Rated power - P2 15 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Standard NEMA
Support bearing Graflon
Terminal box position 6
Thrust handling device N
Type 160AB
Type of connection ANSI
Version N

Motor Curves

Dimensional Drawing

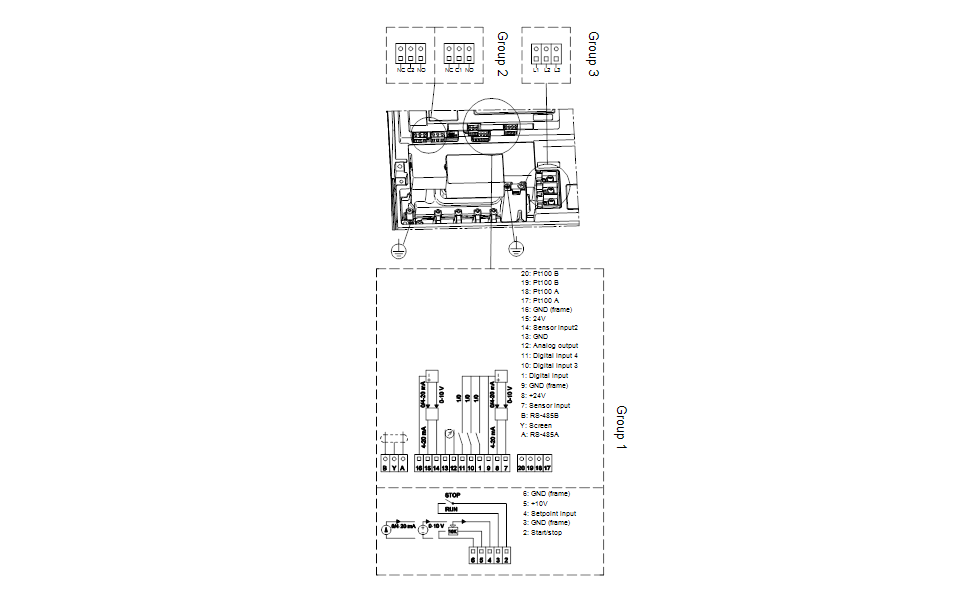

DWiring Diagram
