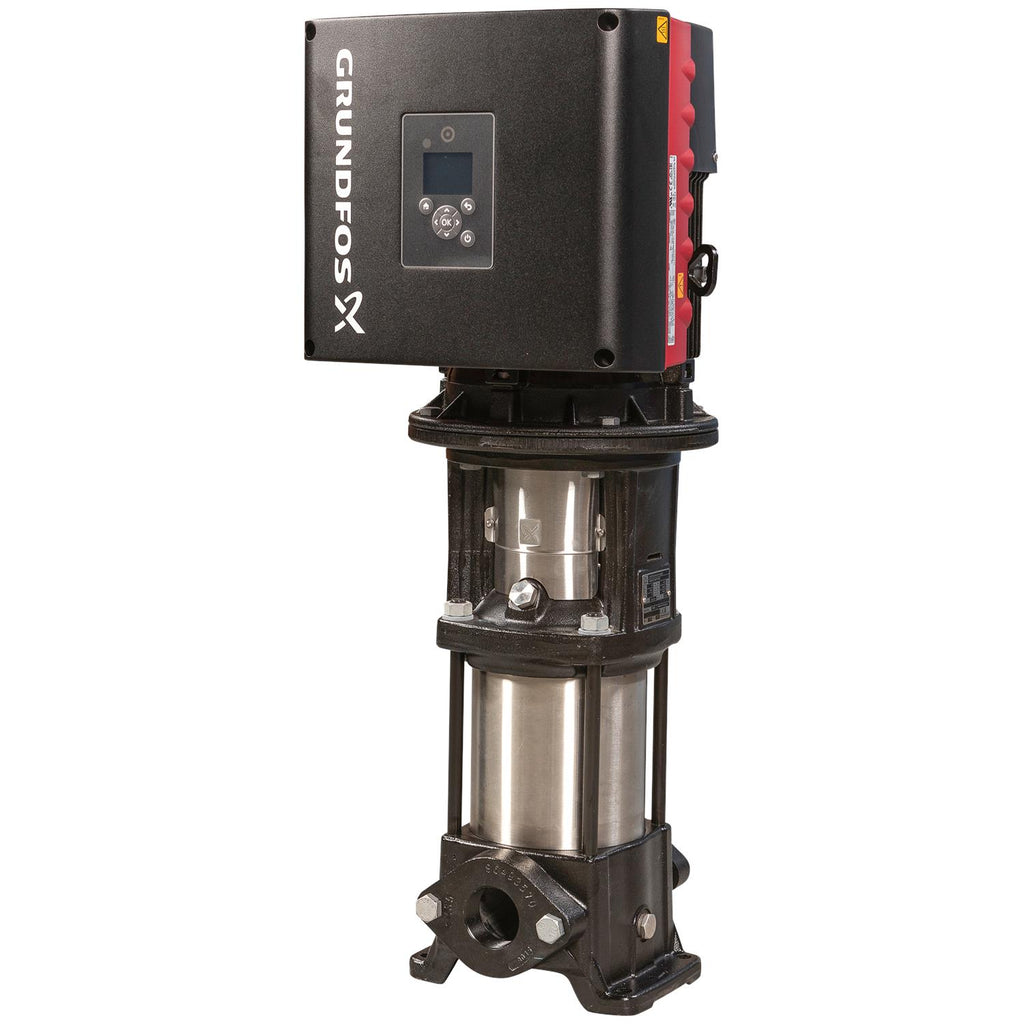

Grundfos 98497319 - CRE 5-6 A-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98497319

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497319 CRE 5-6 A-B-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial fluid handling and high-pressure in-line systems. It suits technicians and maintenance teams needing a compact, high-head solution.

Key features

  • Designed for industrial applications and continuous operation
  • Vertical multistage centrifugal configuration for high pressure and compact footprint
  • Delivers reliable pressure boosting and efficient hydraulic performance for longer service intervals

Applications

Ideal for boiler feed, pressure boosting, industrial process circulation, water treatment, and other high-pressure in-line multistage duties where compact vertical installation is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497319

EAN 5711496141546
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499252
Connect code B
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 77.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 203.8 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.894
Motor standard NEMA
Motor type 90C
Net weight 66.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.87
Pressure rating for connection PN 16
Pressure sensor N
Product family CRE 5
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Water
Rated current 2.65 A
Rated flow 30.4 US gpm
Rated head 147.6 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 6
Standard NEMA
Terminal box position 6
Type 90C
Type of connection Oval / NPT(F)
Version A

Motor Curves

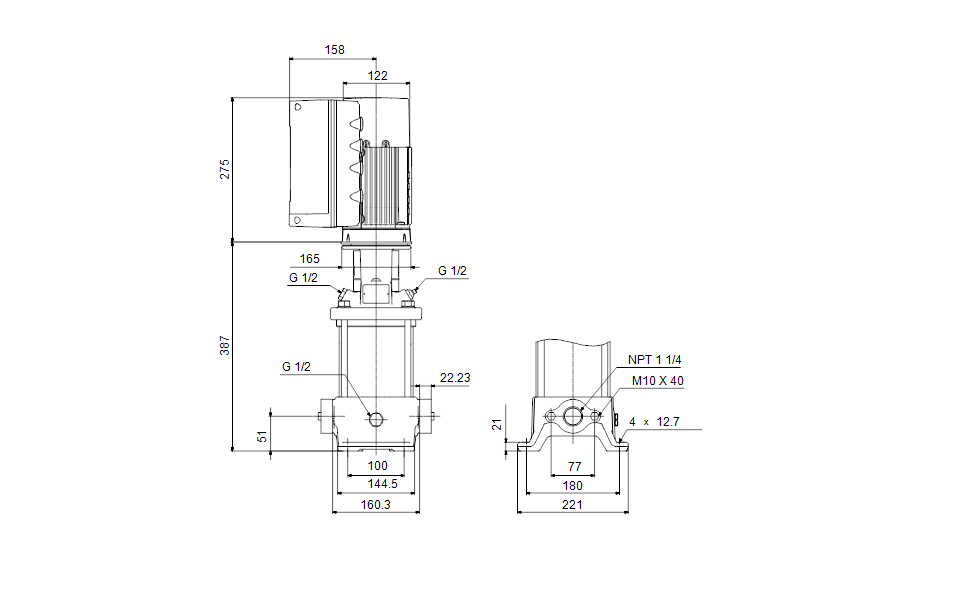

Dimensional Drawing

DWiring Diagram
