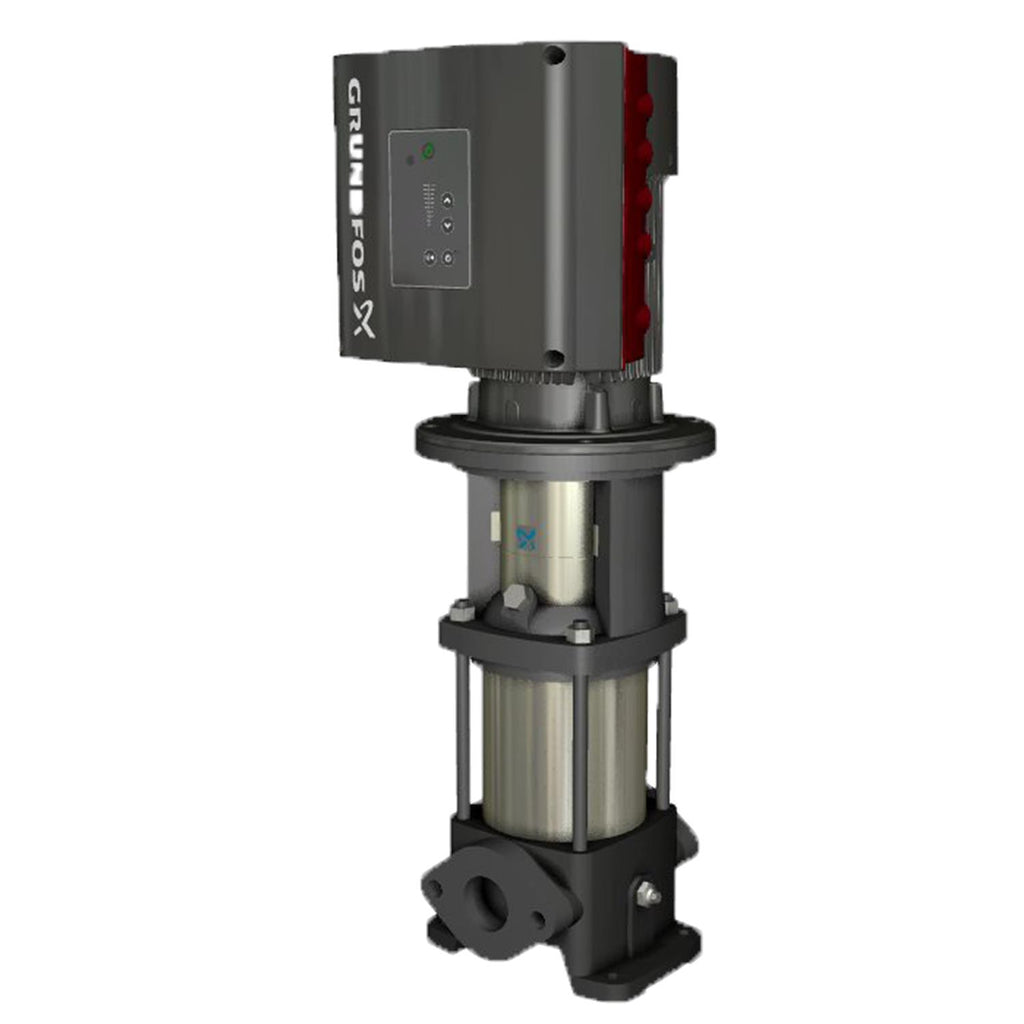

Grundfos 99210590 - CRE 5-2 B-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99210590

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99210590 - CRE 5-2 B-B-A-E-HQQE is a vertical, multistage centrifugal pump suited for industrial and commercial systems. This replacement unit fits assemblies where compact, high-pressure vertical multistage performance is required.

Key features

  • Designed for industrial applications and OEM replacement use
  • Vertical multistage centrifugal configuration for space-saving installation
  • Provides reliable high-pressure pumping for booster and process systems

Applications

Typical uses include booster stations, process water systems, HVAC pressure boosting, high-pressure cleaning, and other industrial fluid transfer tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99210590

EAN 5712608768170
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499249
Connect code B
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 66.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 67.26 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.864
Motor standard NEMA
Motor type 80A
Net weight 55.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.73
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3439 rpm
Pump version B
Pumped liquid Water
Rated current 1.65 A
Rated flow 30.4 US gpm
Rated head 42.32 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 2
Standard NEMA
Type 80A
Type of connection Oval / NPT(F)
Version B

Motor Curves

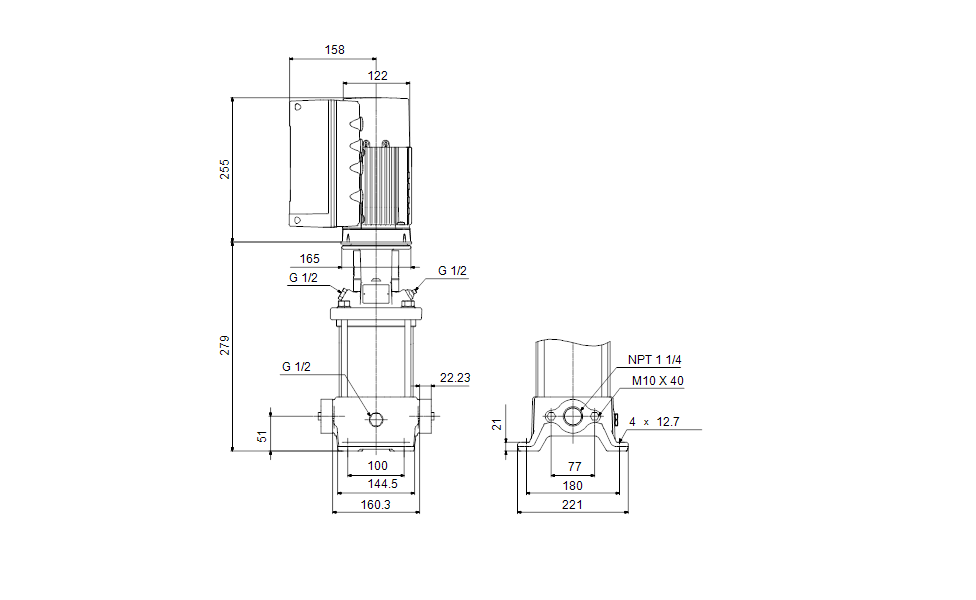

Dimensional Drawing

DWiring Diagram
