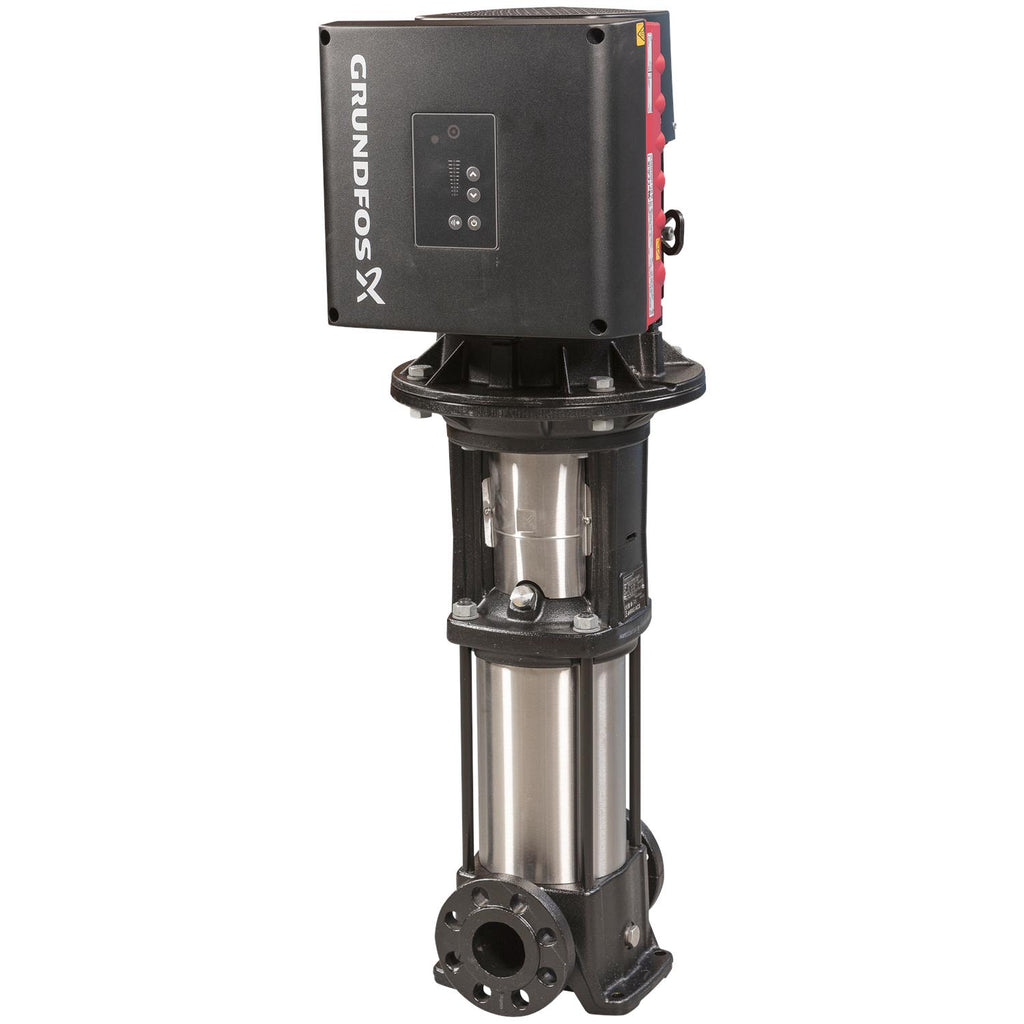

Grundfos 99240950 - CRE 5-16 K-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99240950

Price:
Sale price$13,693.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99240950 CRE 5-16 K-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid-handling where reliable high-pressure, inline performance is required. Technicians and facility maintenance teams commonly install this model in systems needing staged pressure boosts.

Key features

  • Manufactured by Grundfos for various industrial applications, emphasizing quality construction
  • Vertical multistage centrifugal design suitable for inline, high-pressure service (Cre family)
  • Delivers consistent pressure staging and efficient operation to reduce system cycling and energy use

Applications

Typical uses include boiler feed, pressure boosting, water supply and circulation in commercial and light industrial systems where vertical, multi-stage centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99240950

EAN 5712609335319
Applications Industrial applications
Actual impeller diameter 2.88 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074136
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 164.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 516.4 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 146.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 5
Pump 5.5 kW
Pump speed on which pump data are based 3461 rpm
Pump version K
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 30.4 US gpm
Rated head 392.7 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 16
Standard NEMA
Terminal box position 6
Type 132E
Type of connection DIN / ANSI / JIS
Version K
