Grundfos 92550956 - CRE 45-1 NP-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92550956

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92550956 - CRE 45-1 NP-G-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid handling applications. This model fits systems requiring reliable in-line, high-pressure pumping performance.

Key features

  • Industrial-grade construction manufactured by Grundfos for durable operation
  • Vertical multistage, in-line centrifugal design suited for high pressure service
  • Efficient hydraulic staging that provides consistent flow and reduced downtime

Applications

Common uses include boiler feed, water supply, pressure boosting, HVAC, and other industrial process systems where compact vertical multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92550956

EAN 5715116120485
Actual impeller diameter 5.37 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99303494
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.37 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 236.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 126.6 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type 132F
Net weight 218.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.94
Pressure rating for connection PN 16
Pressure sensor Y
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version NP
Pumped liquid Water
Rated current 20.0-16.6 A
Rated flow 238 US gpm
Rated head 92.2 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type 132F
Type of connection ANSI
Version NP

Motor Curves

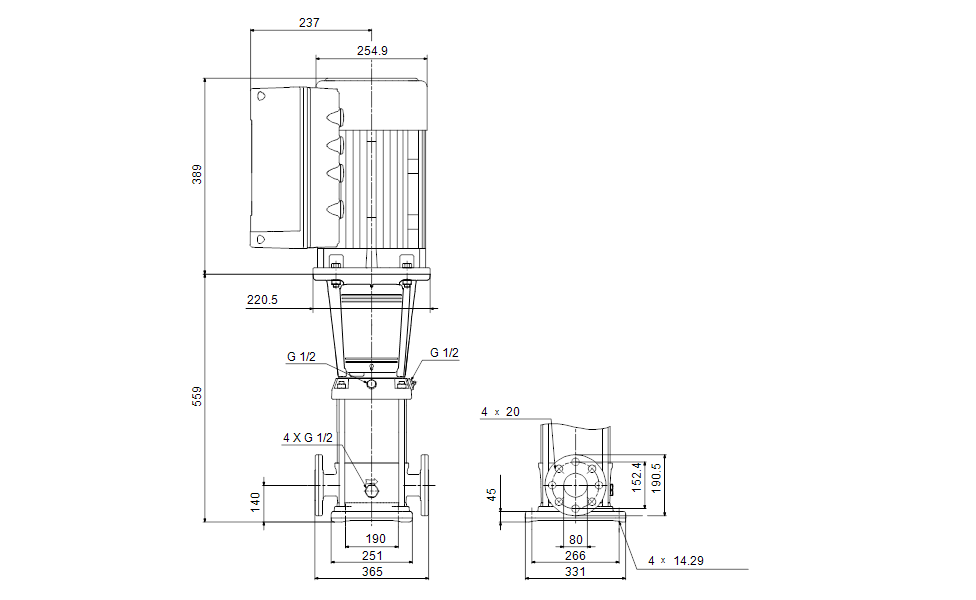

Dimensional Drawing

DWiring Diagram
