Grundfos 99381145 - CRE 32-3-2 N-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99381145

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99381145 - CRE 32-3-2 N-G-A-E-HQQE is a vertical, multistage centrifugal pump suited for industrial and commercial installations where compact high-pressure pumping is required. It is used by facility maintenance, HVAC technicians, and process engineers.

Key features

  • Manufactured by Grundfos for industrial applications and service replacement
  • Vertical, multistage centrifugal design suited for in-line and high-pressure systems
  • Delivers reliable pressure boosting and efficient operation for continuous duty

Applications

Typical uses include boiler feed, pressure boosting, HVAC circulation, process water transfer, and general industrial fluid handling where a compact vertical multistage pump is preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99381145

EAN 5713828181640
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074286
Connect code G
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 247.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 241.5 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 229.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 7.5 kW
Power factor 1 0.91-0.90
Pressure rating for connection PN 16
Pressure sensor Y
Pump 7.5 kW
Pump speed on which pump data are based 3470 rpm
Pump version N
Pumped liquid Water
Rated current 12.4-11.5 A
Rated flow 159 US gpm
Rated head 180.1 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type 132F
Type of connection ANSI
Version N

Motor Curves

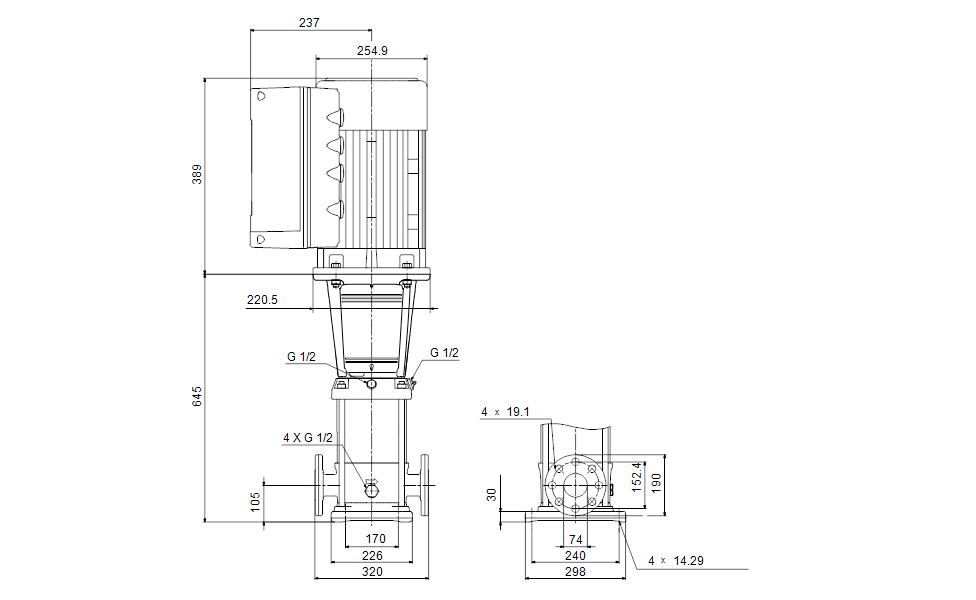

Dimensional Drawing

DWiring Diagram
