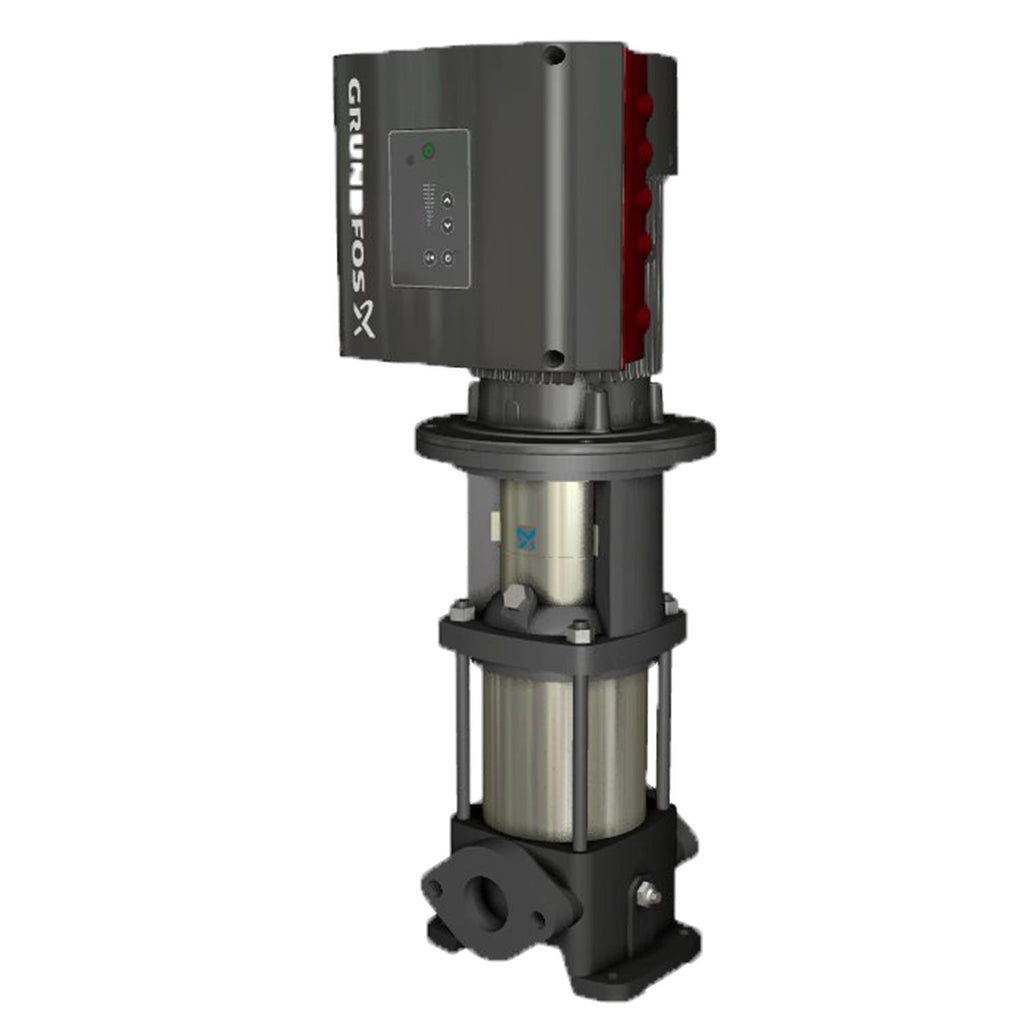

Grundfos 99186046 - CRE 3-6 A-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99186046

Price:
Sale price$5,629.17
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99186046 - CRE 3-6 A-B-A-E-HQQE is a vertical multistage centrifugal pump built for industrial and commercial systems; common with applications requiring reliable high-pressure, inline pumping. This replacement unit suits technicians and facilities managers maintaining Grundfos systems.

Key features

  • Manufactured by Grundfos for industrial applications and service specials
  • Vertical, multistage centrifugal design for high-pressure, inline service
  • Compact, serviceable construction for straightforward installation and maintenance

Applications

Typical uses include pressure boosting, boiler feed, HVAC circulation, process water transfer, and other industrial high-pressure inline duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99186046

EAN 5712608316005
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498870
Connect code B
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 67.9 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 187 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.869
Motor standard NEMA
Motor type 80B
Net weight 56.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.99
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3450 rpm
Pump version A
Pumped liquid Water
Rated current 6.70-5.60 A
Rated flow 15.4 US gpm
Rated head 137.5 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 6
Standard NEMA
Type 80B
Type of connection Oval / NPT(F)
Version A

Motor Curves

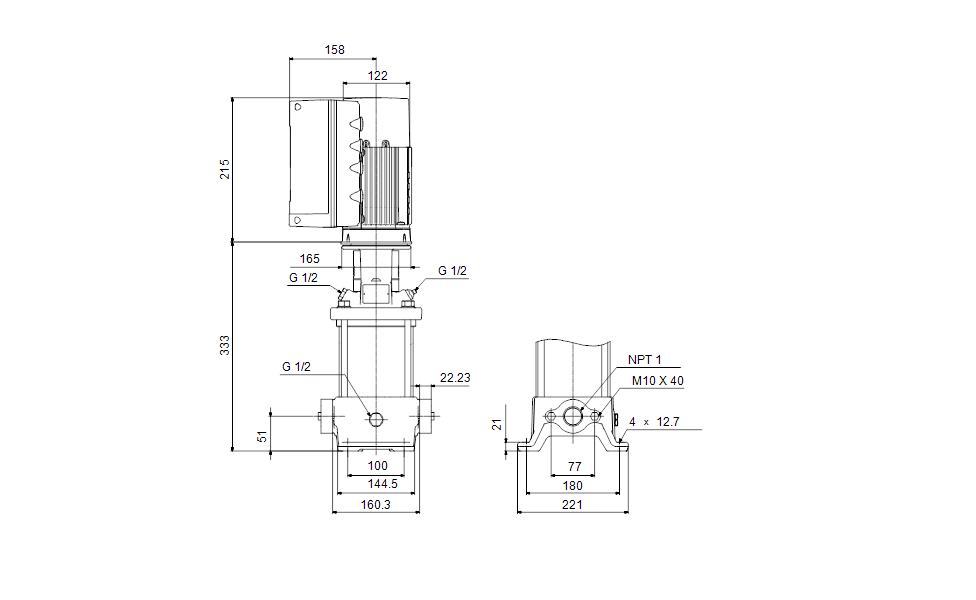

Dimensional Drawing

DWiring Diagram
