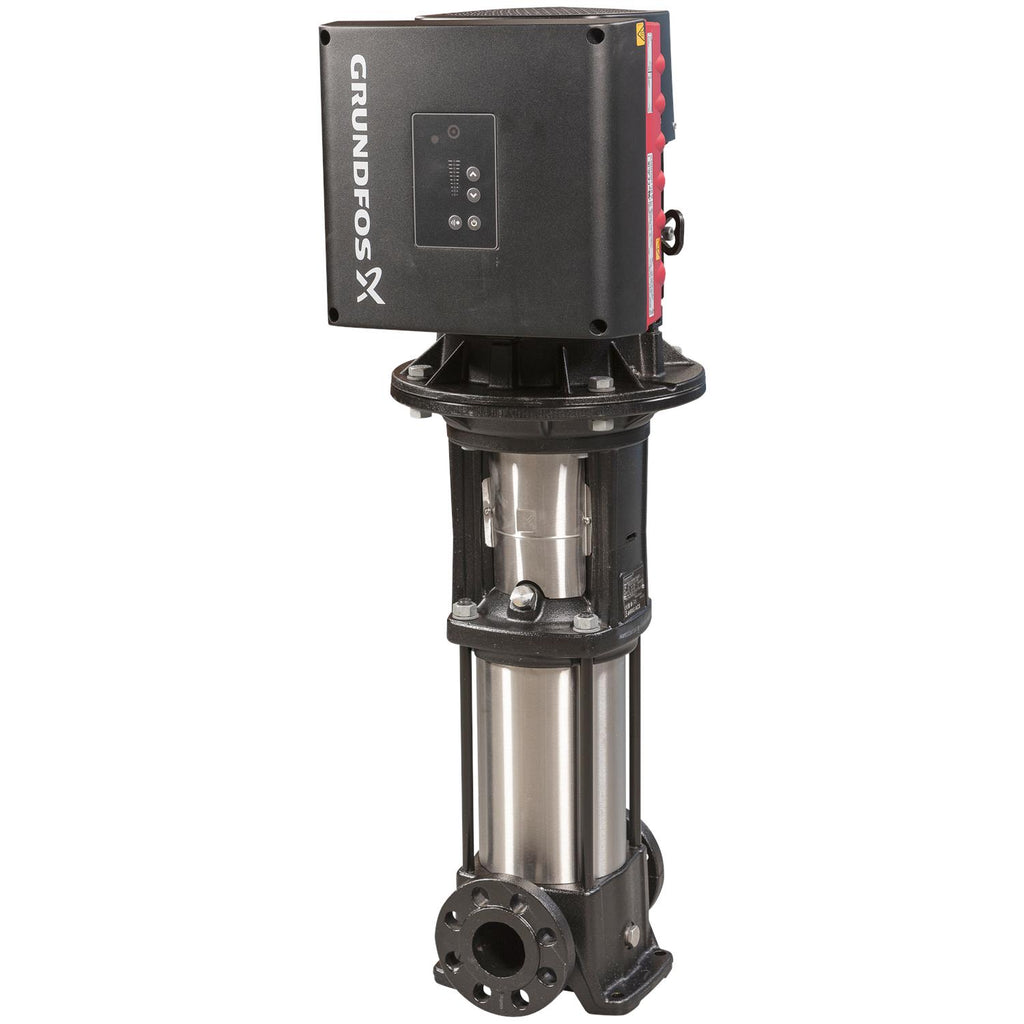

Grundfos 99240899 - CRE 3-25 K-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99240899

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99240899 - CRE 3-25 K-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for inline high-pressure applications and industrial process systems. Contractors, facility maintenance teams, and OEMs use this model where reliable, compact multistage pumping is required.

Key features

  • Vertical multistage centrifugal design for space-saving installation
  • Suitable for high-pressure, inline and multistage service based on product family tags
  • Delivers consistent flow and pressure for industrial and commercial systems

Applications

Ideal for water supply, pressure boosting, HVAC, and industrial process circulation where compact, vertical multistage pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99240899

EAN 5712609334428
Applications Industrial applications
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074100
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 150.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 790.4 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 132.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.90-0.88
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 3
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version K
Pumped liquid Water
Rated current 6.20-5.80 A
Rated flow 15.4 US gpm
Rated head 602.4 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 25
Standard NEMA
Terminal box position 6
Type 112C
Type of connection DIN / ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
