Grundfos 99243698 - CRE 20-6 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99243698

Price:
Sale price$20,141.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

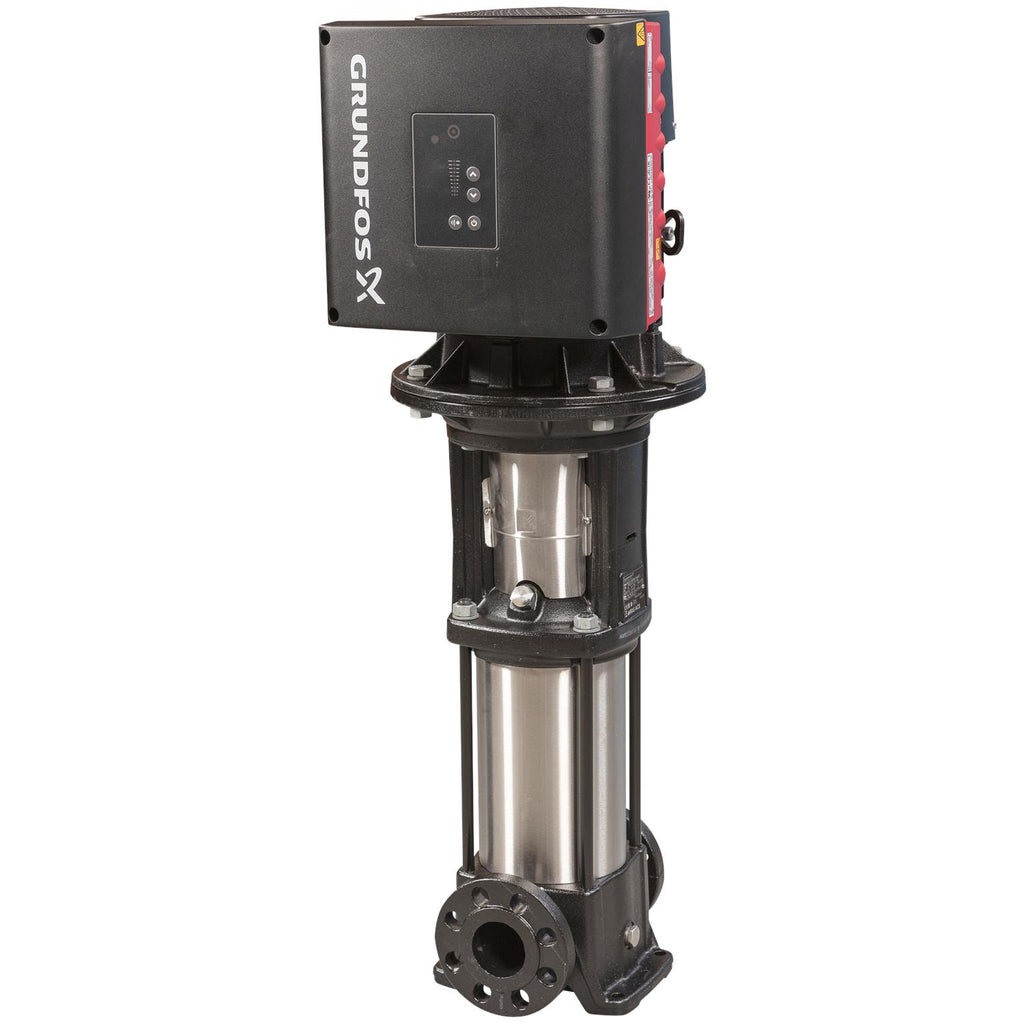

Grundfos 99243698 is a CRE 20-6 K-GJ-A-E-HQQE vertical multistage centrifugal pump designed for industrial and commercial fluid handling where compact, high-pressure in-line pumping is required.

Key features

  • Vertical multistage centrifugal design for compact footprint and high head capability
  • In-line configuration suited for system integration and simple piping
  • Built for high-pressure applications, offering reliable pressure boosting and consistent flow

Applications

Typical uses include industrial water transfer, boiler feed, HVAC systems, pressure boosting, and general process service where a vertical multistage centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99243698

EAN 5712609368751
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074253
Connect code GJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.44
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 254TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 320.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 440 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Net weight 234.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.92-0.91
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 20
Pump 11 kW
Pump speed on which pump data are based 3497 rpm
Pump version K
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 111 US gpm
Rated head 357 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Terminal box position 6
Type 160H
Type of connection ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
