Grundfos 92576691 - CRE 20-4 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92576691

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRE 20-4 A-GJ-A-E-HQQE · Vertical Multistage Centrifugal Pump — Variable Speed
CRE10HP440-480V3.0-Phase60 HzIE5IP55Stainless steel

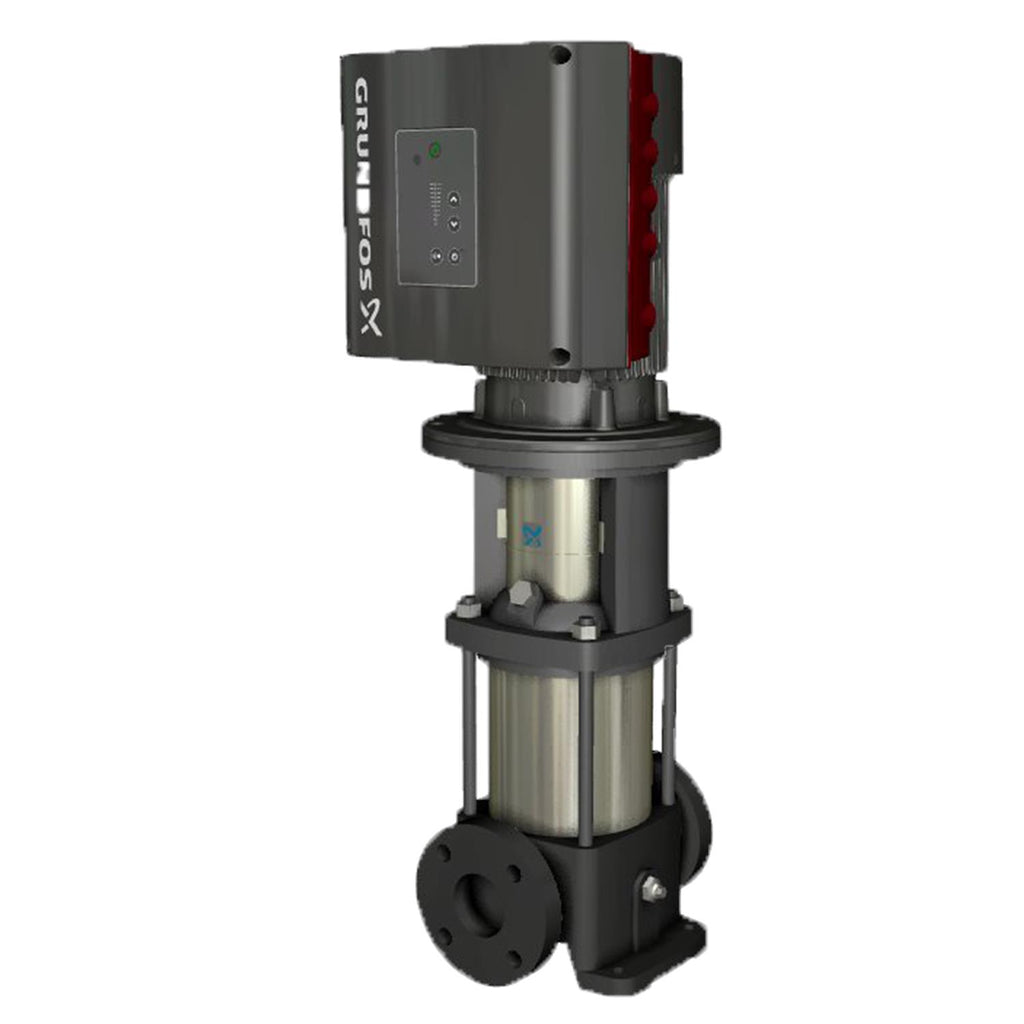

The Grundfos 92576691 (CRE 20-4 A-GJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — Variable Speed. Cast iron head and base, stainless steel wetted parts, with integrated variable frequency drive and IE5-rated permanent magnet motor for energy-optimized pressure control. Nominal performance: 107US gpm at 220ft. Rated 440-480V, 3.0-Phase, 60 Hz.

Power
10HP
Voltage
440-480V
Phase
3.0-Phase
Max Flow
107US gpm
Max Head
220ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Integrated Variable Frequency Drive

The VFD is built into the pump head — no external drive cabinet, no panel wiring, no drive-to-motor cable. Reduces panel space, installation cost, and failure points.

IE5 Permanent Magnet Motor

CRE uses a Grundfos MGE permanent magnet motor rated IE5 — the highest commercially available efficiency class. Significant energy reduction vs IE3 motors at partial load.

Proportional Pressure Control

AUTOADAPT automatically adjusts set point based on actual system demand. No manual curve adjustment needed after commissioning.

iSOLUTIONS Ready

CRE supports Grundfos GO app, CIM communication modules (PROFIBUS, MODBUS, BACnet), and remote monitoring. Full integration into building management systems.

Soft Start Built In

The integrated drive provides controlled ramp-up, eliminating water hammer and reducing mechanical stress on seals and couplings at every start.

Pump Protection Built In

Dry-run protection, over-temperature shutdown, and motor current monitoring are standard in every CRE. No external protection relay required.

Model Information — CRE 20-4 A-GJ-A-E-HQQE
Series: CRE
Model Code: CRE 20-4 A-GJ-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 92576691
Product Series CRE
Series Description Vertical Multistage Centrifugal Pump — Variable Speed
Power 10HP
Voltage 440-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3505rpm
Full Load Current 12,4-11,5A
Motor Type 132F
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 92.5%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 107US gpm
Nominal Head 220ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard ANSI / JIS
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRE Series
✓ Product Data Sheet — CRE 20-4 A-GJ-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715116526621
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074244
Connect code GJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 291.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 274.3 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 205.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.91-0.90
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3470 rpm
Pump version A
Pumped liquid Water
Rated current 12.4-11.5 A
Rated flow 111 US gpm
Rated head 210.3 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type 132F
Type of connection ANSI / JIS
Version A

Motor Curves

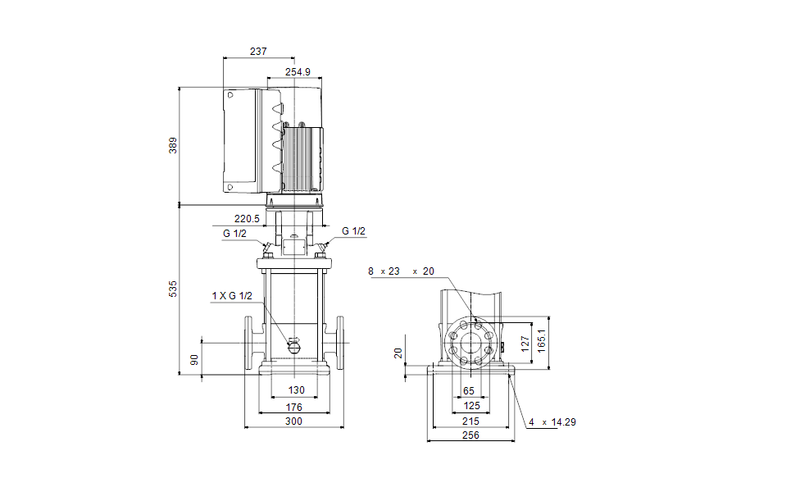

Dimensional Drawing
