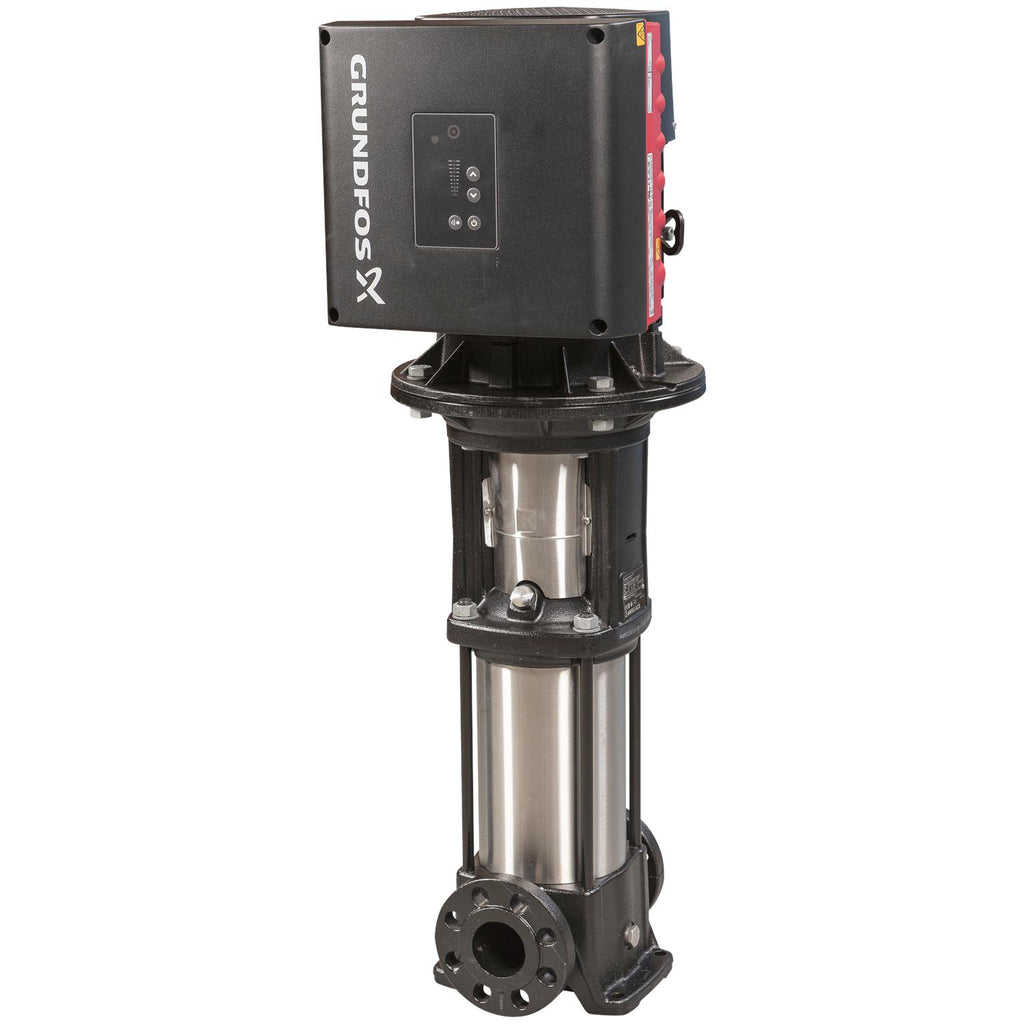

Grundfos 99243682 - CRE 20-2 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99243682

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99243682 - CRE 20-2 K-GJ-A-E-HQQE is a vertical multistage centrifugal pump suited for inline, high-pressure applications; it’s used by contractors and facilities managers for fluid transfer and pressure-boosting tasks.

Key features

  • Designed for various industrial applications and engineered for reliable operation
  • Vertical, multistage centrifugal configuration for compact footprint and high head
  • Delivers efficient pressure boosting and stable flow for system performance

Applications

Typical uses include high-pressure water supply, boiler feed, HVAC systems, industrial process circulation, and pressure-boosting in commercial and municipal installations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99243682

EAN 5712609368584
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074235
Connect code GJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.44
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 185.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 158.1 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 170.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 20
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version K
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 111 US gpm
Rated head 128 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Terminal box position 6
Type 132E
Type of connection ANSI / JIS
Version K
