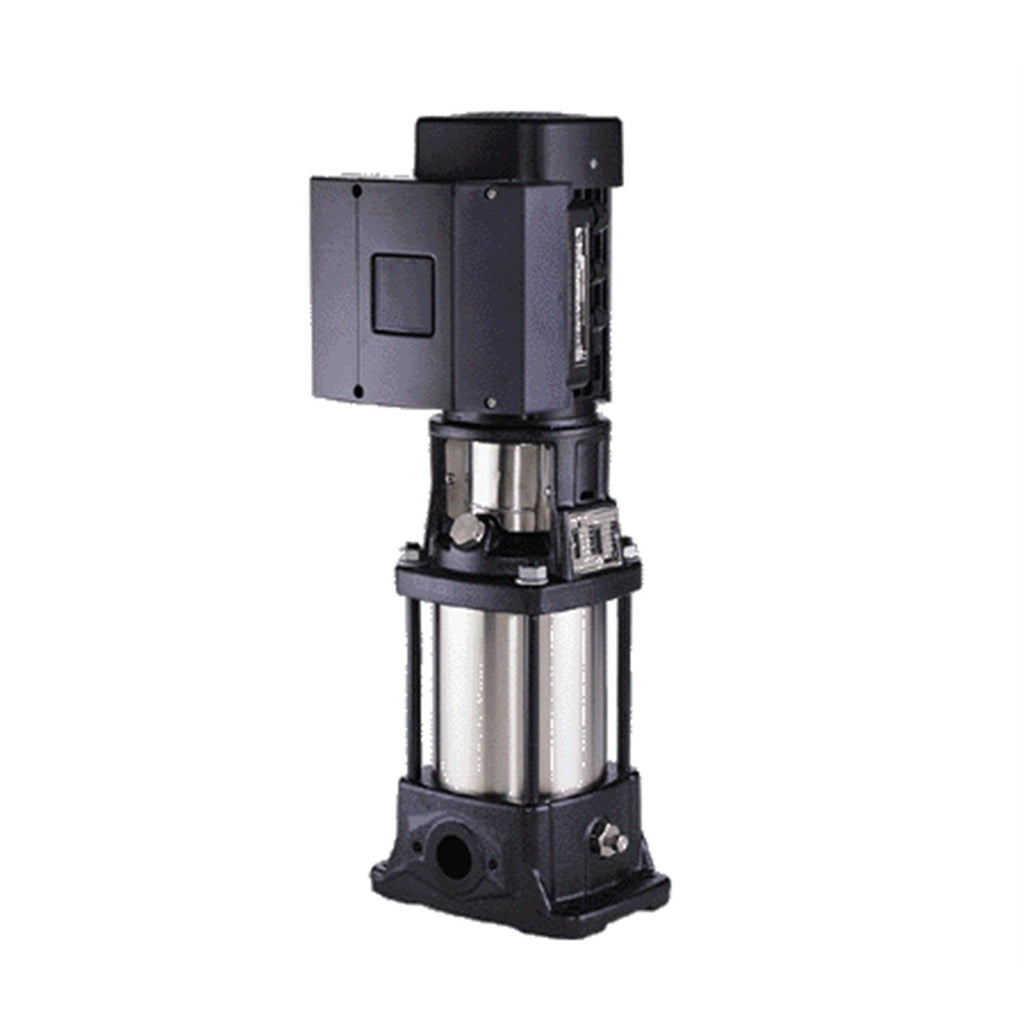

Grundfos 98497432 - CRE 20-1 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98497432

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497432 - CRE 20-1 A-GJ-A-E-HQQE is a vertical, multistage centrifugal pump suited for demanding industrial and commercial fluid-handling systems. This inline-style pump is intended for professionals specifying replacement units or system integrators upgrading booster and high-pressure systems.

Key features

  • Designed for vertical multistage centrifugal operation, ideal for high-pressure boosting
  • Commonly used in booster and inline configurations for dependable system integration
  • Provides reliable, efficient pressure delivery to support HVAC, water supply, and industrial processes

Applications

Typical uses include pressure boosting, closed-loop HVAC, industrial water supply, and other high-pressure inline systems where multistage pumping is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497432

EAN 5711496142673
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500981
Connect code GJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 250 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 141.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 66.93 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 123.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 20
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 3.8 A
Rated flow 111 US gpm
Rated head 49.54 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type 90D
Type of connection ANSI / JIS
Version A
