Grundfos 92758148 - CRE 20-1 A-B-A-E-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92758148

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92758148 - CRE 20-1 A-B-A-E-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92758148 - CRE 20-1 A-B-A-E-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRE 20-1 A-B-A-E-HQQV ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715119182909
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQV
Config. file no 99303417
Connect code B
Connection PN 10
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 216.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 145 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 66.93 ft
Maximum operating pressure 10 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.887
Motor standard NEMA
Motor type 100A
Net weight 130.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.94
Pressure rating for connection PN 10
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 7.90-6.60 A
Rated flow 111 US gpm
Rated head 49.54 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 2
Standard NEMA
Type 100A
Type of connection Oval / NPT(F)
Version A

Motor Curves

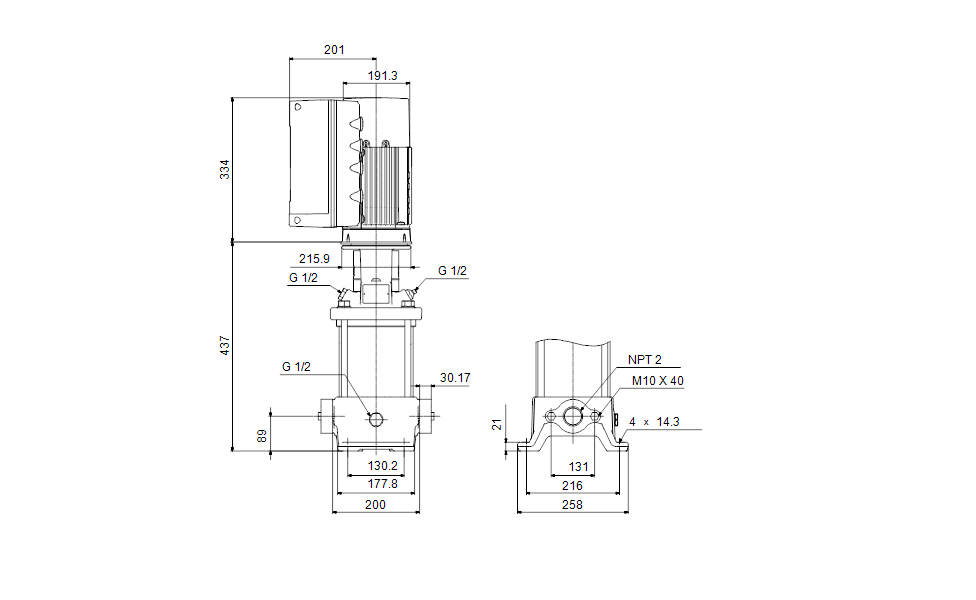

Dimensional Drawing

DWiring Diagram
