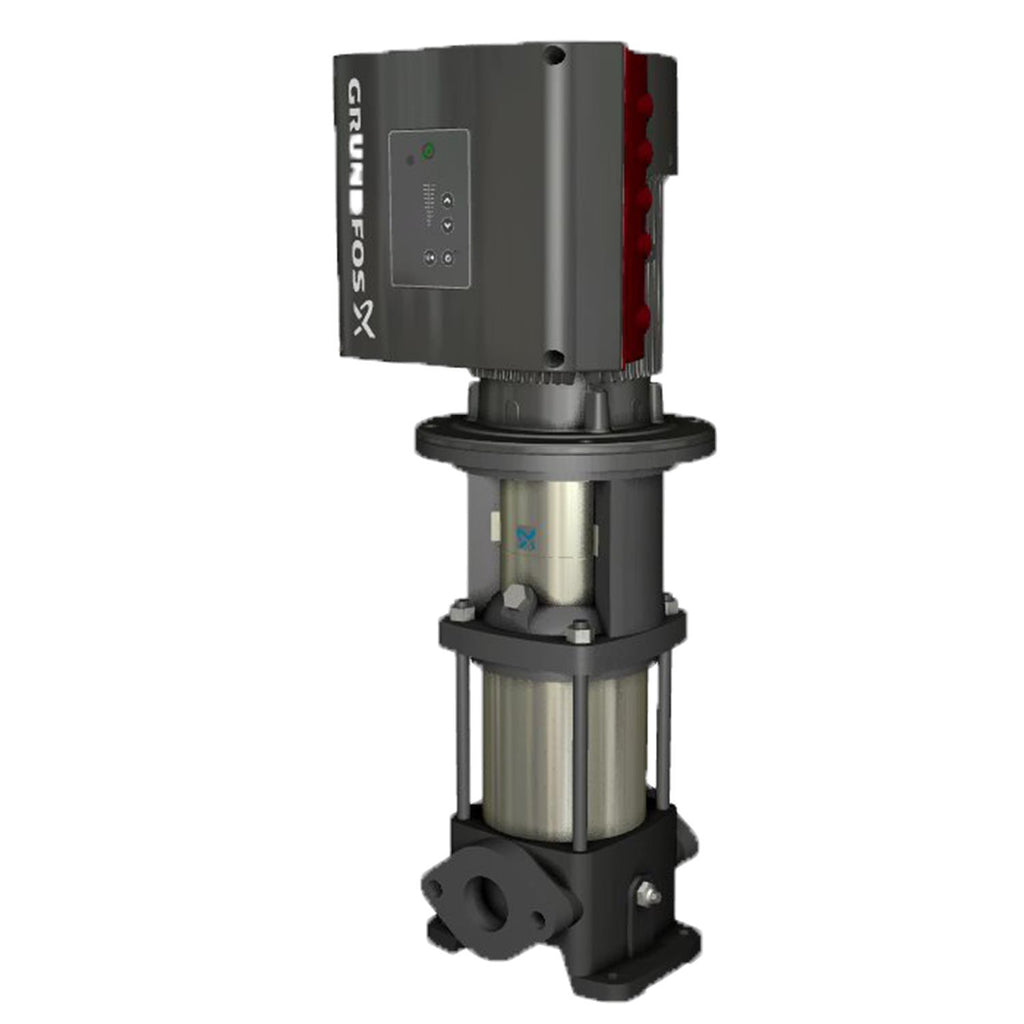

Grundfos 92512854 - CRE 1S-4 N-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92512854

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92512854 CRE 1S-4 N-B-A-E-HQQE is a vertical multistage centrifugal pump designed for inline, high-pressure boosting and industrial fluid handling. It suits service and repair applications for technicians and facilities managers needing a reliable replacement unit.

Key features

  • Manufactured by Grundfos for industrial and commercial pumping needs
  • Vertical, multistage centrifugal design for compact, high-pressure operation
  • Provides consistent pressure boosting and efficient multi-stage performance for system stability

Applications

Ideal for water supply boosting, process circulation, boiler feed, and other inline high-pressure multistage applications in commercial and industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92512854

EAN 5715115565577
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98502745
Connect code B
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 66.1 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 113.2 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.84
Motor standard NEMA
Motor type 71A
Net weight 55.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.96
Pressure rating for connection PN 16
Pressure sensor Y
Pump 0.37 kW
Pump speed on which pump data are based 3436 rpm
Pump version N
Pumped liquid Water
Rated current 2.40-2.10 A
Rated flow 4.84 US gpm
Rated head 77.76 ft
Rated power - P2 0.37 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 4
Standard NEMA
Type 71A
Type of connection Oval / NPT(F)
Version N

Motor Curves

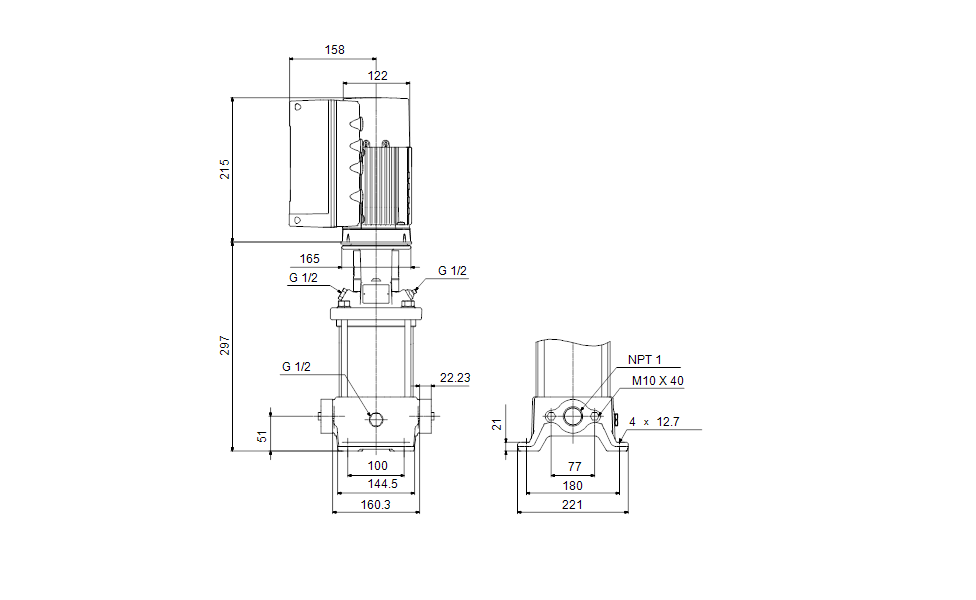

Dimensional Drawing

DWiring Diagram
