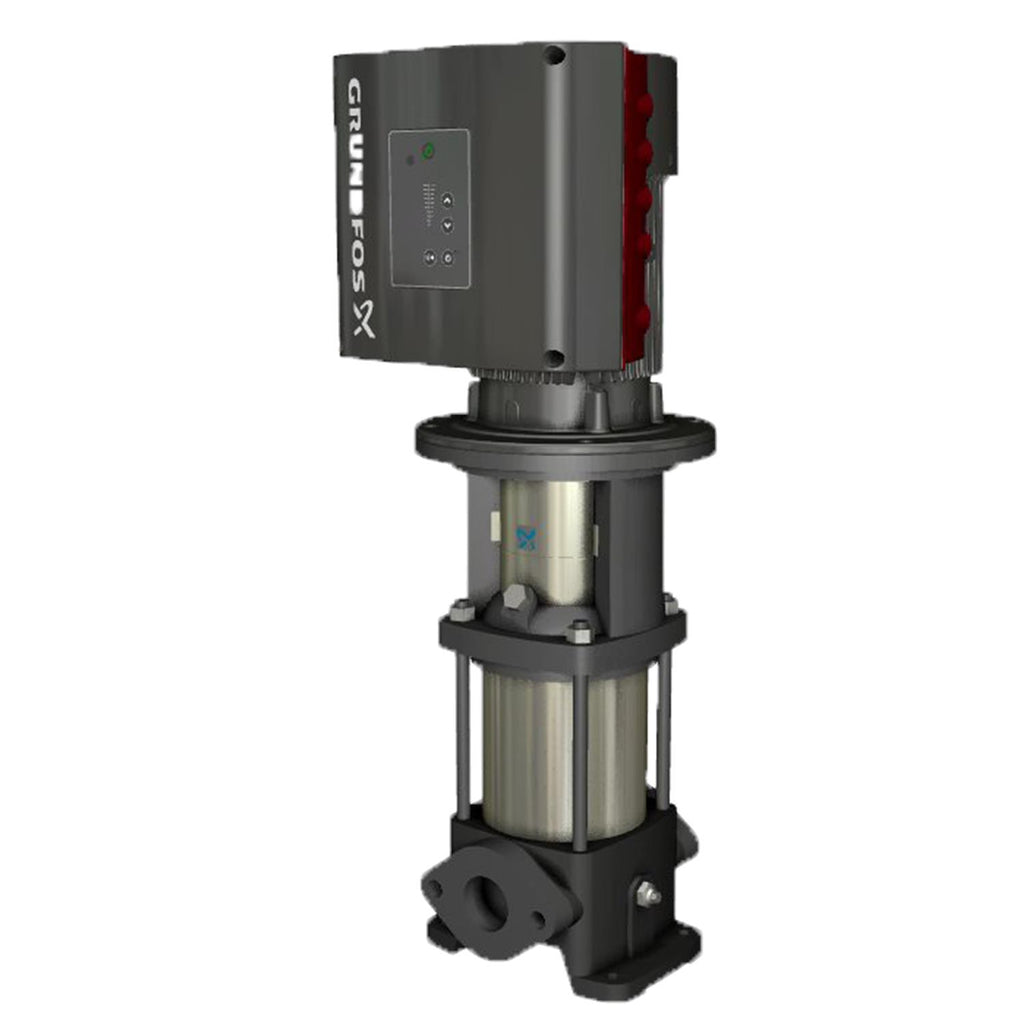

Grundfos 99458309 - CRE 1S-12 N-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99458309

Price:
Sale price$6,906.94
Build to order – stocked components,
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99458309 - CRE 1S-12 N-B-A-E-HQQE is a vertical, multistage centrifugal replacement pump suited for industrial fluid transfer and pressure-boosting systems. It is used by service technicians and plant maintenance teams requiring reliable, compact high-pressure pumping.

Key features

  • Manufactured by Grundfos for various industrial applications and service specials
  • Vertical multistage centrifugal design for high-pressure, in-line installations
  • Delivers efficient pressure boosting and stable flow for long run cycles

Applications

Ideal for boiler feed, pressure boosting, water treatment, process circulation, and other industrial/high-pressure in-line multistage uses.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99458309

EAN 5713829452817
Approvals CURUS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98502753
Connect code B
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 73.1 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 328.8 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.852
Motor standard NEMA
Motor type 80A
Net weight 62.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.99
Pressure rating for connection PN 16
Pressure sensor Y
Pump 0.75 kW
Pump speed on which pump data are based 3464 rpm
Pump version N
Pumped liquid Water
Rated current 4.70-3.90 A
Rated flow 4.84 US gpm
Rated head 215.9 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 12
Standard NEMA
Type 80A
Type of connection Oval / NPT(F)
Version N

Motor Curves

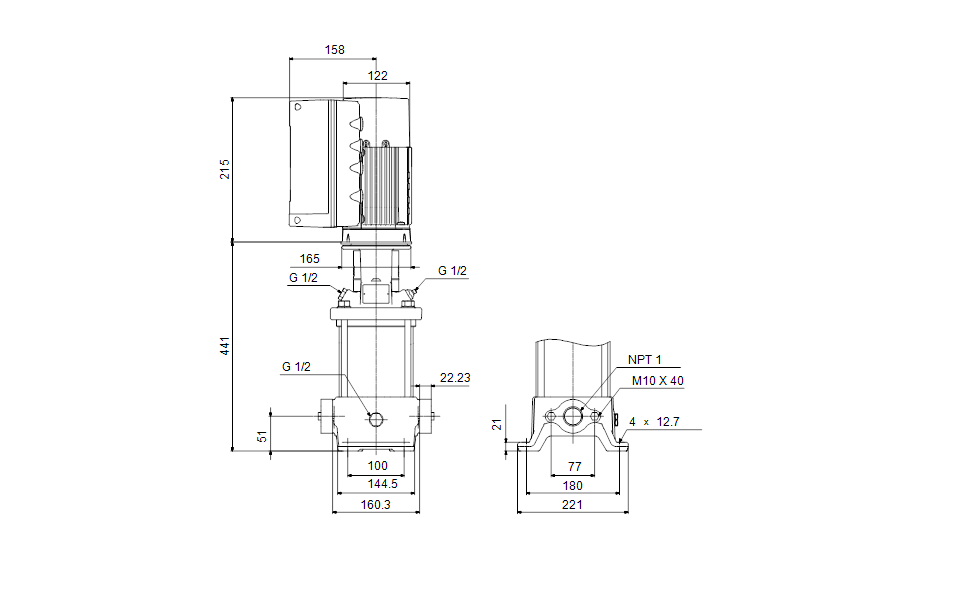

Dimensional Drawing

DWiring Diagram
