Grundfos 99266494 - CRE 155-1-1 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $13,946.40
GRUNDFOSSKU: 99266494

Price:
Sale price$15,108.60 Regular price$29,055.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos Grundfos 99266494 - CRE 155-1-1 A-G-A-E-HQQE is a vertical multistage centrifugal pump intended for industrial and commercial fluid handling. It suits systems requiring high-pressure, in-line pumping and is typically used by maintenance and facilities teams.

Key features

  • Designed as a vertical, multistage centrifugal unit for compact footprint and higher head
  • Compatible family and model cues: Cre, CRE & CRNE models and vertical multistage applications
  • Provides reliable high-pressure performance for boosting, transfer, and circulation needs

Applications

Common uses include water boosting, boiler feed, pressure boosting, process circulation, and in-line high-pressure systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99266494

EAN 5713826255855
Applications Industrial applications
Actual impeller diameter 6.64 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection YES
Code for rubber E
Code for shaft seal HQQE
Config. file no 95139704
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.64 in
DOE Pump Energy Index VL 0.58
Enclosure class (IEC 34-5) IP55
Flange size for motor 284TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 908.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 149 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type 160AC
Net weight 635.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 18.5 kW
Power factor 1 0.88
Pressure rating for connection 150 lb
Pressure sensor N
Product family CRE 155
Pump 18.5 kW
Pump speed on which pump data are based 3530 rpm
Pump version A
Pumped liquid Water
Rated current 30.5 A
Rated flow 820 US gpm
Rated head 88.92 ft
Rated power - P2 18.5 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Standard NEMA
Support bearing Graflon
Terminal box position 6
Thrust handling device N
Type 160AC
Type of connection ANSI
Version A

Motor Curves

Dimensional Drawing

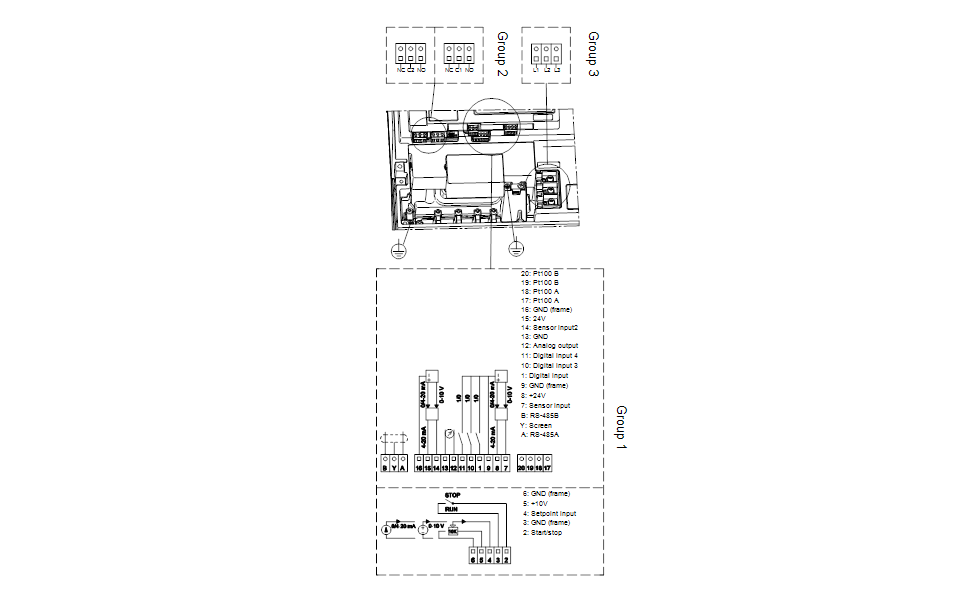

DWiring Diagram
