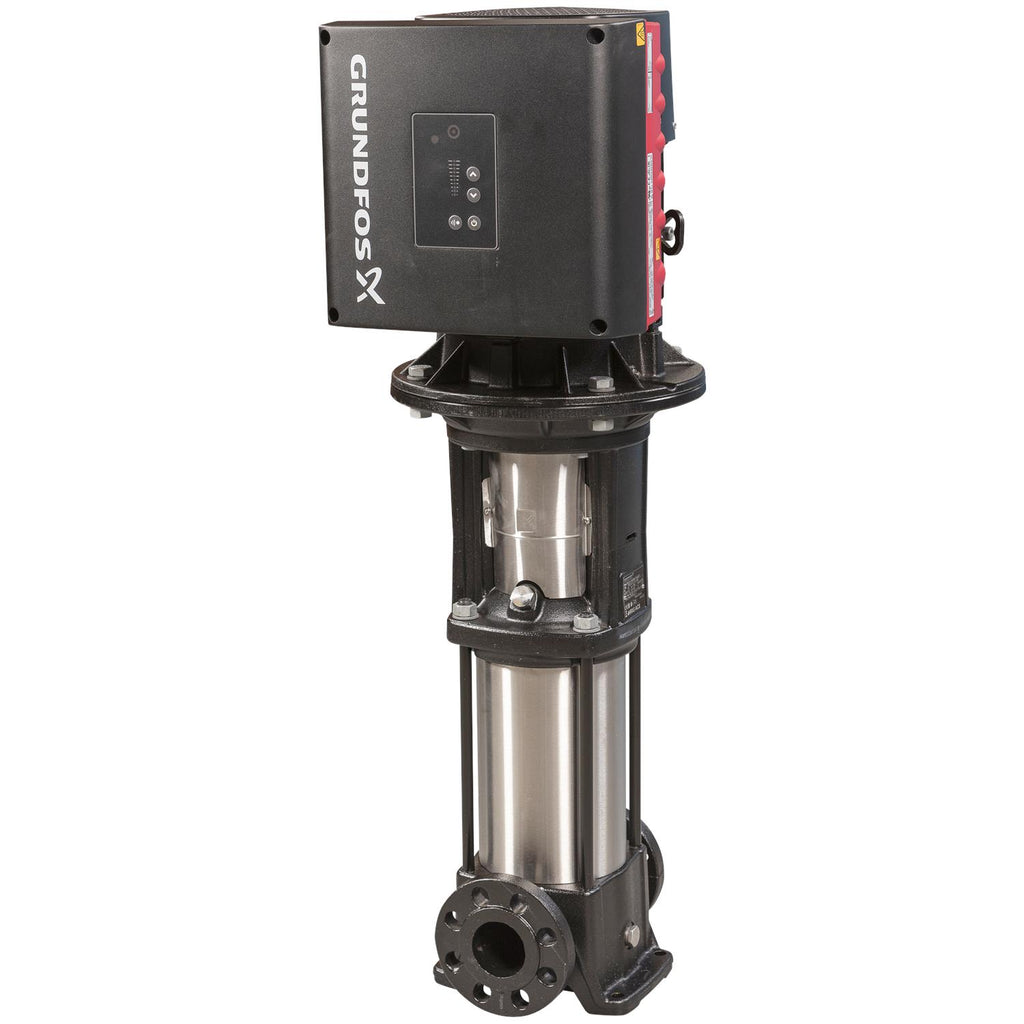

Grundfos 99243677 - CRE 15-4 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99243677

Price:
Sale price$15,937.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos Grundfos 99243677 - CRE 15-4 K-GJ-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid transfer where compact, high-pressure pumping is required. Operators in HVAC, water systems, and process plants commonly fit this model into in-line and vertical pump configurations.

Key features

  • Vertical multistage centrifugal design for compact, space-saving installations
  • Suitable for in-line and high-pressure applications, as indicated by Cre and related tags
  • Provides consistent pressure and reliable operation for booster and circulation duties

Applications

Typical uses include boiler feed, water boost systems, circulation in HVAC, and industrial process water handling. Keep claims general and match system requirements to pump capabilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99243677

EAN 5712609368461
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074207
Connect code GJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 284.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 283.2 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 198.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.91-0.90
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 15
Pump 7.5 kW
Pump speed on which pump data are based 3448 rpm
Pump version K
Pumped liquid Water
Rated current 12.4-11.5 A
Rated flow 90.3 US gpm
Rated head 230.7 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Terminal box position 6
Type 132F
Type of connection ANSI / JIS
Version K
