Grundfos 92928353 - CRE 15-1 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92928353

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

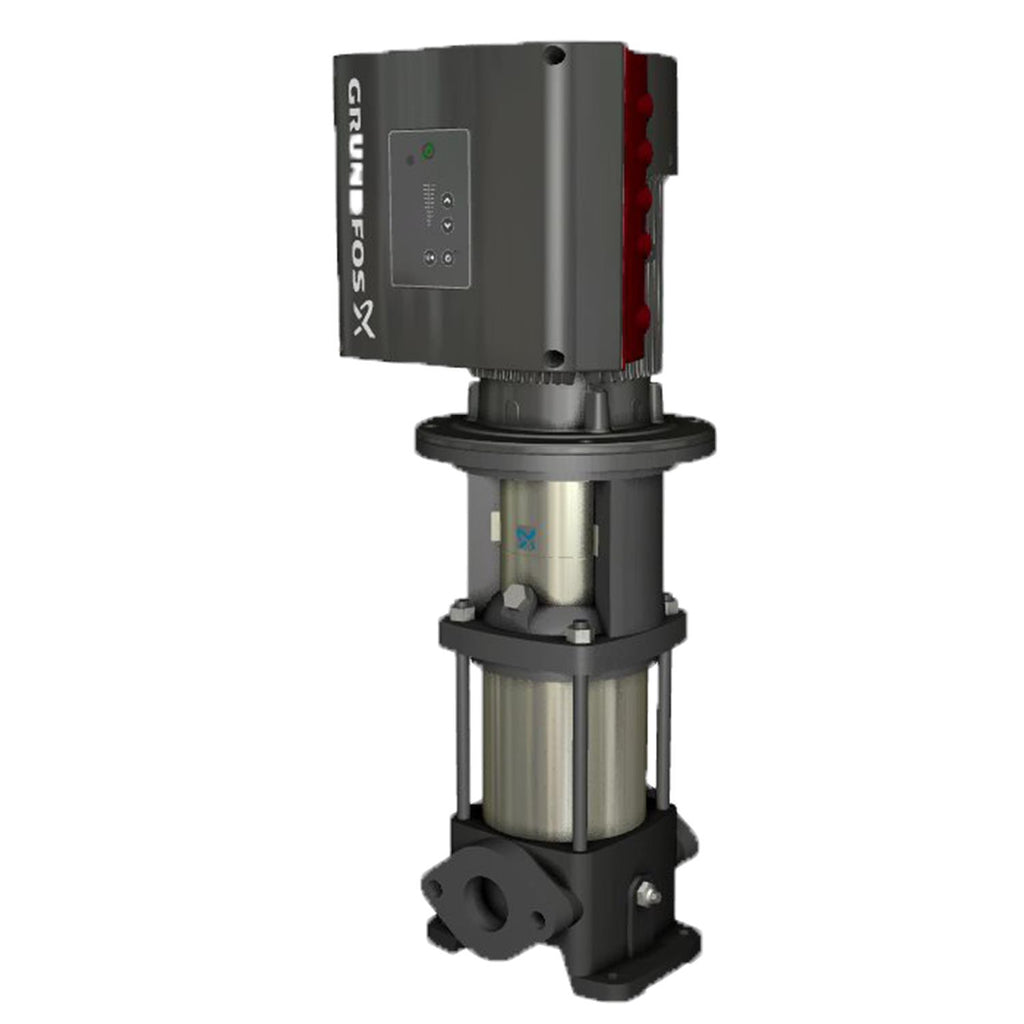

Grundfos 92928353 - CRE 15-1 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92928353 - CRE 15-1 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRE 15-1 A-A-A-E-HQQE is ideal for high-pressure applications, making it a perfect choice for those seeking a durable and efficient pumping solution. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special and High Pressure types.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715121691970
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500772
Connect code A
Connection PN 10
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.46
Enclosure class (IEC 34-5) IP55
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 110.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 145 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 64.31 ft
Maximum operating pressure 10 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at full load 1 0.889
Motor standard IEC
Motor type 90SC
Net weight 101.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.92-0.85
Pressure rating for connection PN 10
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 2.90-2.40 A
Rated flow 90.3 US gpm
Rated head 47.57 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 2
Standard IEC
Type 90SC
Type of connection Oval / Rp
Version A

Motor Curves

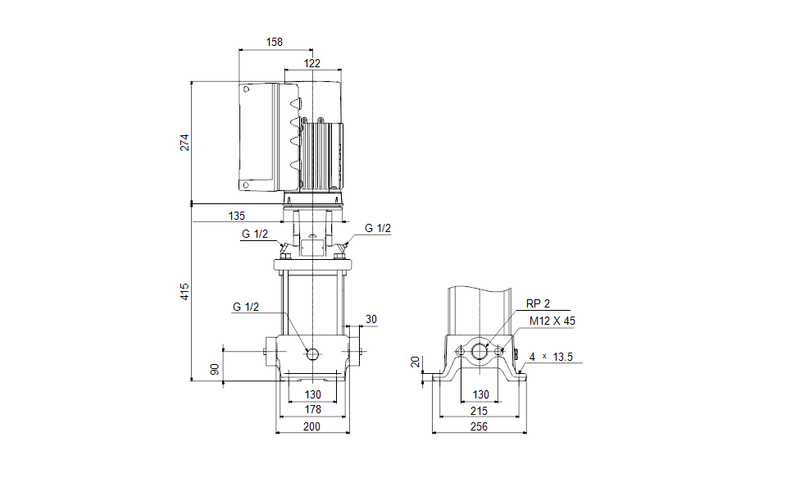

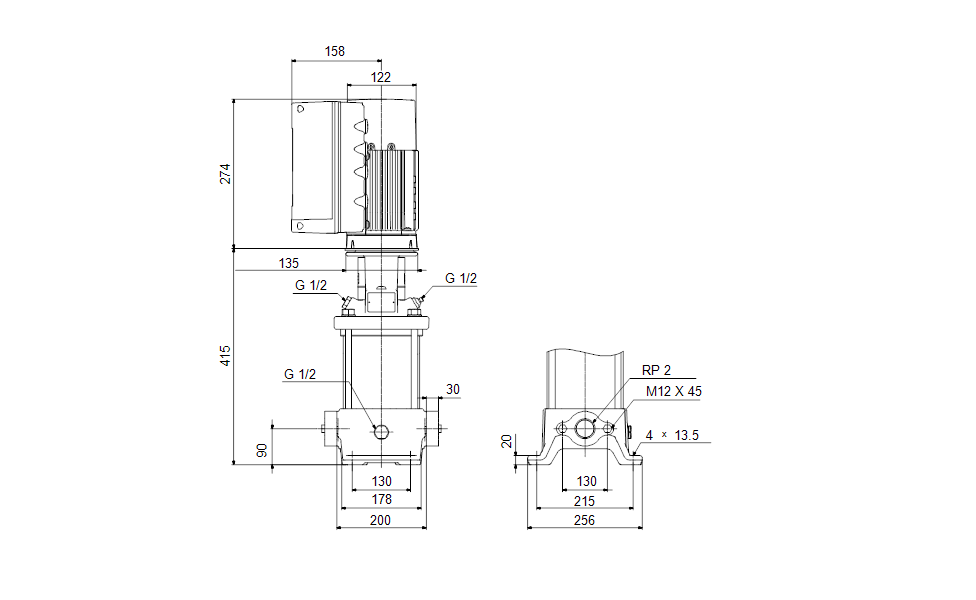

Dimensional Drawing

DWiring Diagram
