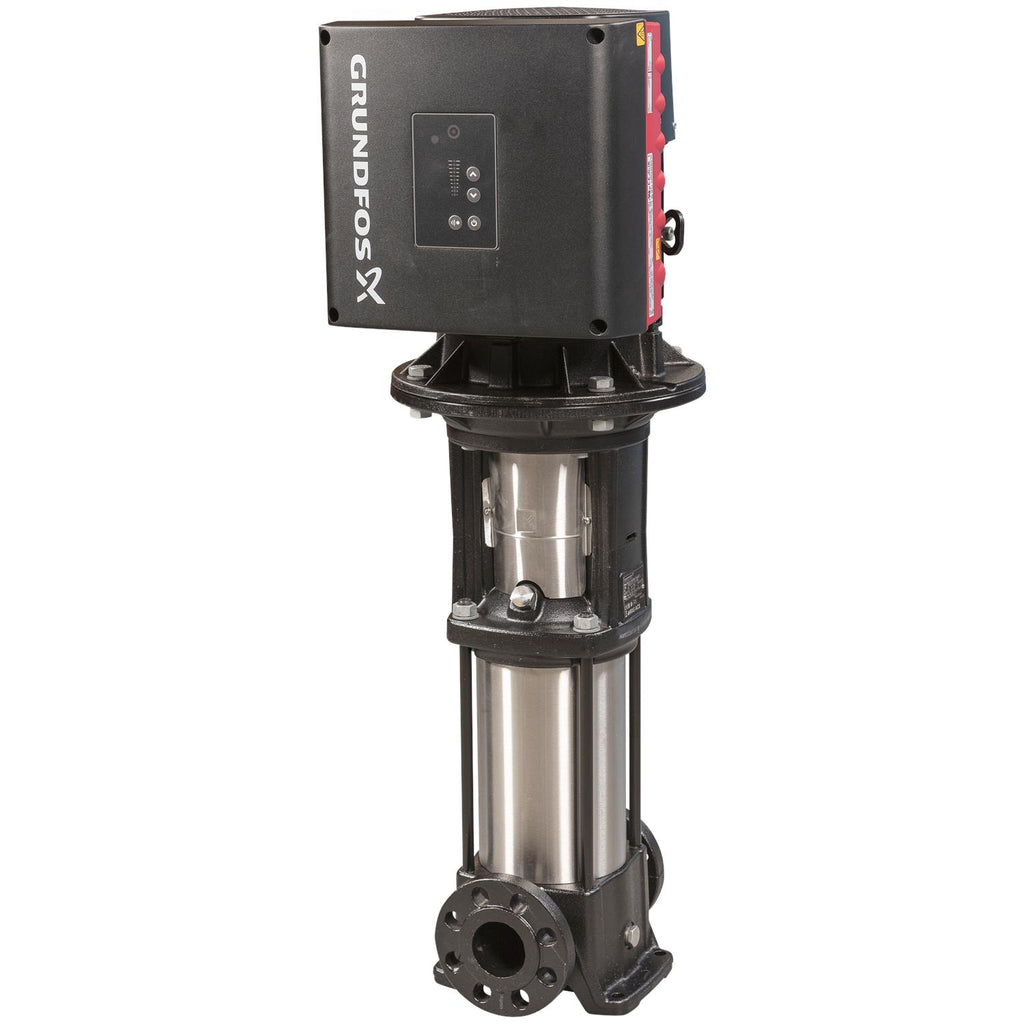

Grundfos 99243671 - CRE 10-6 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99243671

Price:
Sale price$13,106.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99243671 is a CRE 10-6 K-GJ-A-E-HQQE vertical multistage centrifugal pump designed for inline, high-pressure duties where compact vertical installation is required. It suits technicians and maintenance teams in commercial and industrial facilities.

Key features

  • Vertical multistage centrifugal design for sustained high-pressure performance
  • Inline configuration compatible with space-constrained pump systems and piping
  • Engineered for reliable operation in commercial and industrial fluid handling applications

Applications

Typical uses include pressure boosting, boiler feed, HVAC circulation, water supply and general industrial process service where multi-stage high-pressure pumping is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99243671

EAN 5712609368218
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074154
Connect code GJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 176.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 259.2 ft
Maximum operating pressure 16 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 161.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.90-0.88
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 10
Pump 3.7 kW
Pump speed on which pump data are based 3486 rpm
Pump version K
Pumped liquid Water
Rated current 6.20-5.80 A
Rated flow 53.3 US gpm
Rated head 216.9 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Terminal box position 6
Type 112C
Type of connection ANSI / JIS
Version K
