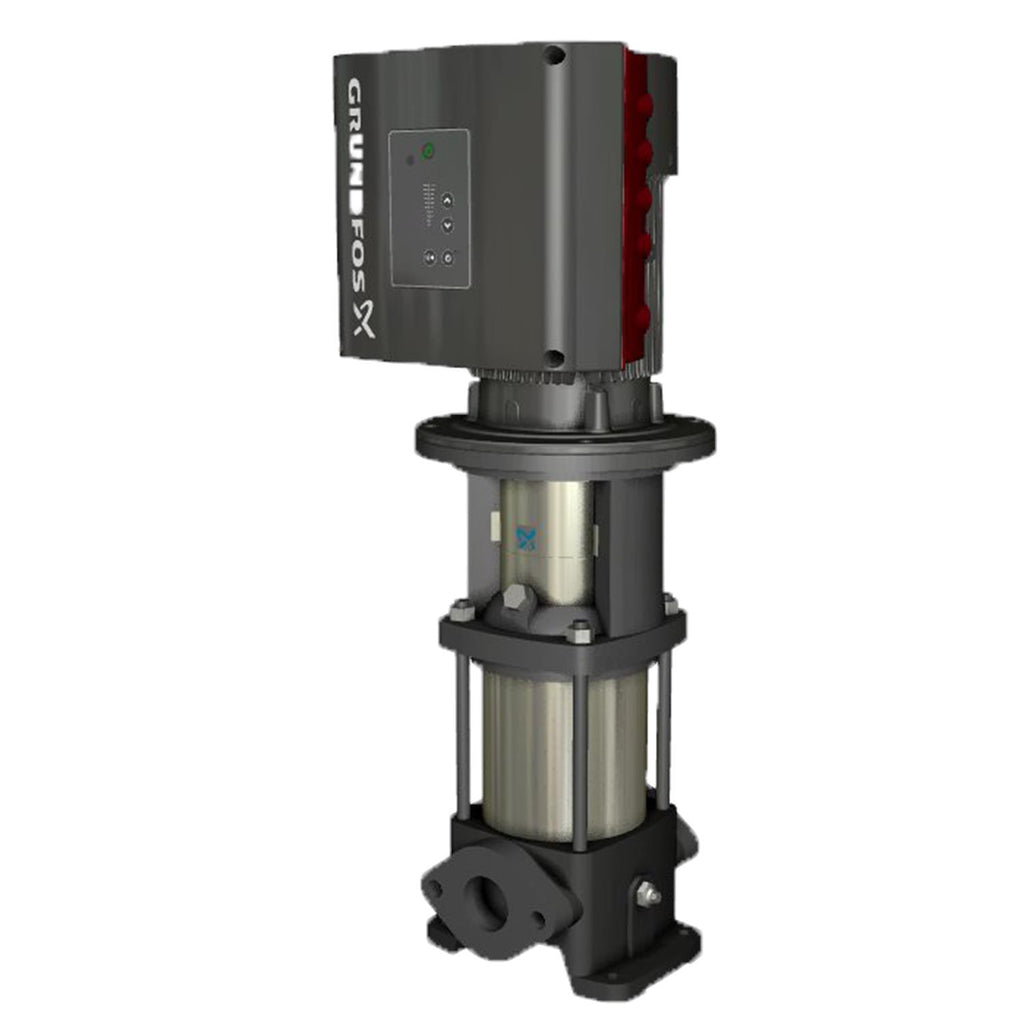

Grundfos 99228294 - CRE 10-3 A-BN-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99228294

Price:
Sale price$9,391.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CRE 10-3 A-BN-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid handling where high pressure and inline mounting are required. It suits technicians and maintenance teams replacing or servicing mid- to high-pressure systems.

Key features

  • Multistage centrifugal design for higher discharge pressure and stable flow
  • Vertical, inline configuration for compact footprint and easy system integration
  • Service-special availability aiding faster replacement during maintenance

Applications

Typical uses include high-pressure boosting, boiler feed, HVAC circulation, industrial process water supply, and other inline multistage applications where reliable, compact high-pressure pumping is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99228294

EAN 5712609066411
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500681
Connect code BN
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 141.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 145 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 145 ft
Maximum operating pressure 10 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 123.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 3.8 A
Rated flow 53.3 US gpm
Rated head 114.2 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 2 inch
Stages 3
Standard NEMA
Type 90D
Type of connection Oval / NPT(F)
Version A

Motor Curves

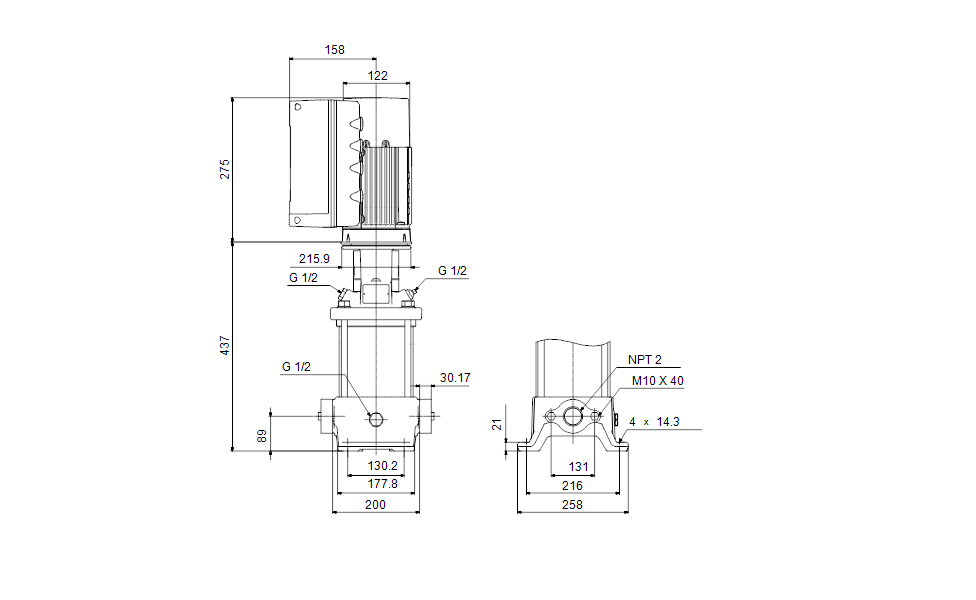

Dimensional Drawing

DWiring Diagram
