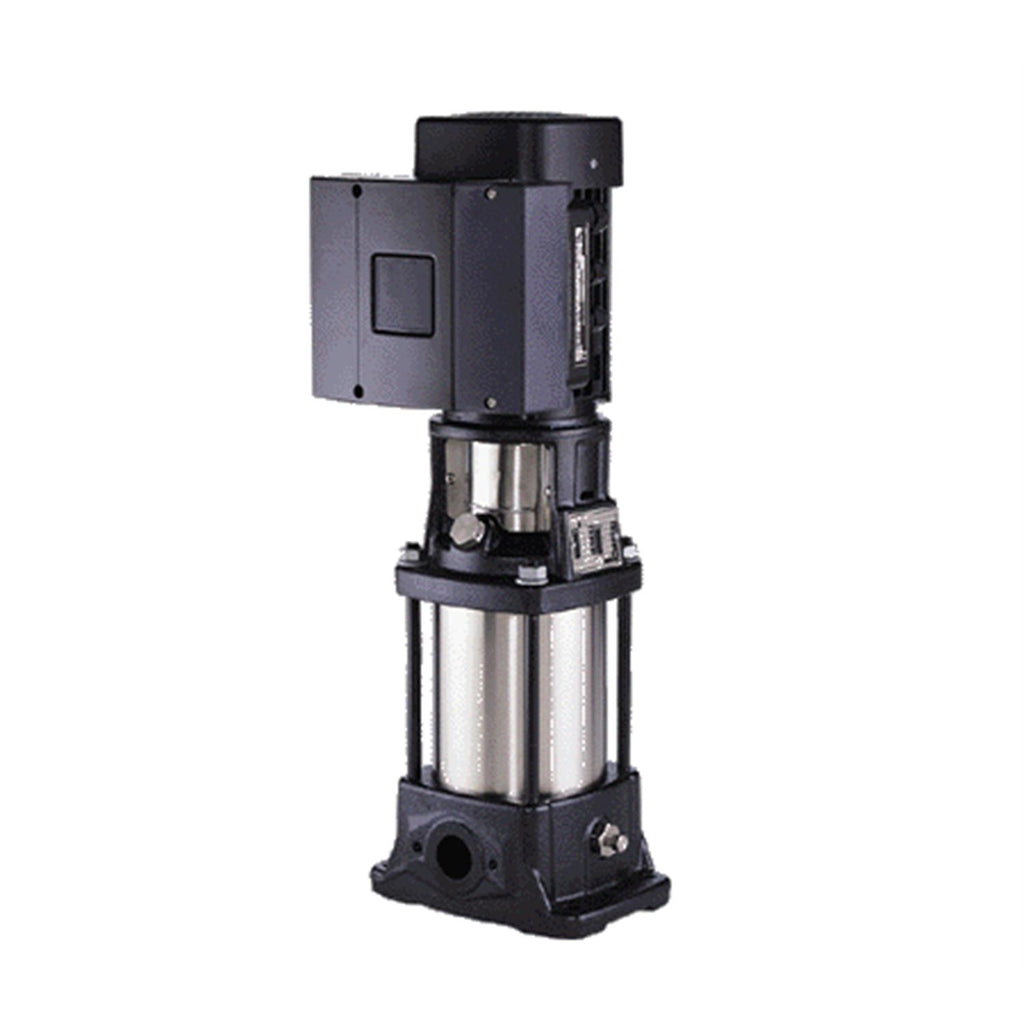

Grundfos 98497379 - CRE 10-2 A-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98497379

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497379 - CRE 10-2 A-GJ-A-E-HQQE is a vertical multistage centrifugal pump suitable for booster and high-pressure in-line installations, used by contractors, facility maintenance, and industrial professionals.

Key features

  • Designed for industrial booster and high-pressure applications
  • Vertical, multistage centrifugal configuration for compact footprint and higher head
  • Provides reliable pressure delivery and smooth operation for system stability

Applications

Suitable for water booster systems, pressure boosting, industrial process feed, and other high-pressure in-line or vertical multistage duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497379

EAN 5711496142147
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500670
Connect code GJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 117.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 95.81 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.896
Motor standard NEMA
Motor type 80B
Net weight 99.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.84
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 10
Pump 1.1 kW
Pump speed on which pump data are based 3466 rpm
Pump version A
Pumped liquid Water
Rated current 2.05 A
Rated flow 53.3 US gpm
Rated head 72.51 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type 80B
Type of connection ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

DWiring Diagram
