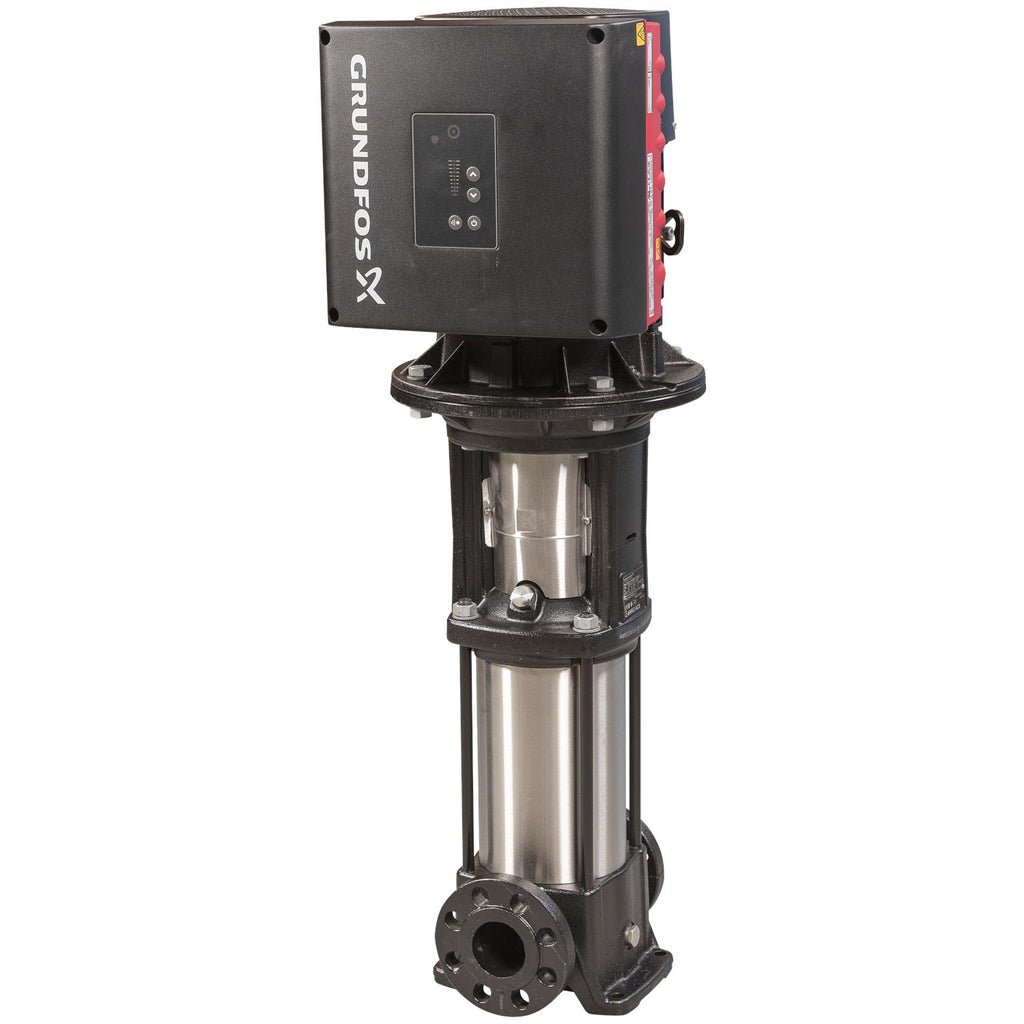

Grundfos 99243664 - CRE 10-17 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99243664

Price:
Sale price$22,490.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99243664 - CRE 10-17 K-GJ-A-E-HQQE is a vertical multistage centrifugal pump intended for industrial and commercial users requiring reliable high-pressure pumping. Suitable for in-line and vertical multistage installations, it fits systems calling for robust, compact pump units.

Key features

  • Vertical multistage centrifugal design for high-pressure delivery
  • In-line configuration compatible with booster and system integration
  • Durable construction offering dependable performance in industrial applications

Applications

Typical uses include water booster systems, process and industrial fluid handling, HVAC and pressure-increasing installations where a compact vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99243664

EAN 5712609367952
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074181
Connect code GJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 370.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 23
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 833.4 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Net weight 258.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.92-0.91
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 10
Pump 11 kW
Pump speed on which pump data are based 3450 rpm
Pump version K
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 53.3 US gpm
Rated head 662.1 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 18
Standard NEMA
Terminal box position 6
Type 160H
Type of connection ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
