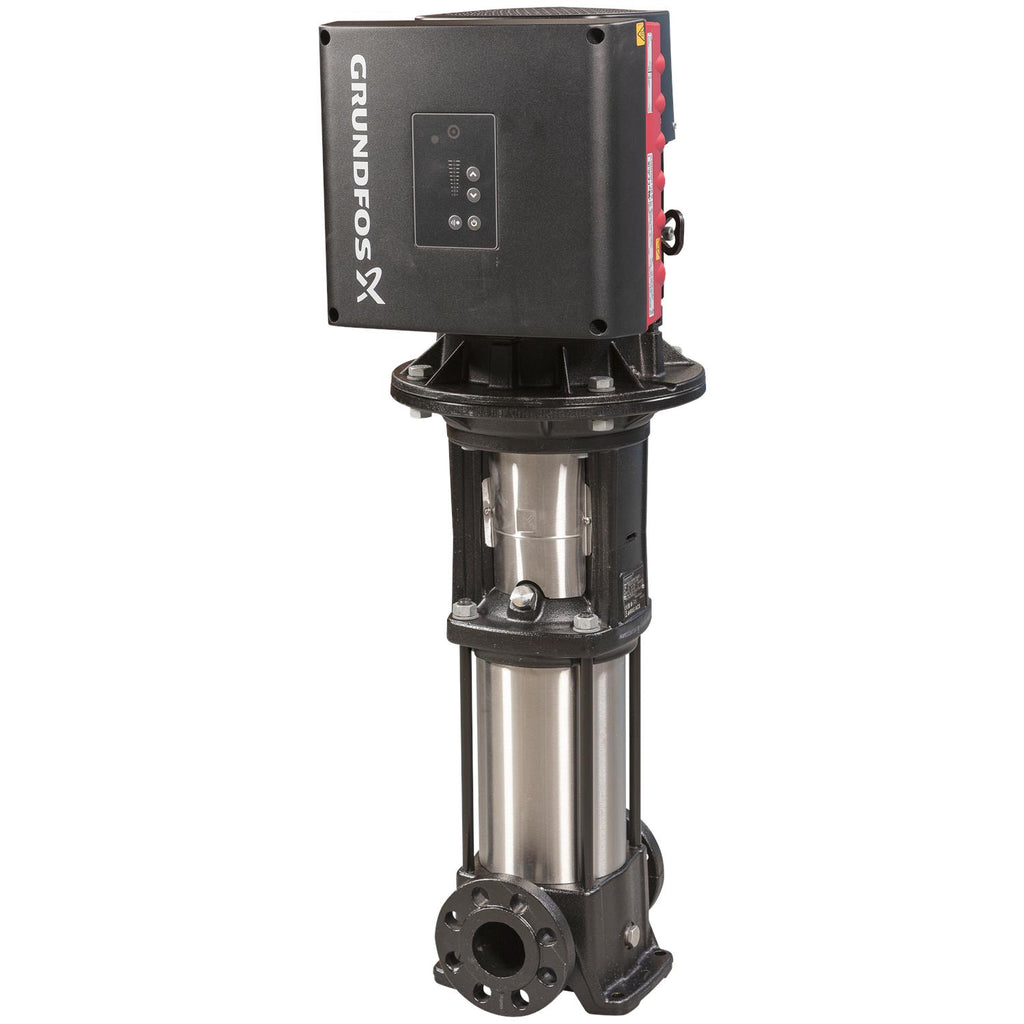

Grundfos 99243674 - CRE 10-12 K-GJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99243674

Price:
Sale price$18,320.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99243674 - CRE 10-12 K-GJ-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial fluid transfer and high-pressure boosting where compact inline installation is required. Grundfos manufactures this unit for commercial and industrial service technicians and facilities managers.

Key features

  • Vertical multistage centrifugal configuration for smooth, continuous pressure delivery
  • Suitable for inline, high-pressure applications and multi-stage systems
  • Durable construction for reliable operation and reduced maintenance downtime

Applications

Typical uses include booster systems, industrial process water, HVAC pressure boosting, and other in-line high-pressure pumping duties where a compact vertical multistage pump is preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99243674

EAN 5712609368386
Applications Industrial applications
Actual impeller diameter 3.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074172
Connect code GJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 300.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 547.9 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 214.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.91-0.90
Pressure rating for connection PN 25
Pressure sensor N
Product family CRE 10
Pump 7.5 kW
Pump speed on which pump data are based 3448 rpm
Pump version K
Pumped liquid Water
Rated current 12.4-11.5 A
Rated flow 53.3 US gpm
Rated head 436.7 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Terminal box position 6
Type 132F
Type of connection ANSI / JIS
Version K

Motor Curves

Dimensional Drawing

DWiring Diagram
