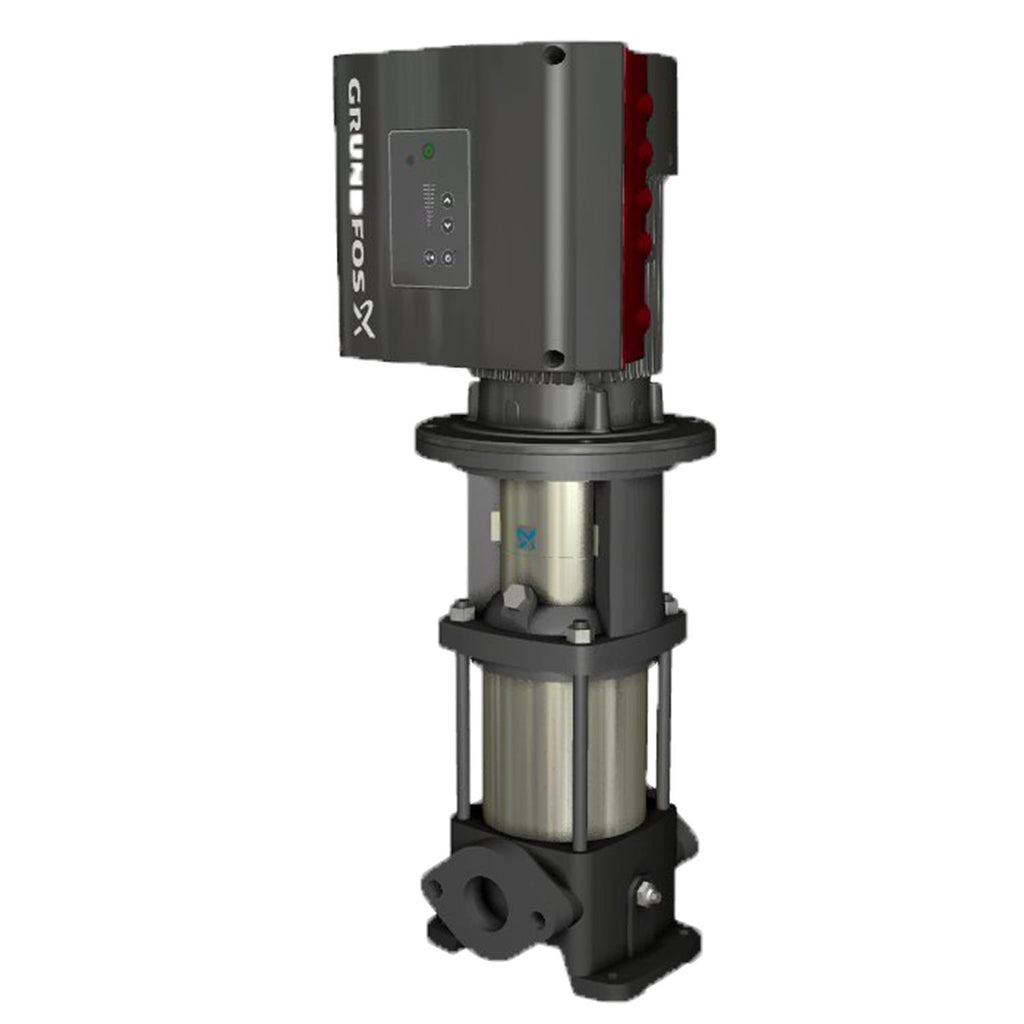

Grundfos 98785197 - CRE 1-7 P-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98785197

Price:
Sale price$5,237.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98785197 - CRE 1-7 P-B-A-E-HQQE is a vertical multistage centrifugal pump suited for industrial and commercial systems, used by maintenance technicians and service shops.

Key features

  • Vertical multistage centrifugal design for compact, high-head performance
  • Configured for in-line and high-pressure applications common in service and repair
  • Service-special designation simplifies replacement and maintenance procedures

Applications

Boiler feed, pressure boosting, industrial process circulation, HVAC and other systems requiring reliable high-pressure, multi-stage pumping.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98785197

EAN 5712601354073
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498445
Connect code B
Connection PN 16
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 67.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 199.8 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.853
Motor standard NEMA
Motor type 71A
Net weight 56.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.98
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3464 rpm
Pump version P
Pumped liquid Water
Rated current 3.45-2.90 A
Rated flow 9.69 US gpm
Rated head 148 ft
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1 inch
Size of outlet connection 1 inch
Stages 7
Standard NEMA
Type 71A
Type of connection Oval / NPT(F)
Version P

Motor Curves

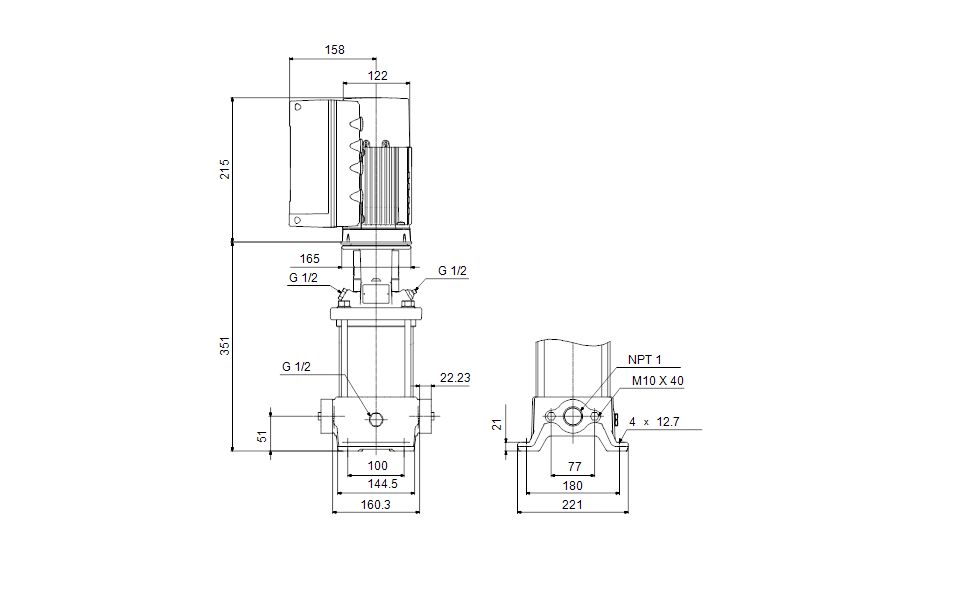

Dimensional Drawing

DWiring Diagram
