Grundfos 92572031 - CR 95-5-2 E-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92572031

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92572031 is a replacement vertical multistage centrifugal pump (CR 95-5-2 E-G-A-E-HQQE) suited for industrial and commercial fluid transfer tasks; technicians and maintenance teams commonly use this model for high-pressure inline systems.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure applications
  • Service-special configuration noted in product tags for repair and refurbishment workflows
  • Provides reliable inline pumping performance to support process and system stability

Applications

Typical uses include high-pressure water delivery, boiler feed, pressure boosting, and other in-line industrial fluid handling where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92572031

EAN 5715116454405
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 365TSC
Frequency converter NONE
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Maximum ambient temperature 104 °F
Maximum head 668.7 ft
Maximum operating pressure 25 bar
Model A
Motor 365TSC
Motor efficiency at 1/2 load 0.924
Motor efficiency at 3/4 load 0.936
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
Net weight 1180.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power factor 1 0.9
Pressure rating for connection 300 lb
Pressure sensor N
Pump speed on which pump data are based 3550 rpm
Pump version E
Pumped liquid Water
Rated current 164/81.9 A
Rated flow 500 US gpm
Rated head 485.3 ft
Rated power - P2 55 kW
Rated speed 3555 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 5
Standard NEMA
Starting current 6.7
Support bearing Graflon
Type WEG
Type of connection ANSI
Version E

Motor Curves

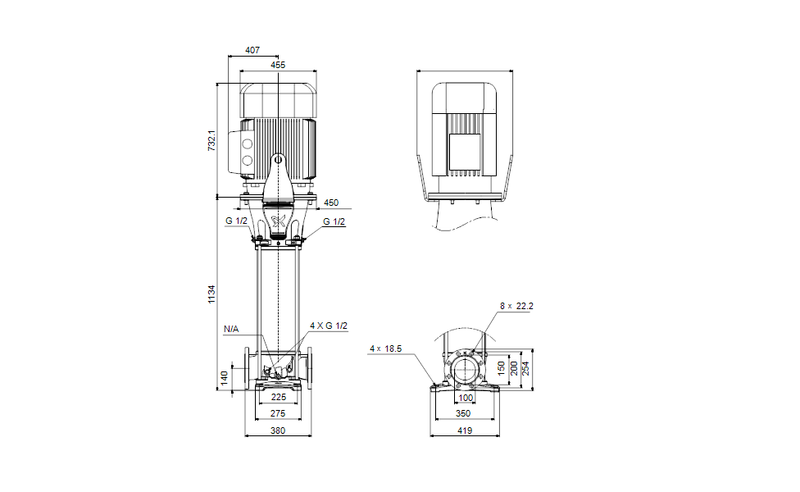

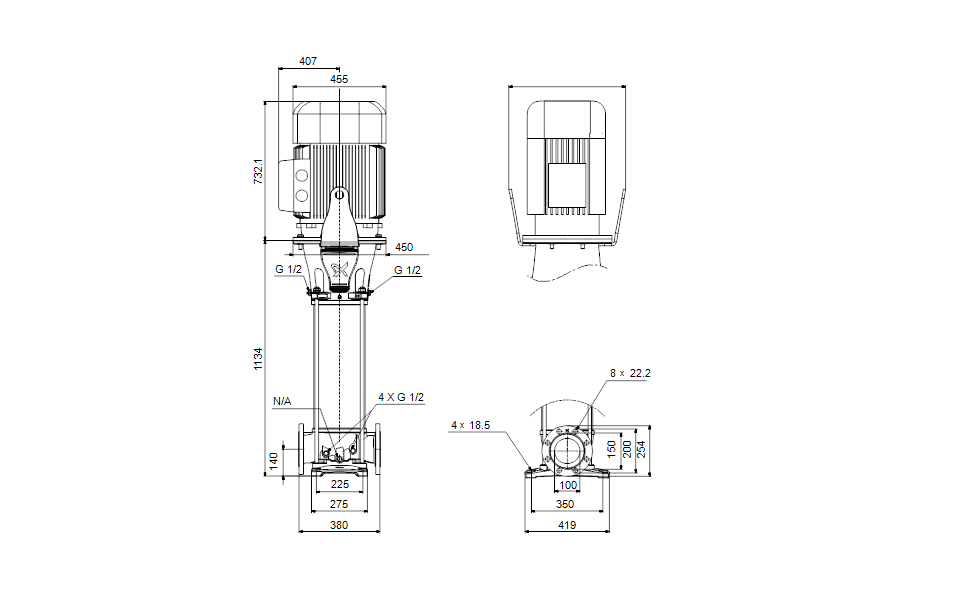

Dimensional Drawing

DWiring Diagram
