Grundfos 92553590 - CR 95-3 6-G-A-E-HUBE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92553590

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92553590 - CR 95-3 6-G-A-E-HUBE is a vertical multistage centrifugal pump suited for industrial and commercial systems. Operators in water supply, pressure boosting, and process applications use this compact, high-pressure unit.

Key features

  • Vertical multistage centrifugal configuration for compact, in-line installation
  • Designed as a service special for reliable replacement and maintenance
  • Provides consistent high-pressure delivery with efficient, low-pulsation operation

Applications

Typical uses include pressure boosting, boiler feed, industrial process water, municipal distribution, and high-pressure cleaning systems. Suitable where vertical, space-saving installations and multistage pressure are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92553590

EAN 5715116168364
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HUBE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Diameter 6.07 in
DOE Pump Energy Index CL 0.92
Flange size for motor 326TSC
Frequency converter NONE
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Maximum head 439.7 ft
Maximum operating pressure 30 bar
Model A
Motor 326TSC
Motor standard NEMA
Net weight 284.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection 300 lb
Pressure sensor N
Pump speed on which pump data are based 3539 rpm
Pump version 6
Rated flow 500 US gpm
Rated head 325.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version 6

Motor Curves

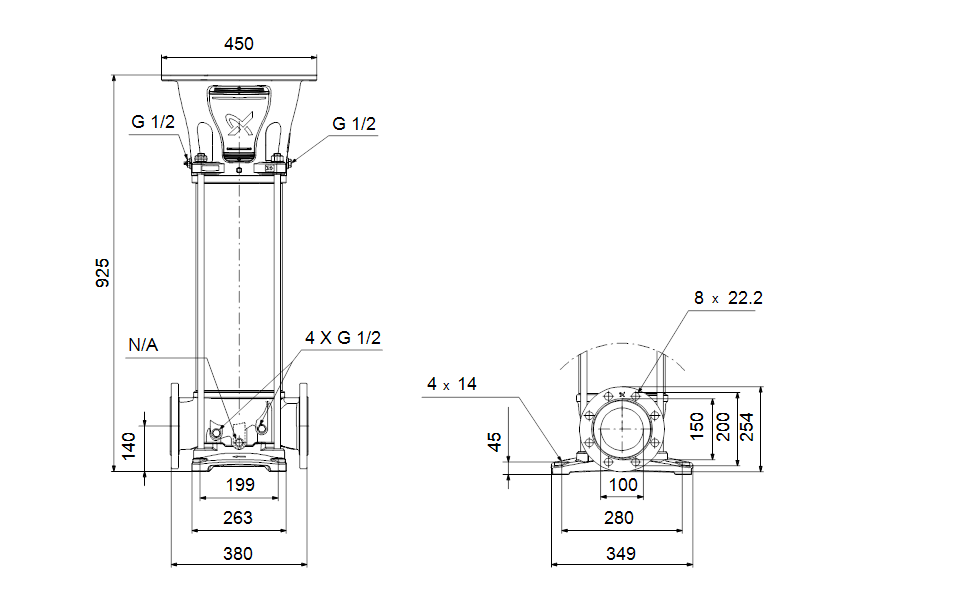

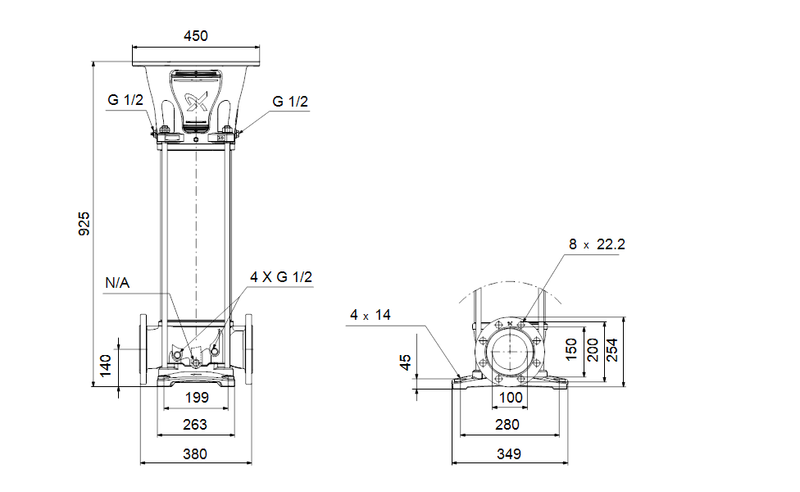

Dimensional Drawing
