Grundfos 92595907 - CR 95-3-2 6-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92595907

Price:
Sale price$22,120.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92595907 is a CR 95-3-2 6-G-A-E-HQQE vertical multistage centrifugal pump designed for in-line, high-pressure industrial fluid handling. It suits service technicians and facility maintenance teams needing compact, high-efficiency multi-stage pumping.

Key features

  • Manufactured for industrial applications with a multistage centrifugal design
  • Configured for vertical, in-line installation and high-pressure service per product family tags
  • Delivers reliable pressure boosting and space-saving vertical mounting for easier integration

Applications

Suitable for boiler feed, pressure boosting, process water systems, and other industrial fluid transfer tasks where vertical multistage, high-pressure centrifugal pumps are used.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92595907

EAN 5715116814506
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Diameter 6.07 in
DOE Pump Energy Index CL 0.92
Flange size for motor 286TC
Frequency converter NONE
Impeller Stainless steel
Impellers 2
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 376 ft
Maximum operating pressure 16 bar
Model A
Motor 286TC
Motor standard NEMA
Net weight 263.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3538 rpm
Pump version 6
Rated flow 500 US gpm
Rated head 260.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version 6

Motor Curves

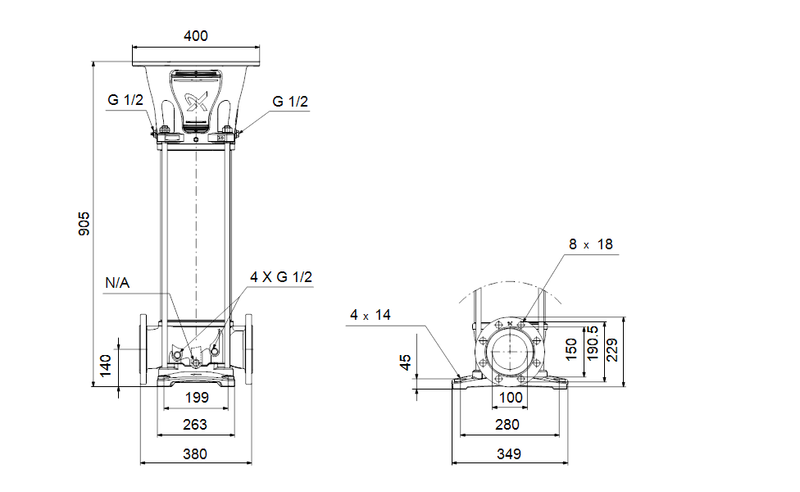

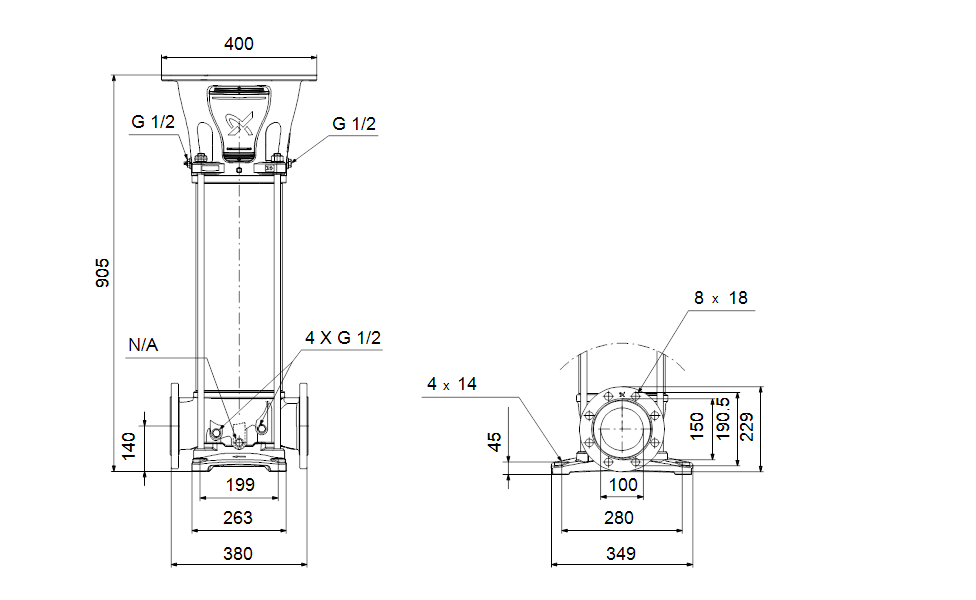

Dimensional Drawing
