Grundfos 92588879 - CR 95-2-2 B-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92588879

Price:
Sale price$24,259.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92588879 - CR 95-2-2 B-G-A-E-HQQE is a vertical, multistage centrifugal pump built for industrial and commercial fluid handling. It suits facilities needing reliable high-pressure, in-line pumping and is commonly used by maintenance teams and service technicians.

Key features

  • Vertical multistage centrifugal design for consistent pressure delivery
  • Configured for high-pressure, in-line applications and service replacement
  • Compact footprint and robust construction for easier installation and long service intervals

Applications

Boiler feed, high-pressure water distribution, reverse osmosis booster, industrial process circulation, and other in-line multistage duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92588879

EAN 5715116710594
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 286TSC
Frequency converter NONE
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 33
Maximum ambient temperature 104 °F
Maximum head 232 ft
Maximum operating pressure 16 bar
Model A
Motor 286TSC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type WEG
Net weight 655.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power factor 1 0.89
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3530 rpm
Pump version B
Pumped liquid Water
Rated current 67.6/33.8 A
Rated flow 500 US gpm
Rated head 153.2 ft
Rated power - P2 22 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version B

Motor Curves

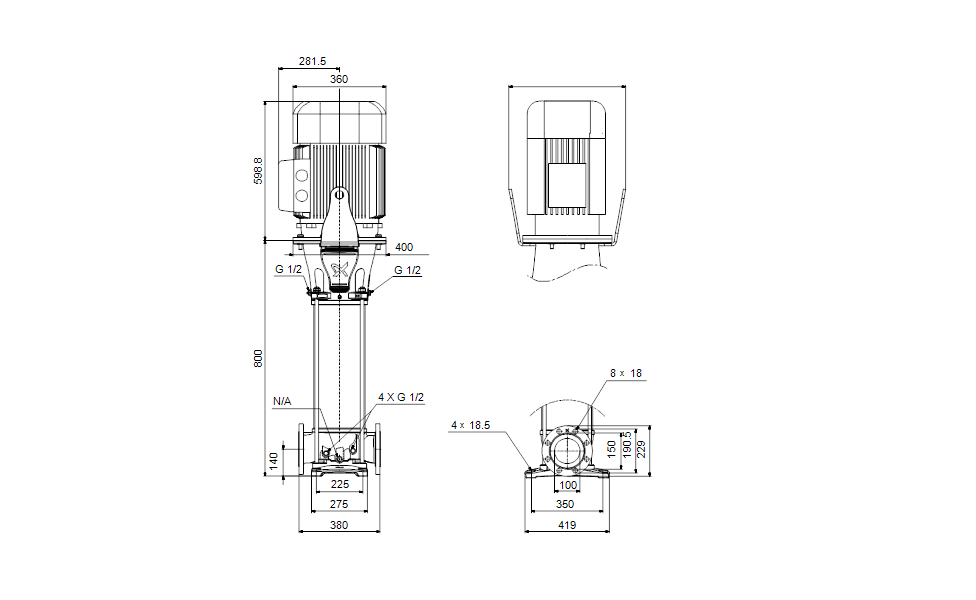

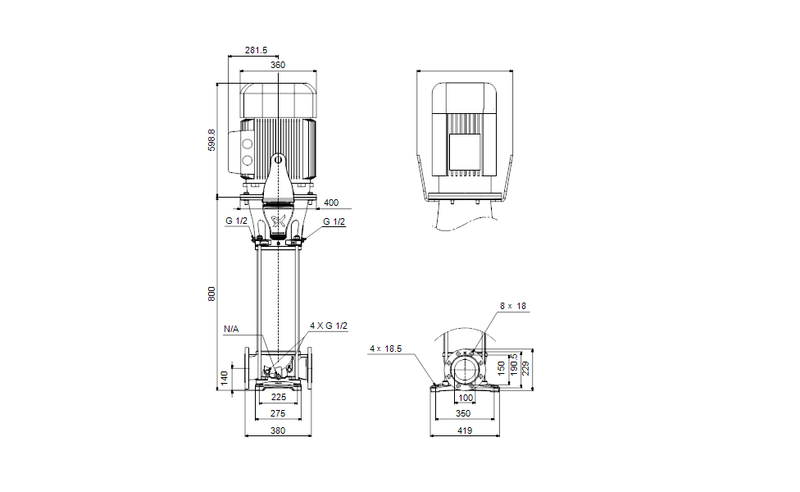

Dimensional Drawing

DWiring Diagram
