Grundfos 92584028 - CR 95-2-1 B-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92584028

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 95-2-1 B-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715116637730
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 324TSC
Frequency converter NONE
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Maximum ambient temperature 104 °F
Maximum head 262.2 ft
Maximum operating pressure 16 bar
Model A
Motor 324TSC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.924
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type WEG
Net weight 797.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power factor 1 0.88
Pressure rating for connection 150 lb
Pressure sensor N
Pump speed on which pump data are based 3532 rpm
Pump version B
Pumped liquid Water
Rated current 92.6/46.3 A
Rated flow 500 US gpm
Rated head 182.1 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version B

Motor Curves

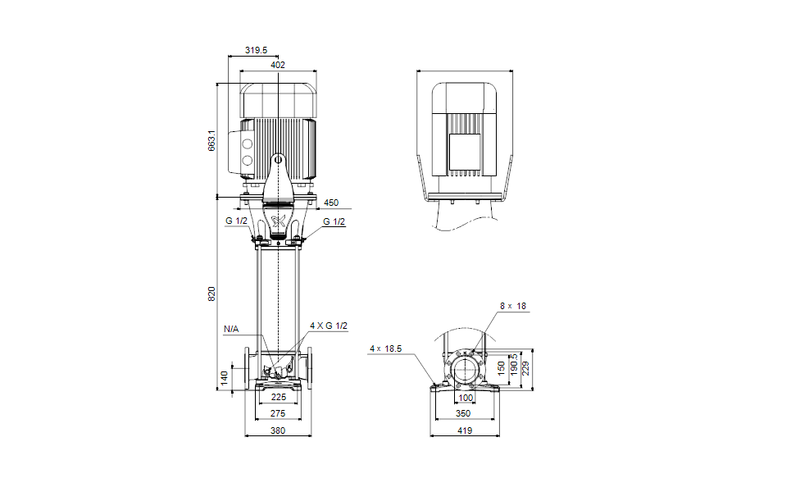

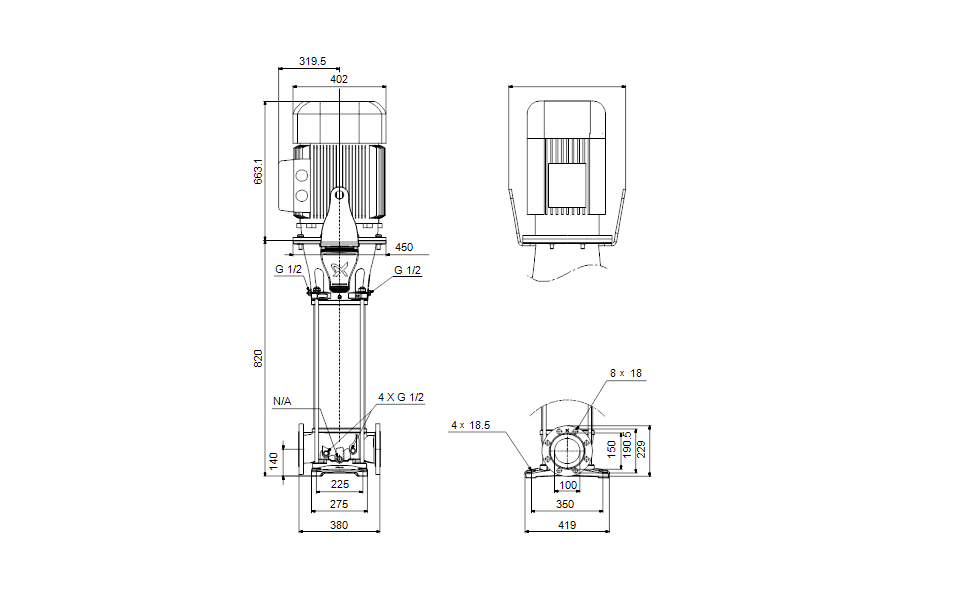

Dimensional Drawing

DWiring Diagram
